THEFT DETERRENT: ENGINE HOOD COURTESY SWITCH: INSTALLATION

INSTALLATION

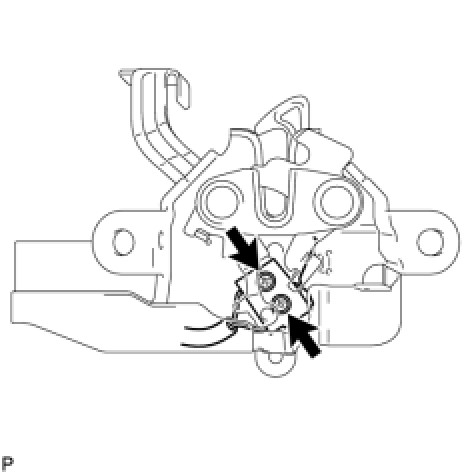

1. INSTALL ENGINE HOOD COURTESY SWITCH (for TMMK Made)





(a) Install the engine hood courtesy switch with the 2 screws.

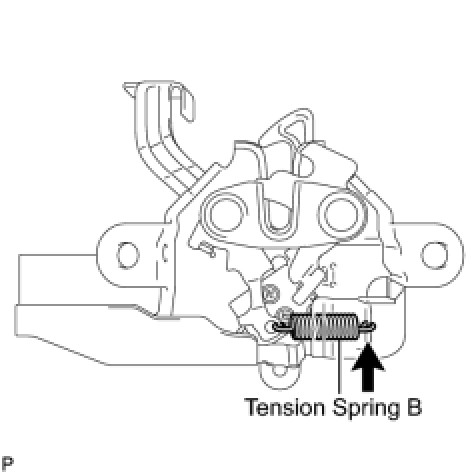

2. INSTALL HOOD LOCK TENSION SPRING B (for TMMK Made)





(a) Install the tension spring B.

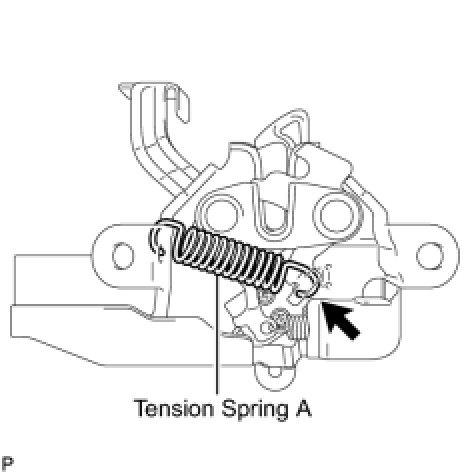

3. INSTALL HOOD LOCK TENSION SPRING A (for TMMK Made)





(a) Install the tension spring A.
4. INSTALL HOOD LOCK ASSEMBLY Installation
5. INSTALL HIGH PITCHED HORN ASSEMBLY Installation
6. INSTALL FRONT BUMPER ASSEMBLY (w/o Fog Light) Installation
7. INSTALL FRONT BUMPER ASSEMBLY (w/ Fog Light) Installation
8. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Installation
9. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) Adjustments
10. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
11. FOG LIGHT AIMING INSPECTION (w/ Fog Light) Adjustments
12. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
