Cursor or MAP Rotates When Vehicle Stopped

NAVIGATION: NAVIGATION SYSTEM: Cursor or Map Rotates when Vehicle Stopped

Cursor or Map Rotates when Vehicle Stopped

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONDITION

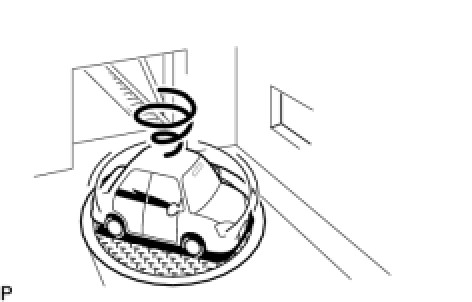

(a) Check with the customer if the vehicle has been turned by a turntable.
OK:
Vehicle has not been turned by turntable.
HINT: If the vehicle is turned on a turntable with the ignition switch on (IG), the system may store the angular velocity. As a result, the vehicle position cursor may deviate.

NG -- TURN IGNITION SWITCH ON (IG) WHEN VEHICLE IS COMPLETELY STOPPED
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
