Audio System (6 Speaker)

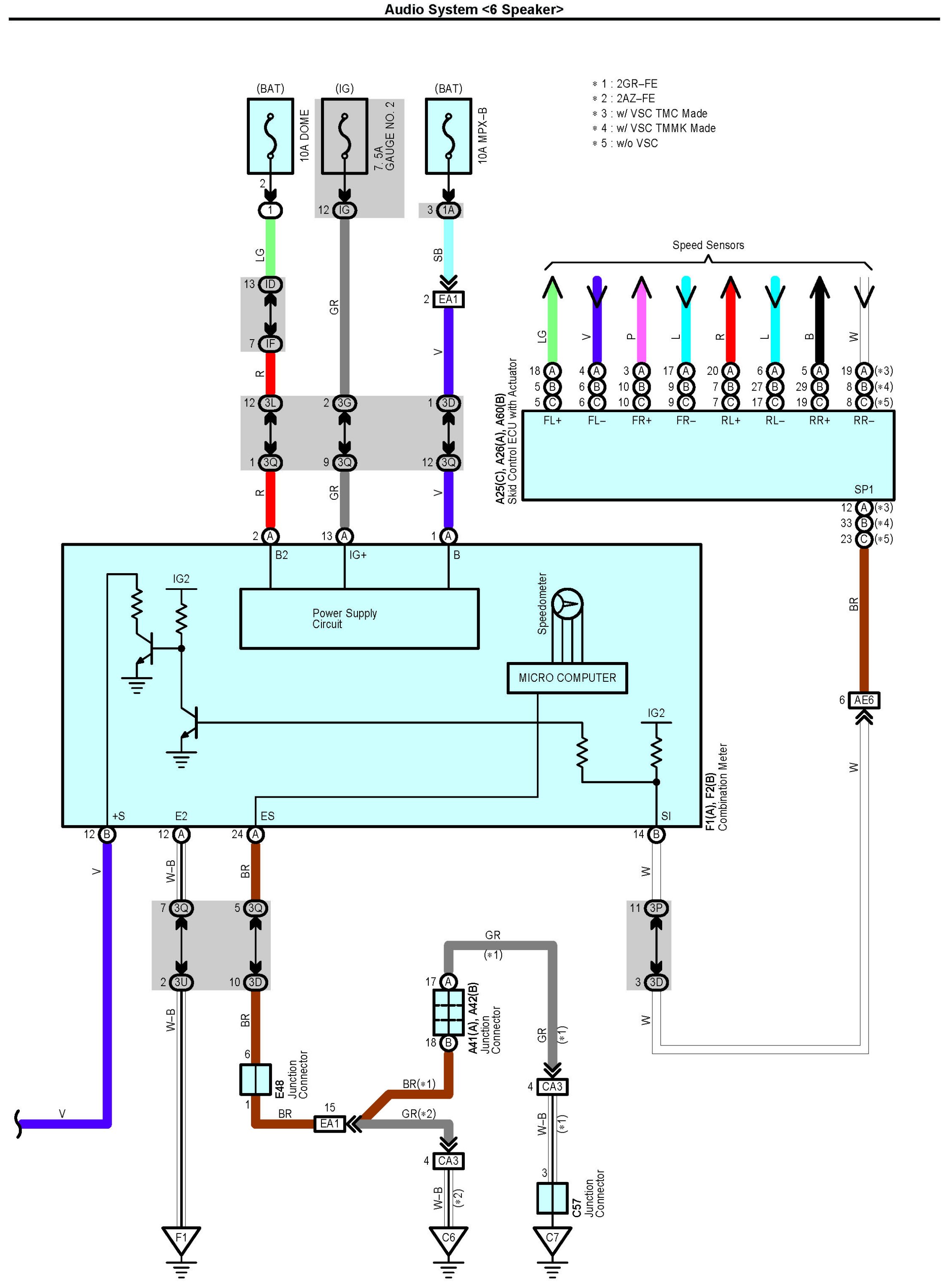

Audio System <6 Speaker> Part 1:

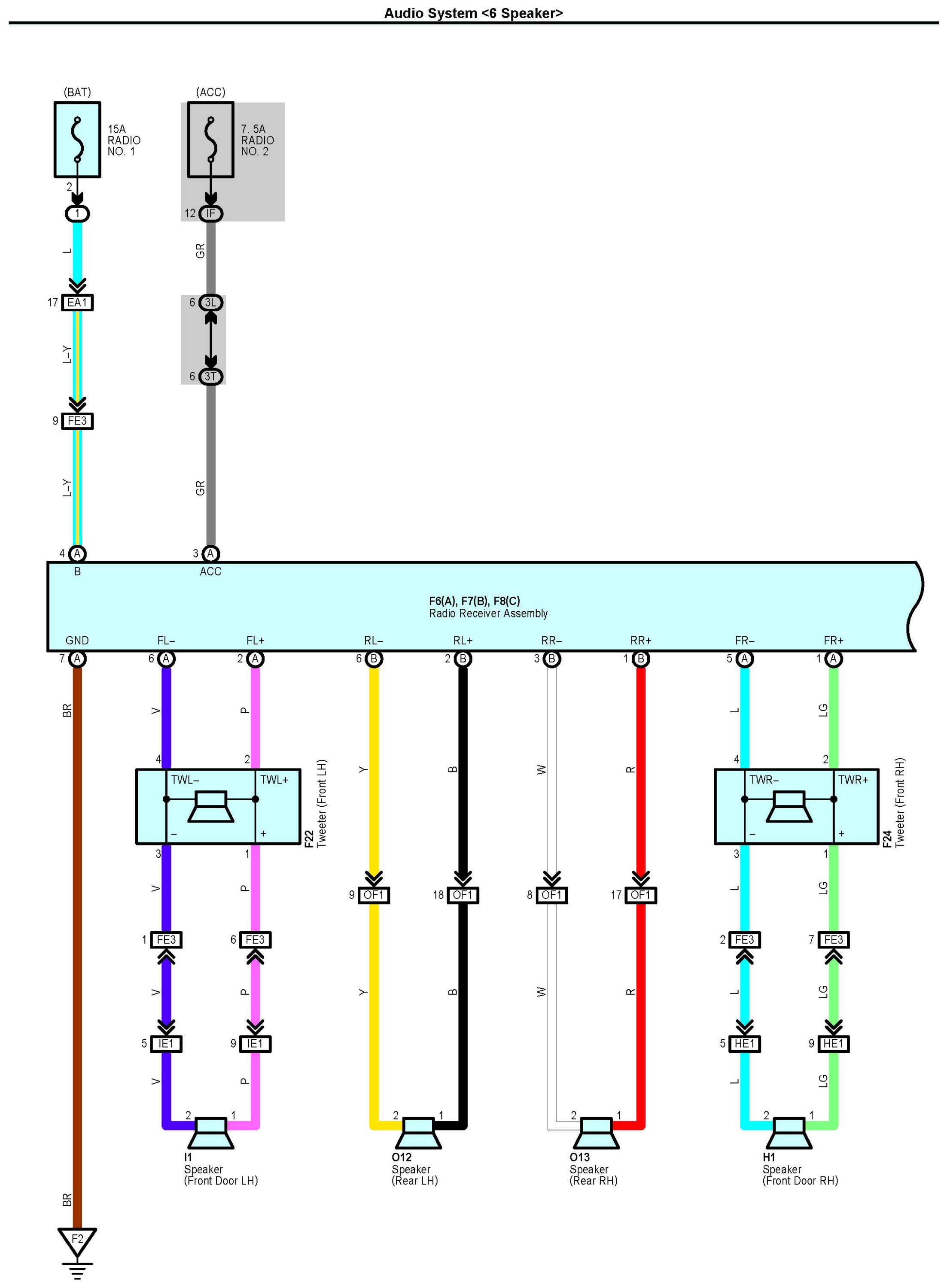

Audio System <6 Speaker> Part 2:

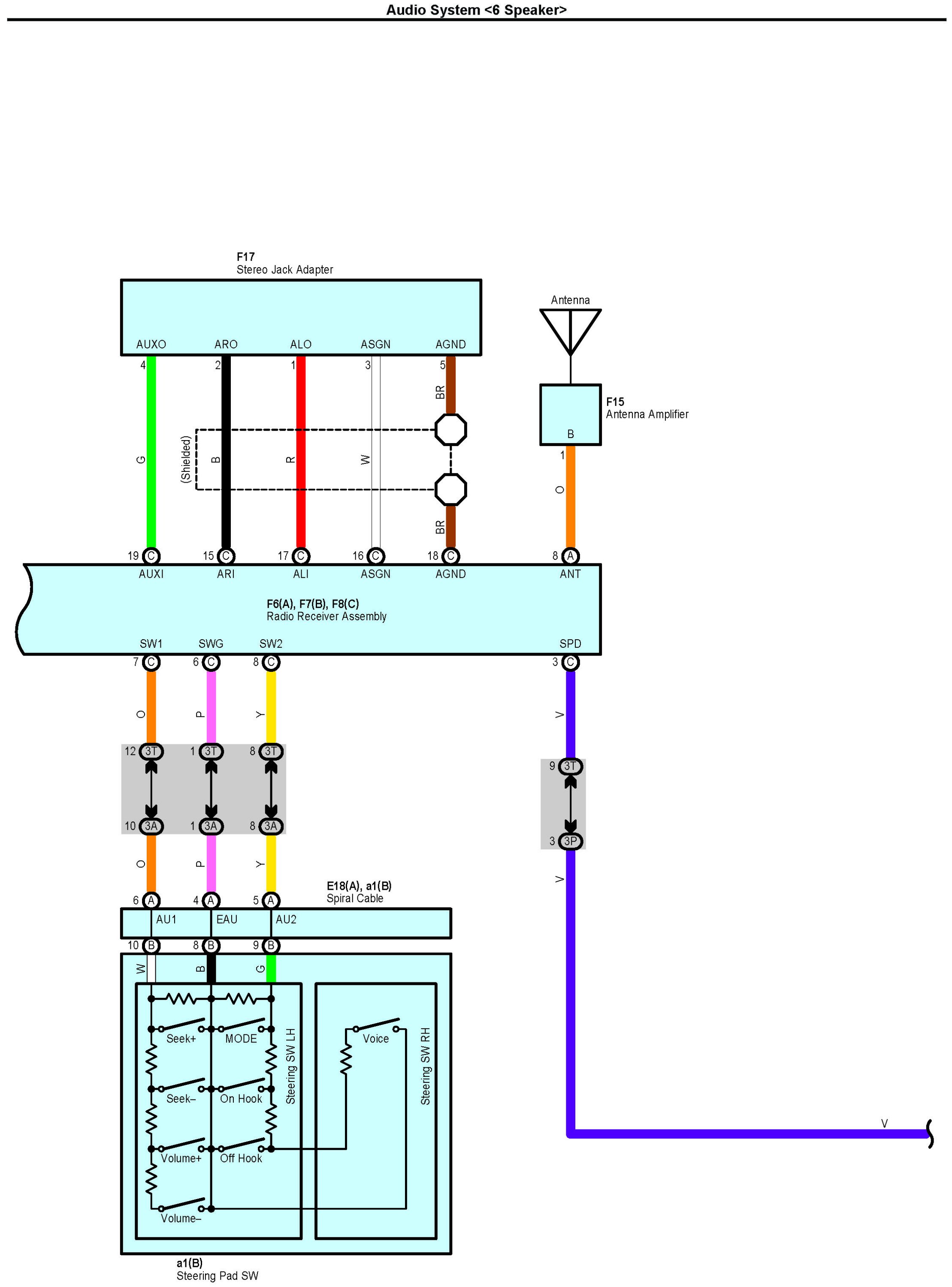

Audio System <6 Speaker> Part 3:

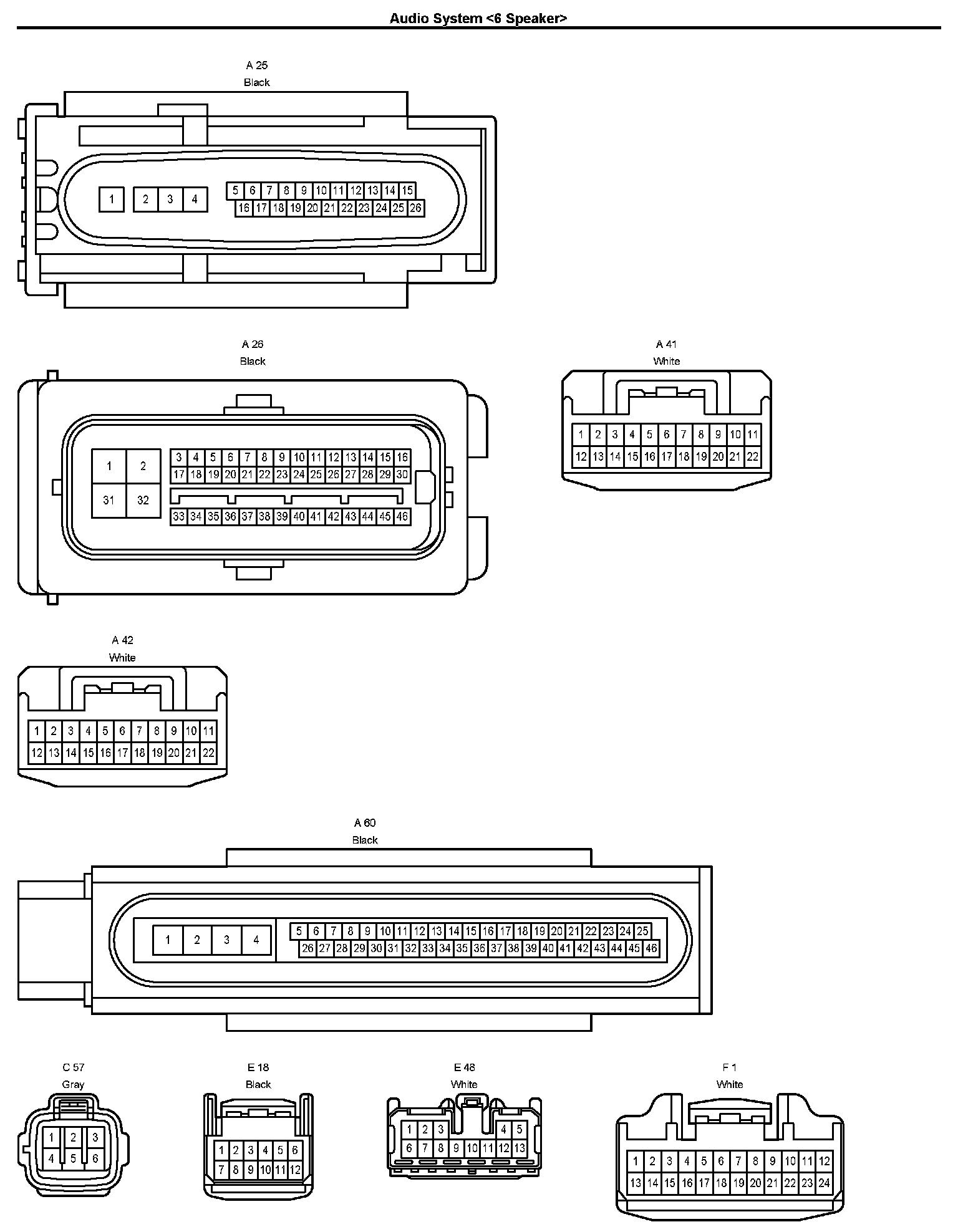

Connectors Part 1:

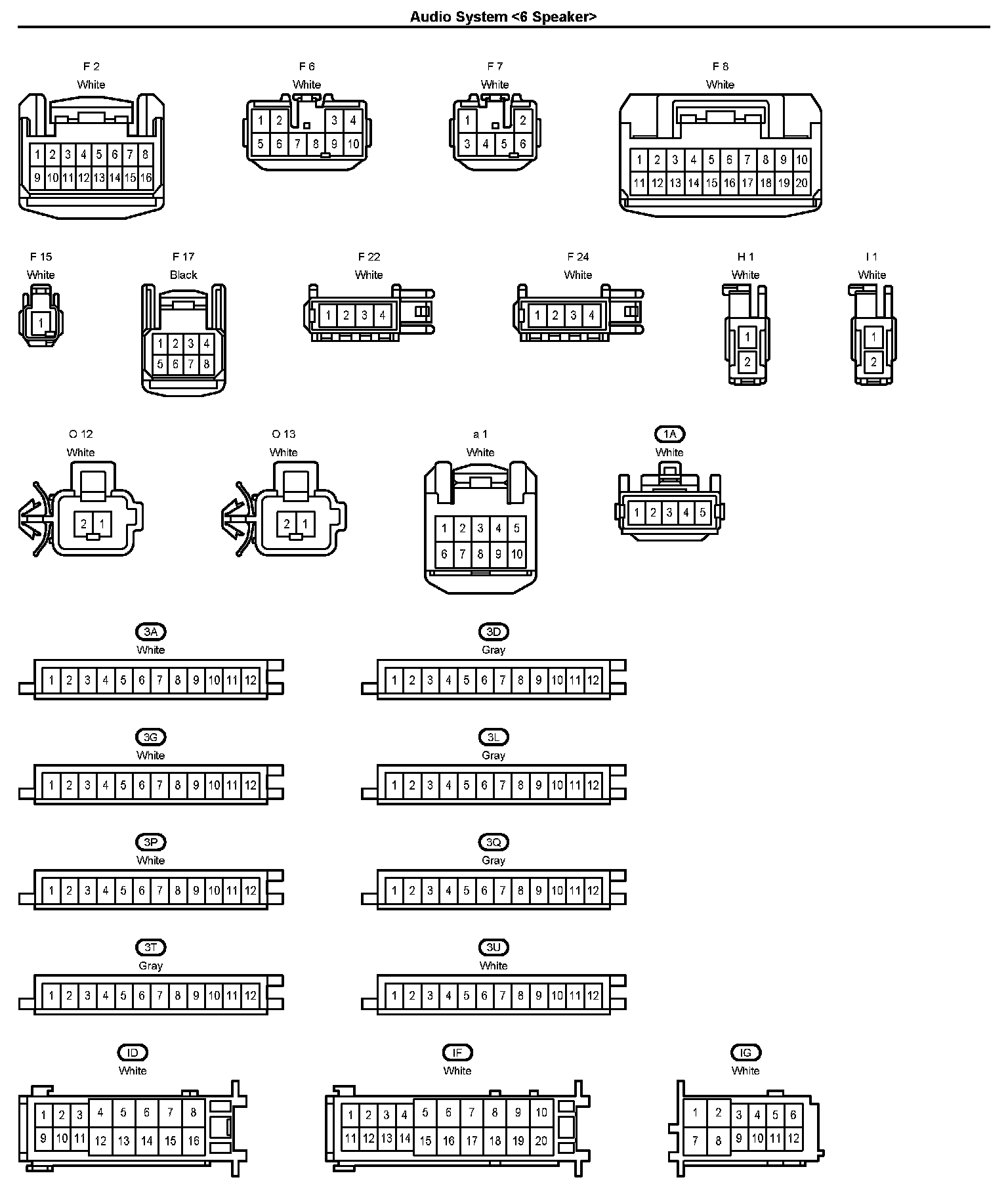

Connectors Part 2:

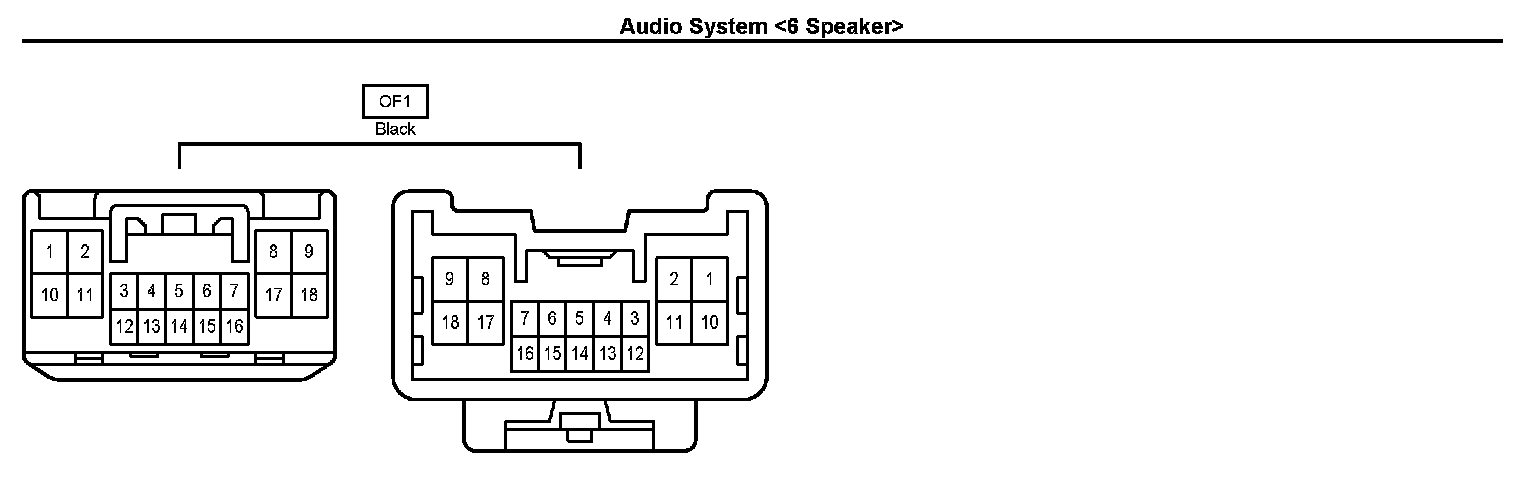

Connectors Part 3:

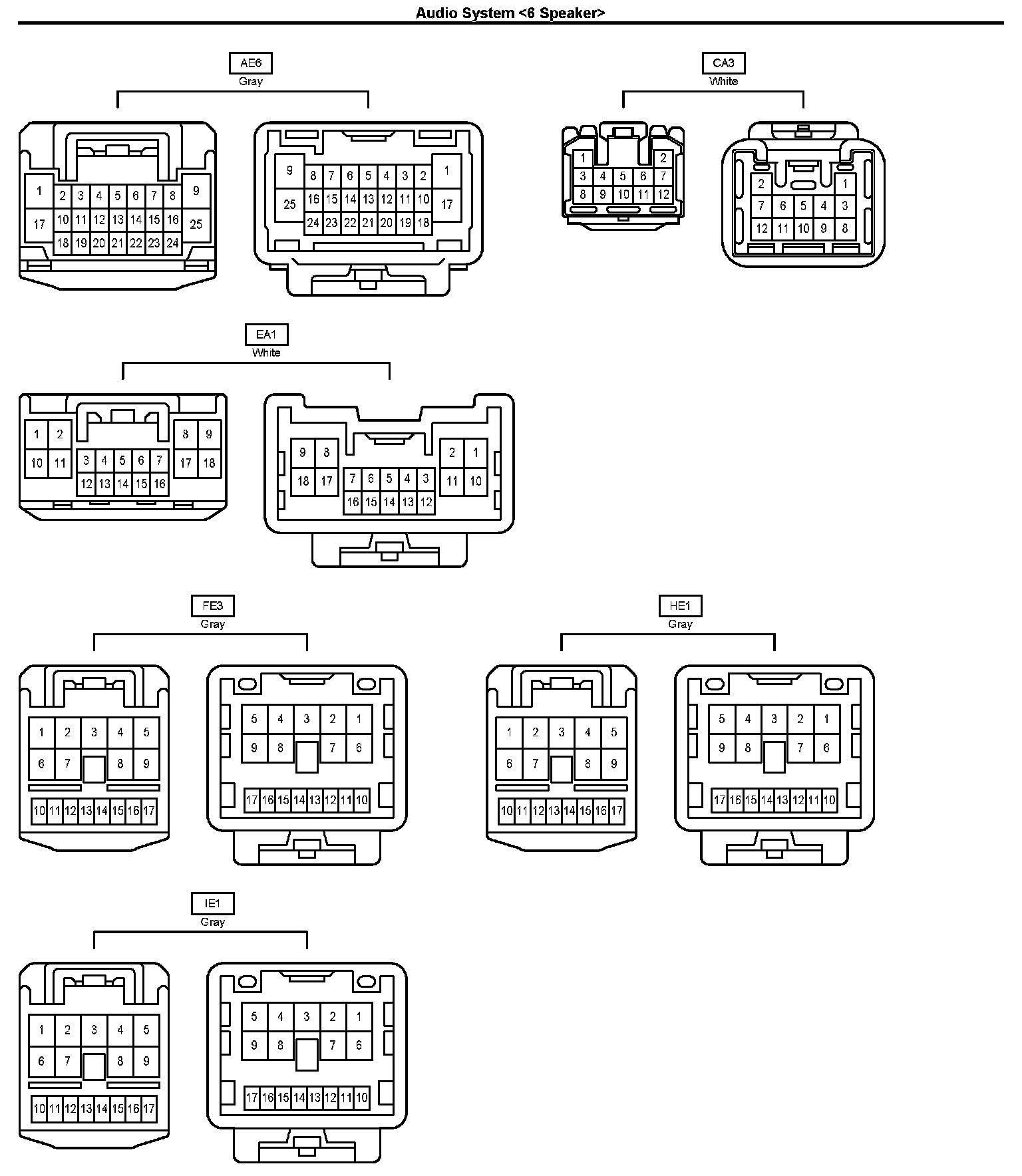

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
