Vehicle Speed Signal Circuit Between Radio Receiver and Combination Meter

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter

Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter

DESCRIPTION

This circuit is necessary for the ASL (Auto Sound Leveliser) built into the radio receiver.
Speed signals are received from the combination meter and used for the ASL.
The ASL function automatically adjusts the sound data in order to enable hearing the clear audio sound even when vehicle noise increases (as vehicle noise increases, the volume is turned up etc.).
HINT:
- A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter. The signal is changed to a pulse signal at the transistor in the combination meter. Each ECU controls the respective system based on the pulse signal.
- If a short occurs in an ECU, all systems in the diagram below will not operate normally.

WIRING DIAGRAM

1. 2AZ-FE





2. 2GR-FE





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OPERATION OF SPEEDOMETER
(a) Drive the vehicle and check if the function of the speedometer on the combination meter is normal.
OK:
Actual vehicle speed and the speed indicated on the speedometer are the same.
HINT: The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

NG -- CHECK COMBINATION METER
OK -- Continue to next step.
2. INSPECT RADIO RECEIVER

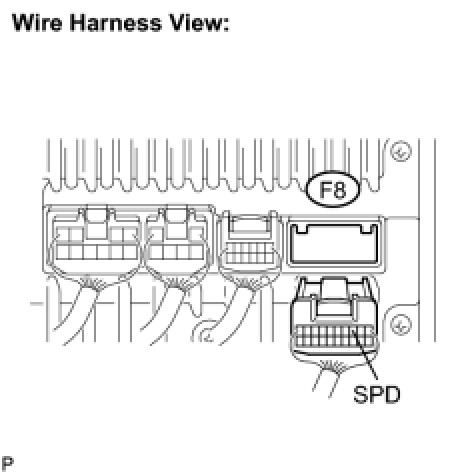

(a) Disconnect the radio receiver connector F8.
(b) Measure the voltage.
(1) Jack up either one of the drive wheels.
(2) Move the shift lever to the neutral position.
(3) Turn the ignition switch on (IG).





(4) Measure the voltage between terminal SPD of the wire harness connector and body ground when the drive wheels are turned slowly.
OK:
Voltage pulses as shown in the illustration.
OK -- REPLACE RADIO RECEIVER
NG -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (COMBINATION METER - RADIO RECEIVER)

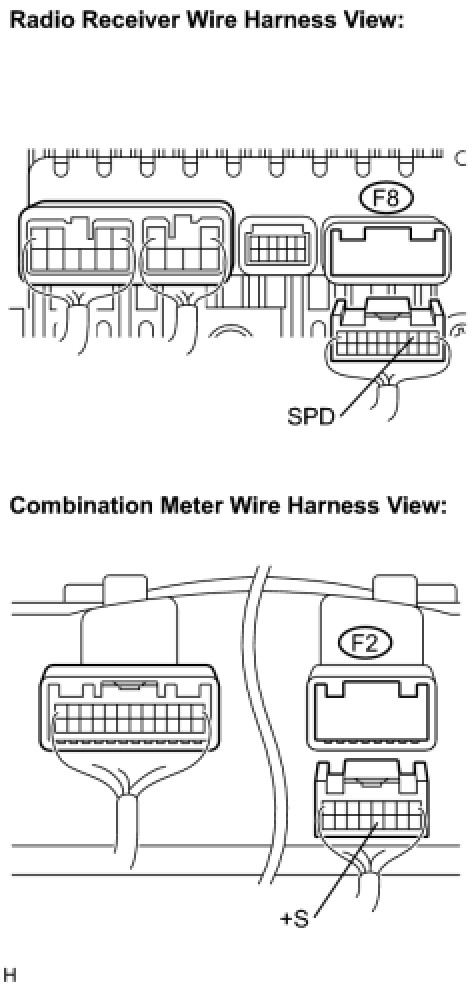

(a) Disconnect the radio receiver connector F8 and combination meter connector F2.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: If the resistance between terminal SPD and body ground is less than 10 kOhms, there may be a short in a wire harness, connector, or an ECU that is connected to the SPD signal wire.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
OK -- REPLACE COMBINATION METER
