Removal

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY





(a) Disconnect the rod.





(b) Disconnect the connector.

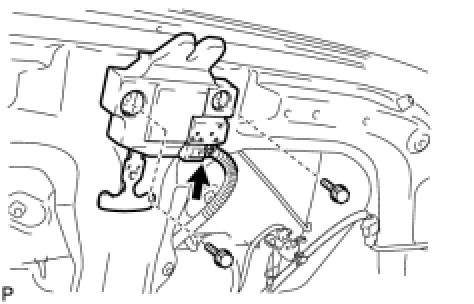

(c) Remove the 2 bolts and luggage compartment door lock assembly.
