Power Door Lock Control System

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)





(a) Disconnect the E6, E7, IO, IK, IM, ID, IA, IF, IJ, and E9 J/B and ECU connectors.

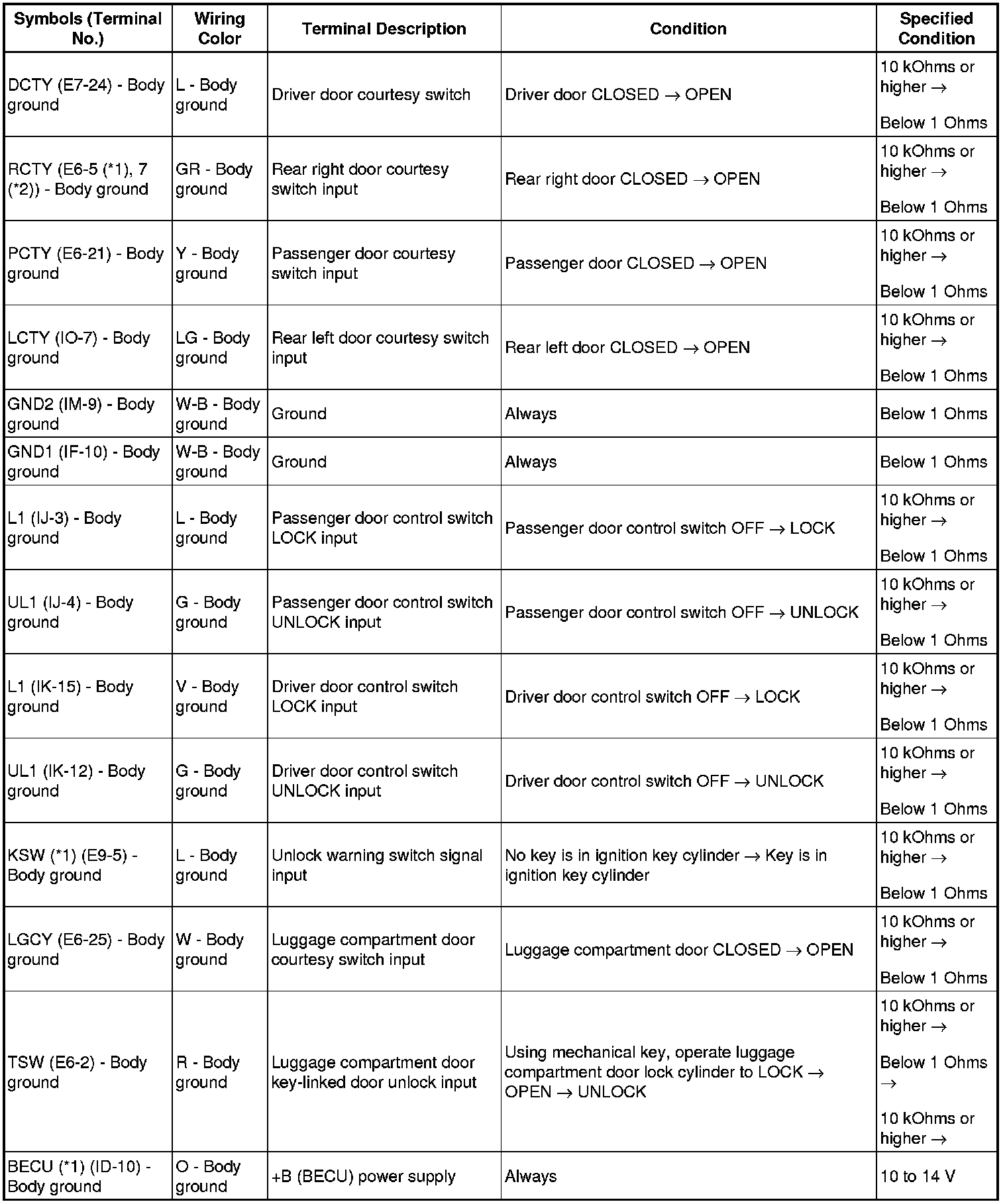

(b) Measure the voltage and resistance according to the value(s) in the table below.





*1: w/o Smart Key System
*2: w/ Smart Key System
If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the J/B and ECU connectors.

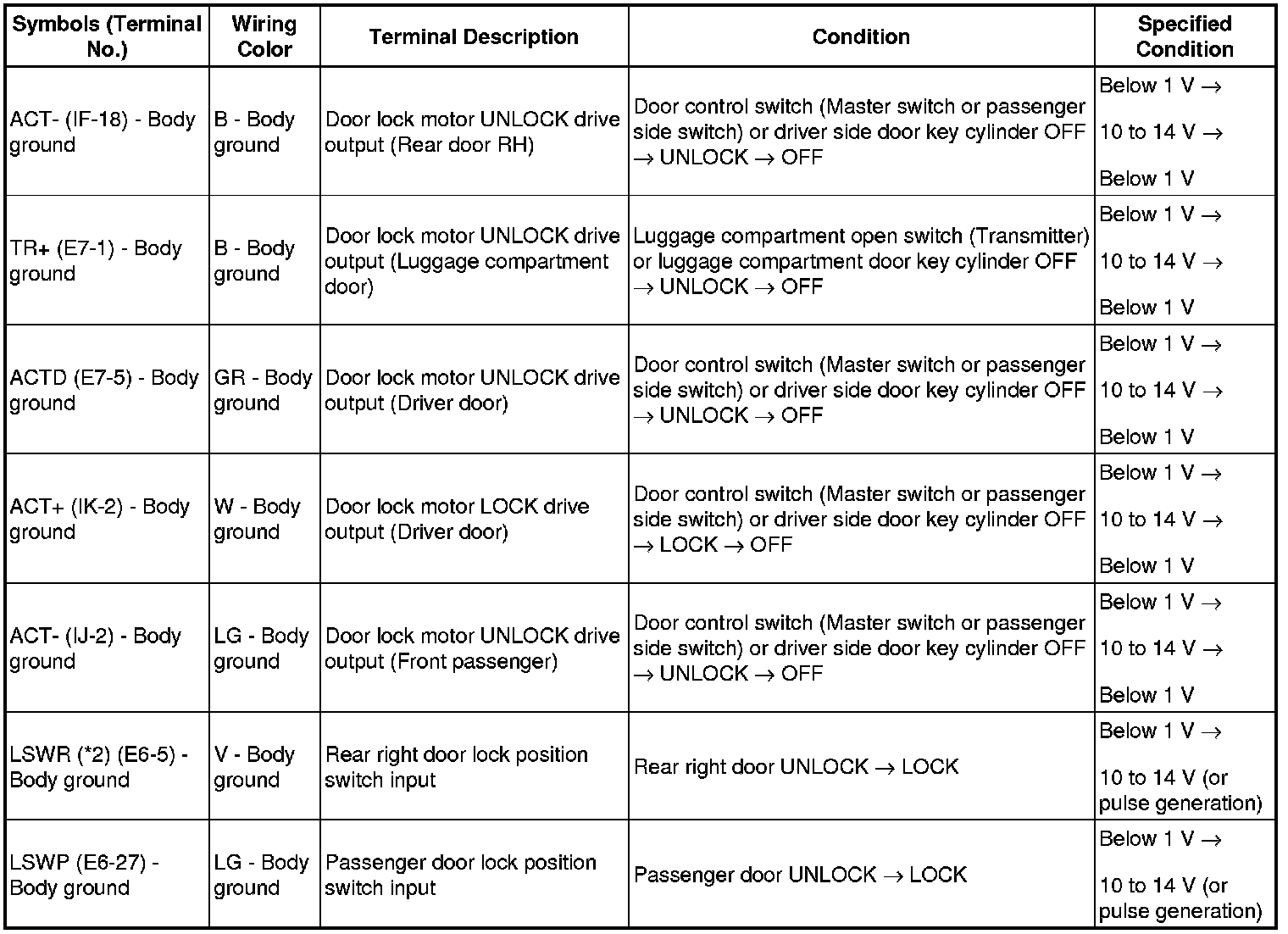

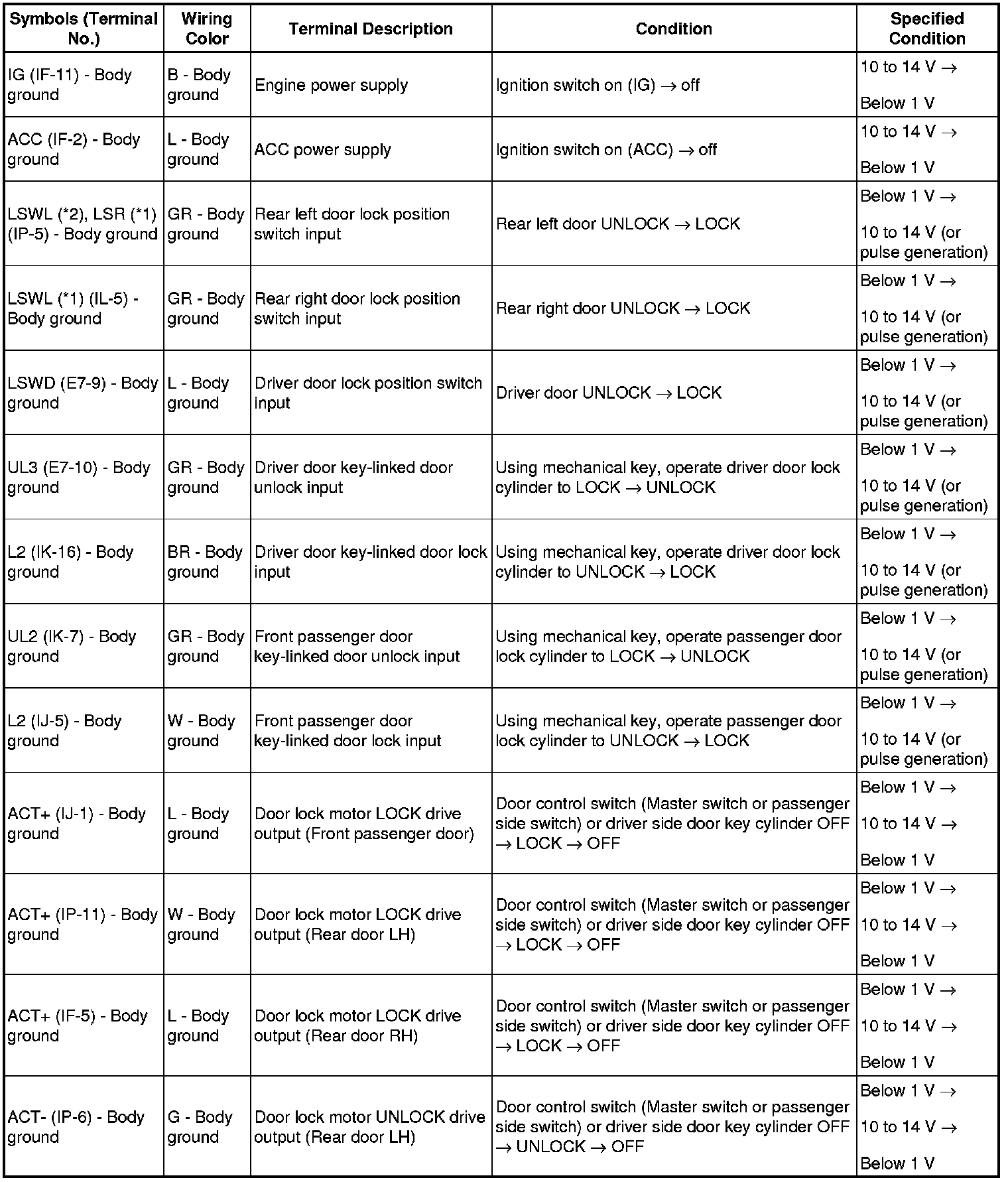

(d) Measure the voltage according to the value(s) in the table below.









*1: w/o Smart Key System
*2: w/ Smart Key System
If the result is not as specified, the main body ECU (instrument panel J/B) may have a malfunction.
