Power Door Lock Control System

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. READ DATA LIST
HINT: Using Techstream Data List allows switch, sensor, actuator, and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.

(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus: Body Electrical / Main Body / Data List.
(e) Read the Data List according to the display on the tester.

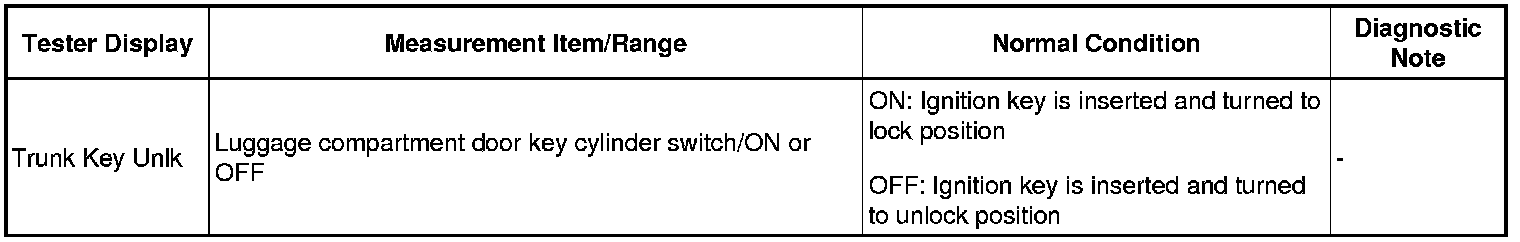

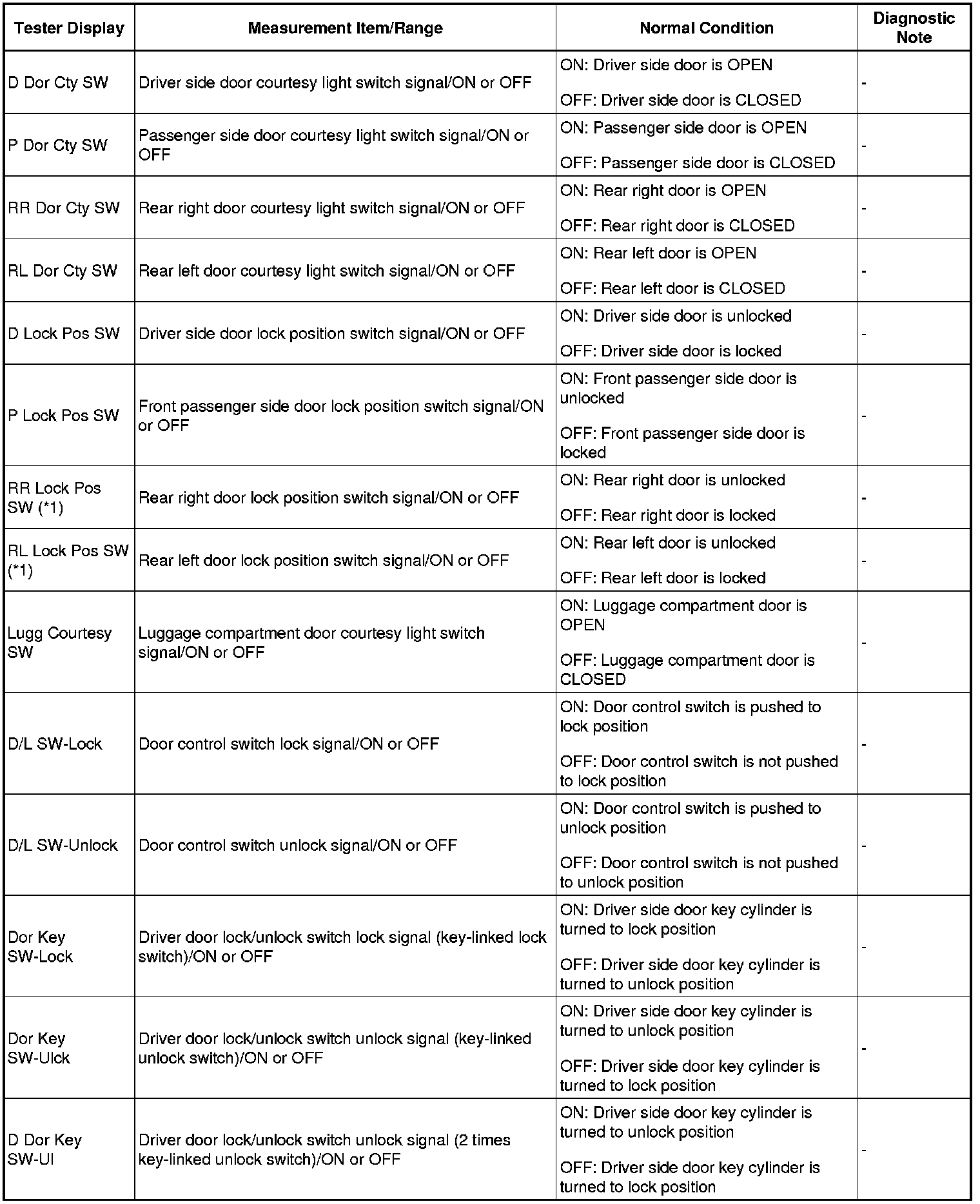

Main Body:









*1: w/ Smart Key System, w/o Smart Key System with Theft Deterrent System
2. PERFORM ACTIVE TEST
HINT: Performing Techstream Active Test allows relays, VSVs, actuators, and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.

(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus: Body Electrical / Main Body / Active Test.
(e) Perform the Active Test according to the display on the tester.

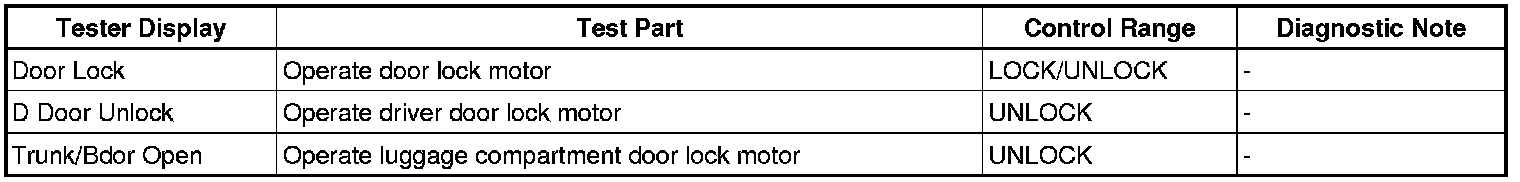

Main Body:
