Outer Rear View Mirror

MIRROR: OUTER REAR VIEW MIRROR: INSPECTION

INSPECTION

1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH





(a) Inspect outer mirror motor operation.

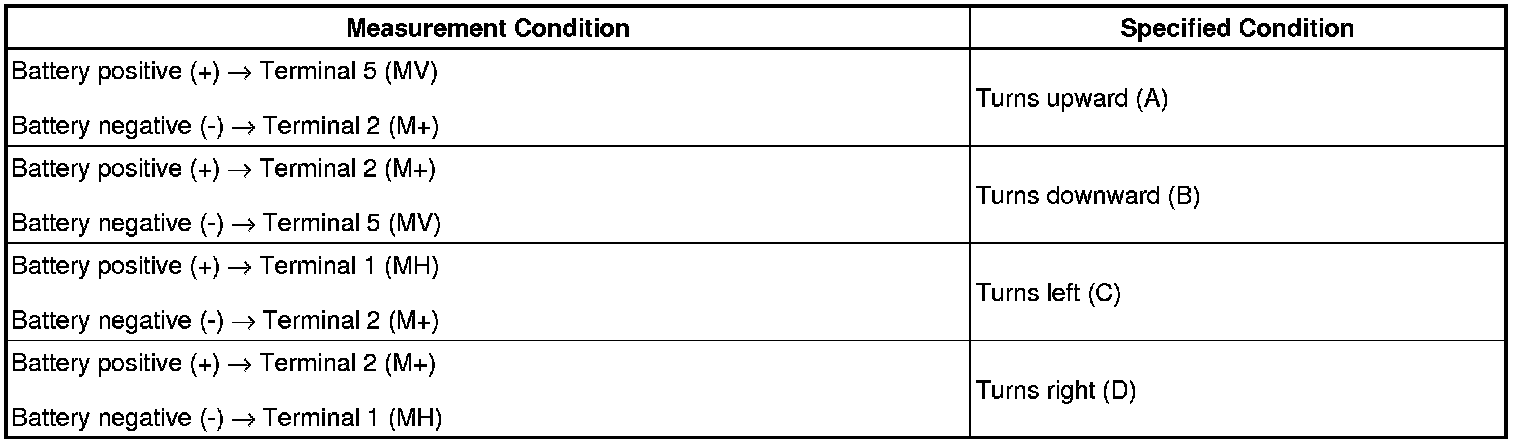

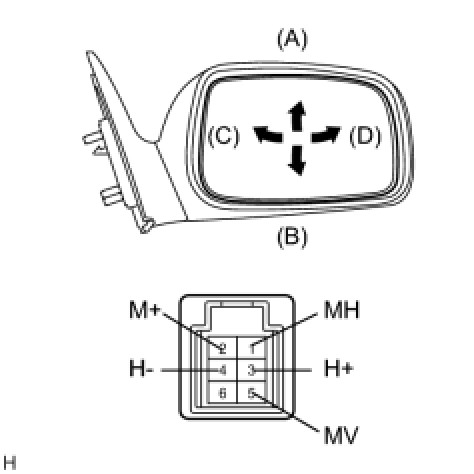

(1) Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.
Standard:






(b) Inspect outer mirror heater operation.

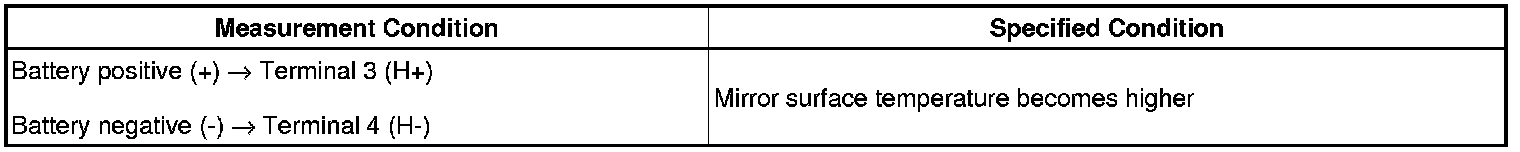

(1) Apply battery voltage and check operation of the mirror face, as shown in the table below.
Standard:






2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH





(a) Inspect outer mirror motor operation.
(1) Remove the outer rear view mirror assembly.

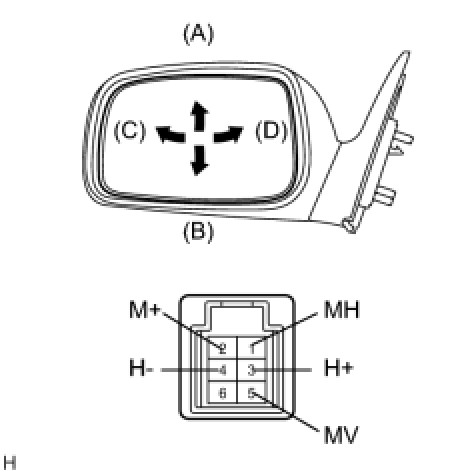

(2) Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.
Standard:






(b) Inspect outer mirror heater operation.
(1) Apply battery voltage and check operation of the mirror face, as shown in the table below.
Standard:
