Electrical Diagrams

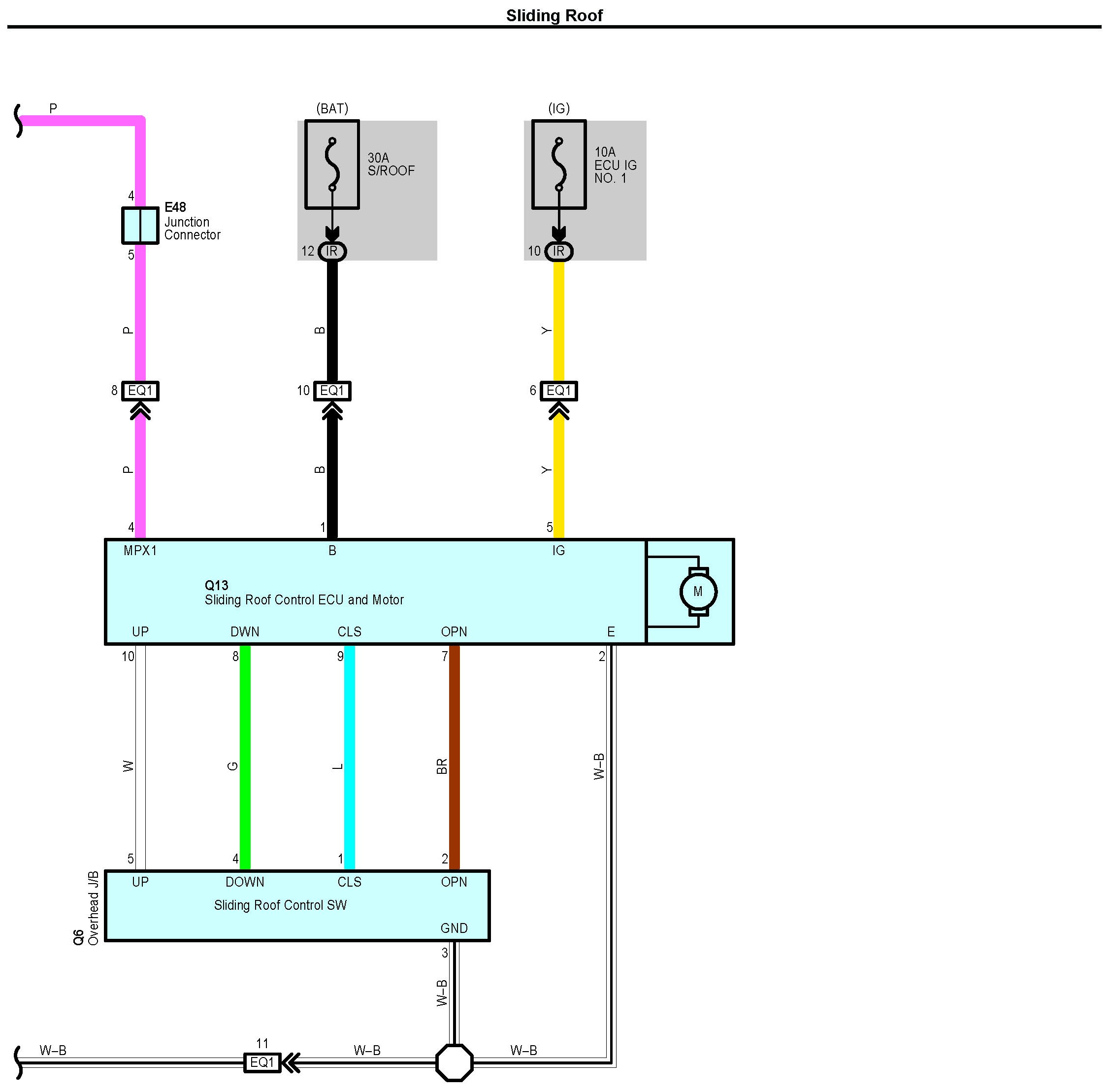

Sliding Roof part 1:

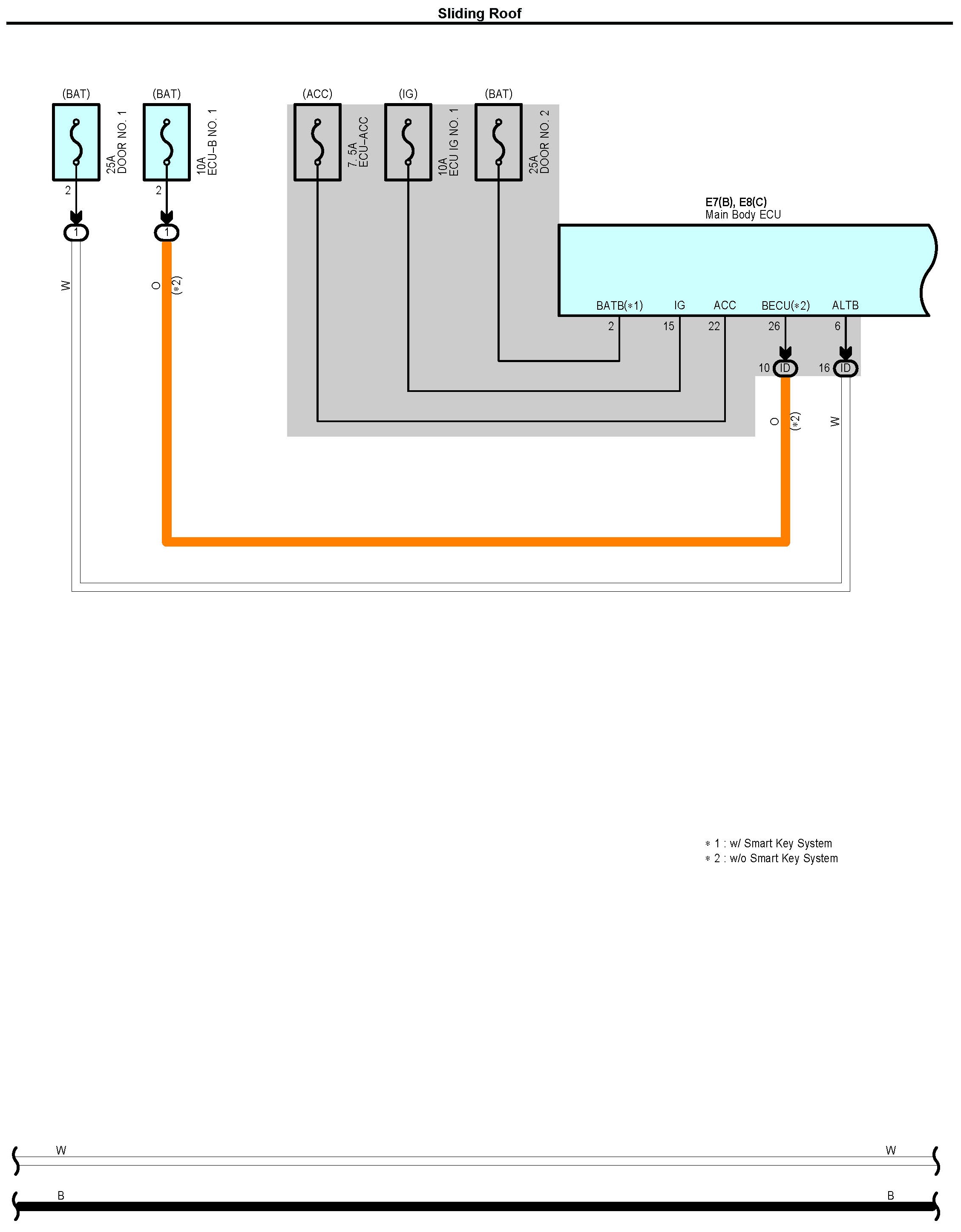

Sliding Roof part 2:

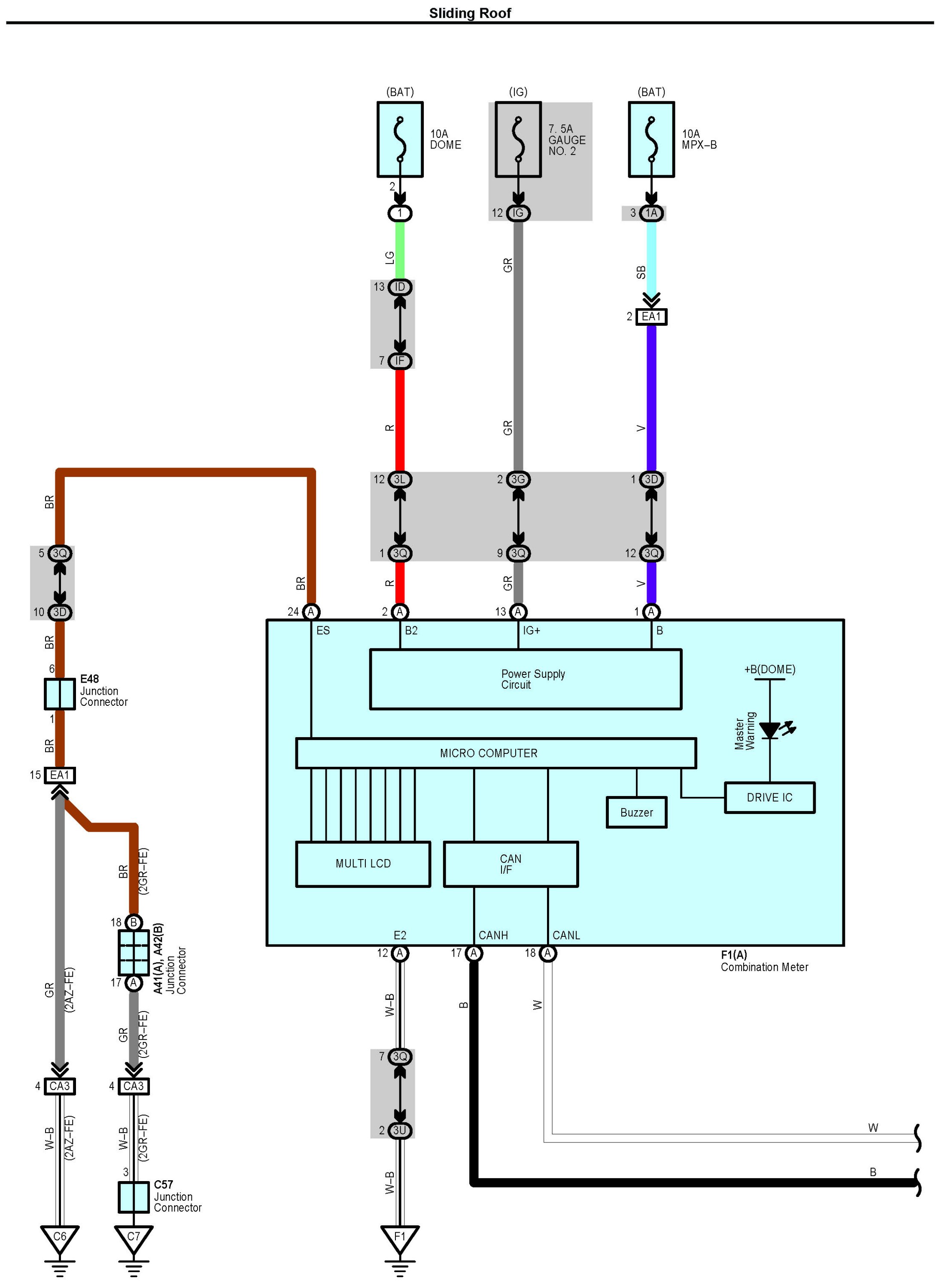

Sliding Roof part 3:

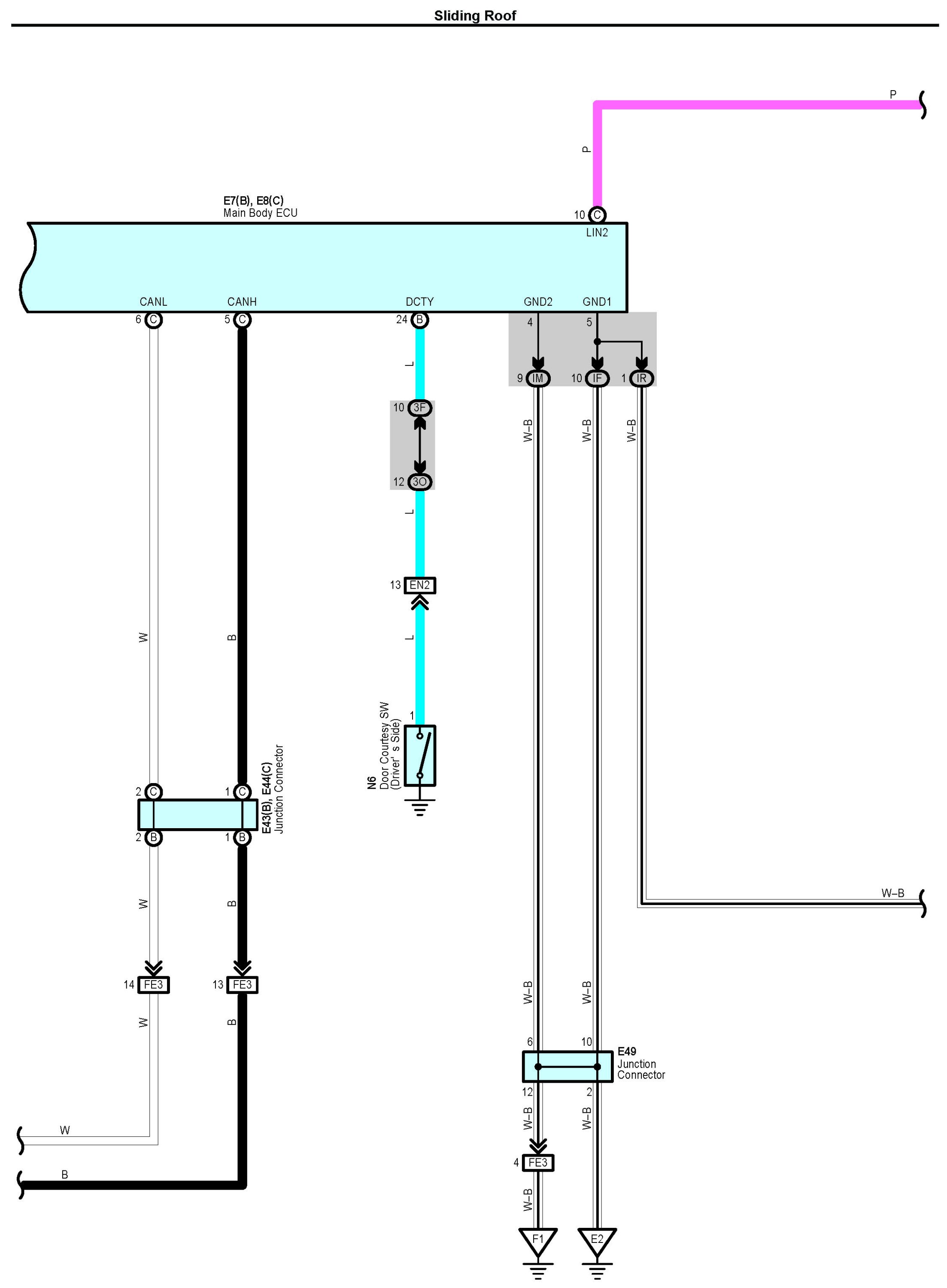

Sliding Roof part 4:

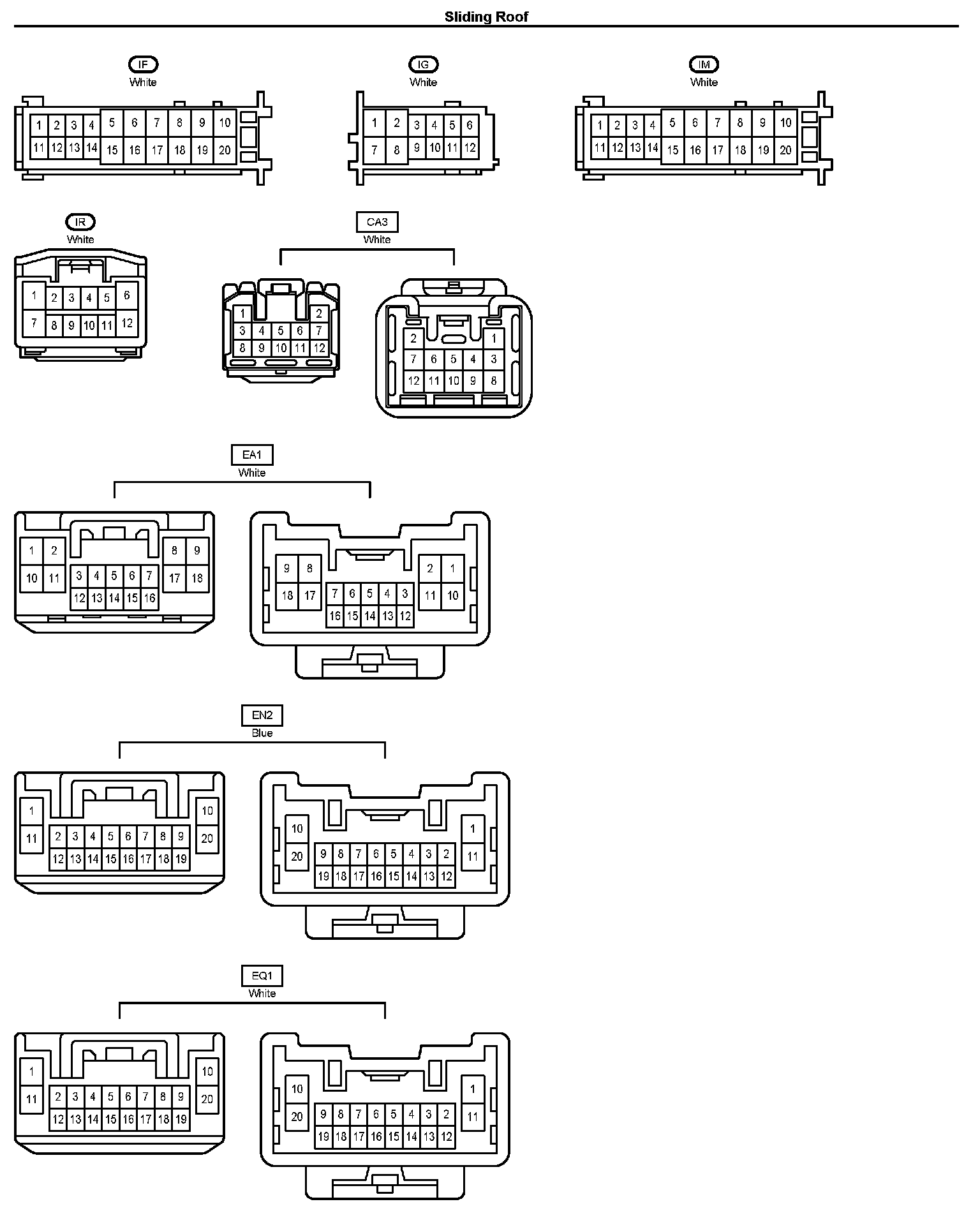

Connectors Part 1:

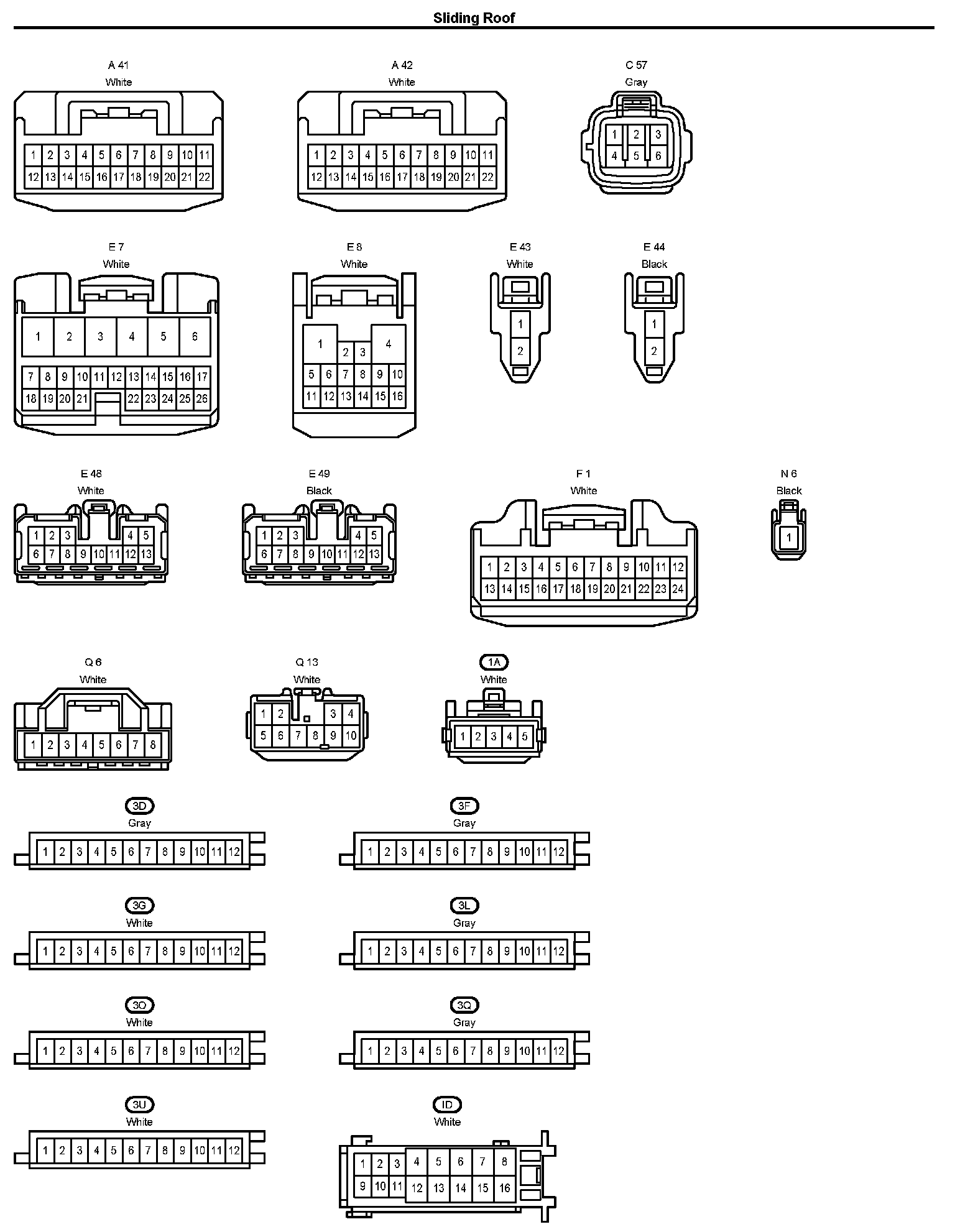

Connectors Part 2:

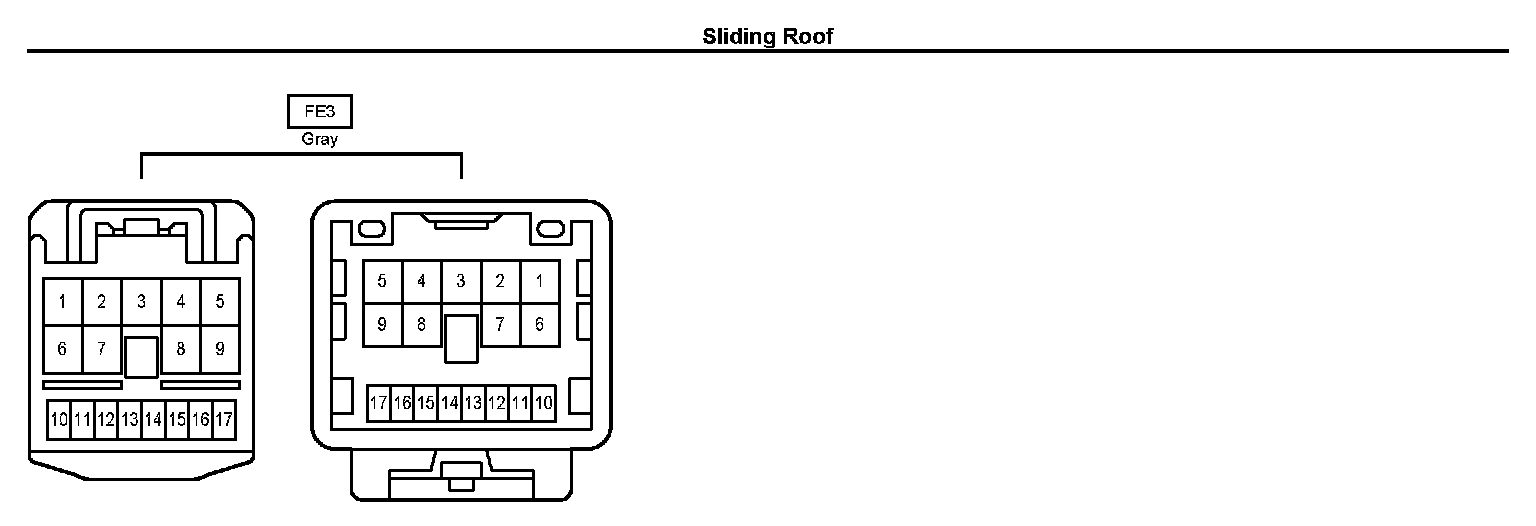

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
