Audible Warning Device

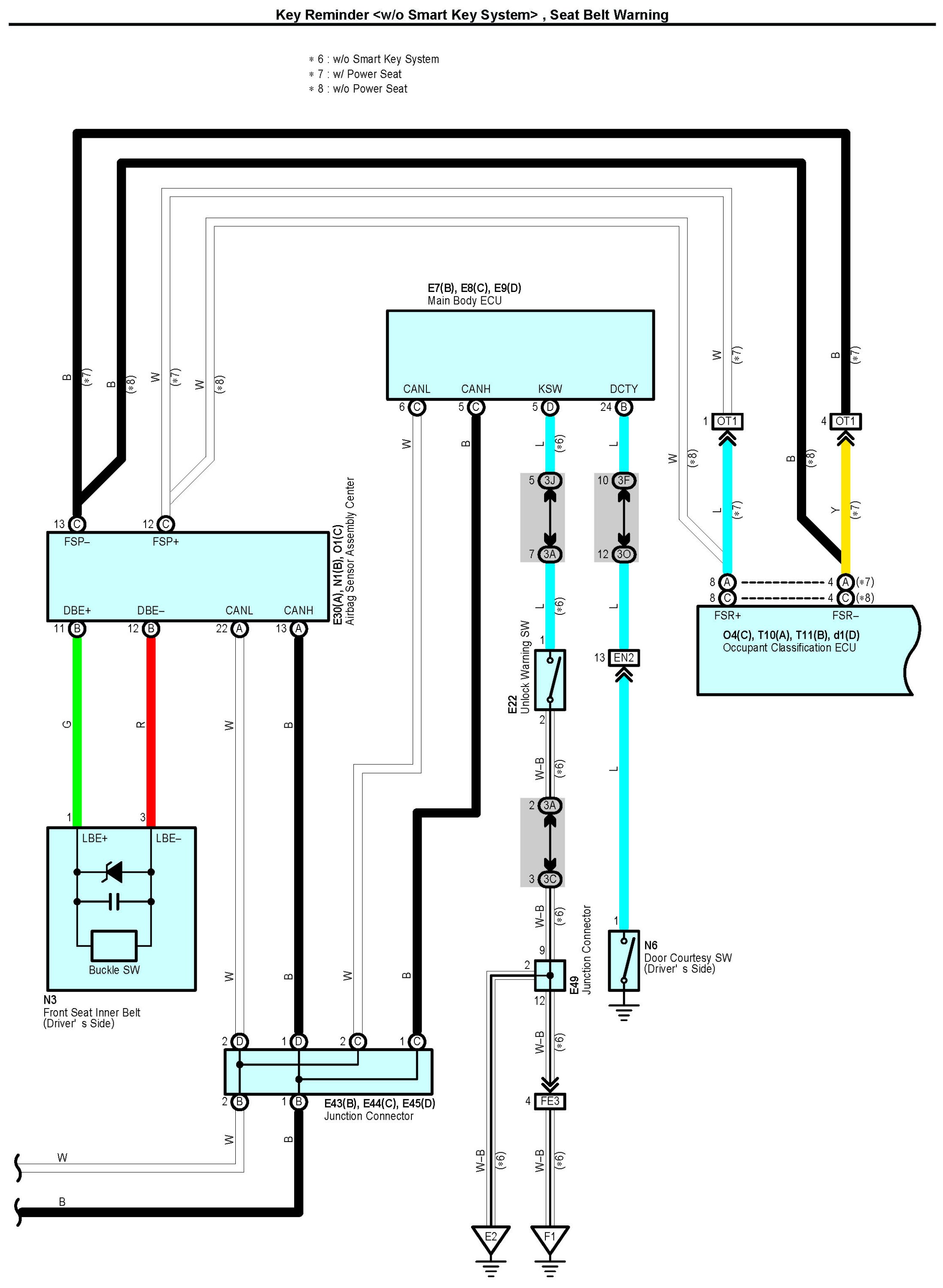

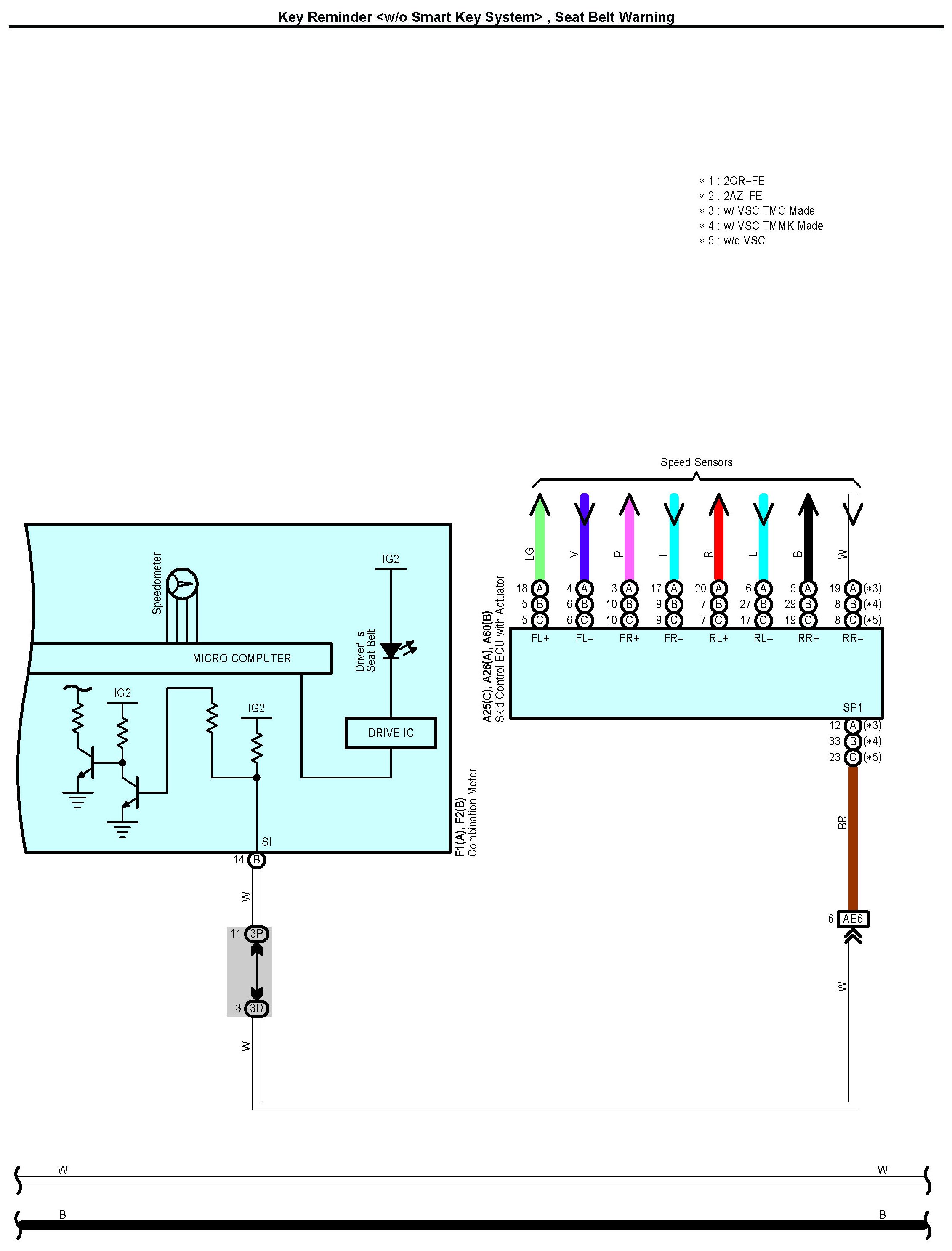

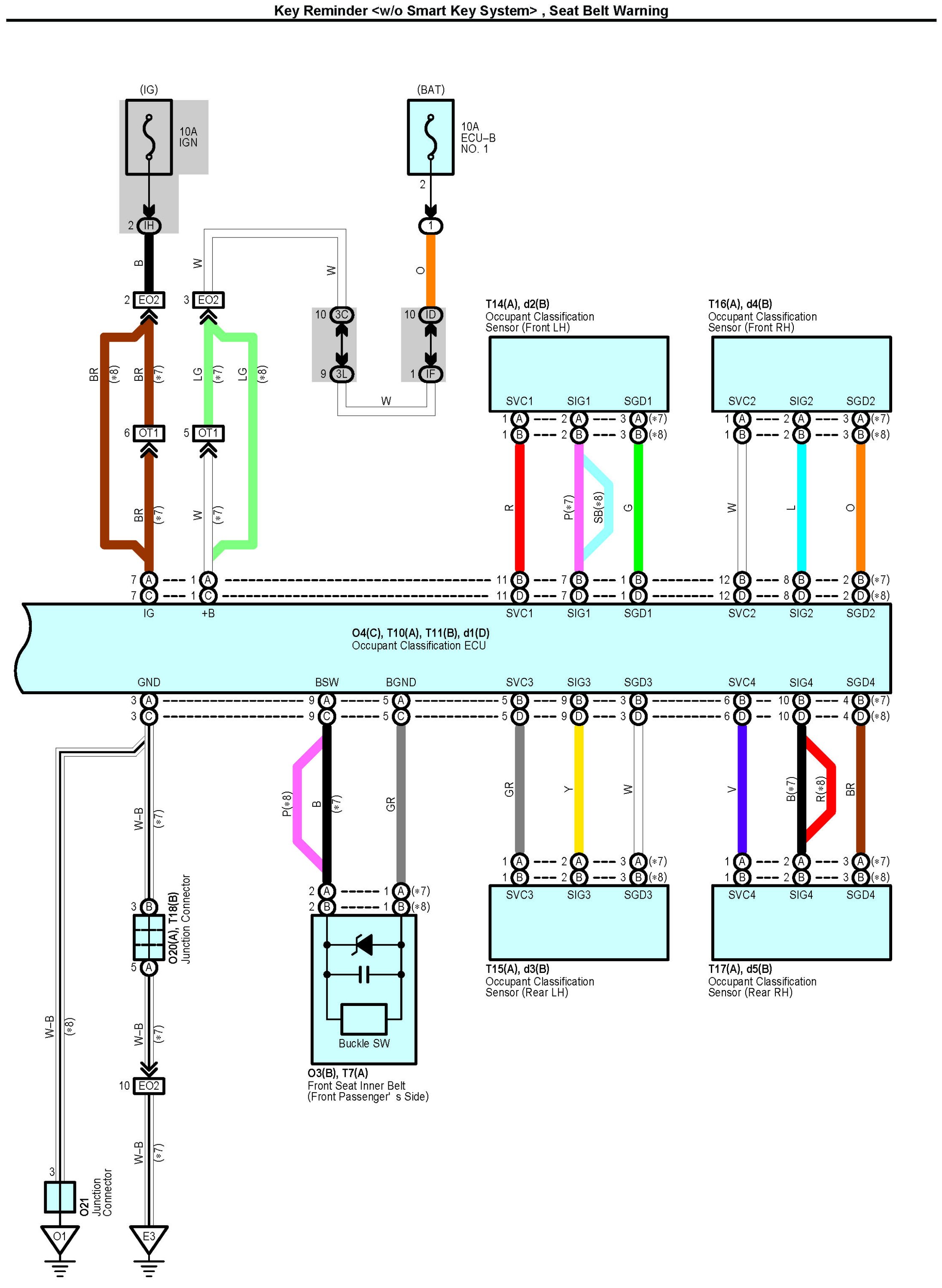

Key Reminder <w/o Smart Key System>, Seat Belt Warning Part 1:

Key Reminder <w/o Smart Key System>, Seat Belt Warning Part 2:

Key Reminder <w/o Smart Key System>, Seat Belt Warning Part 3:

Key Reminder <w/o Smart Key System>, Seat Belt Warning Part 4:

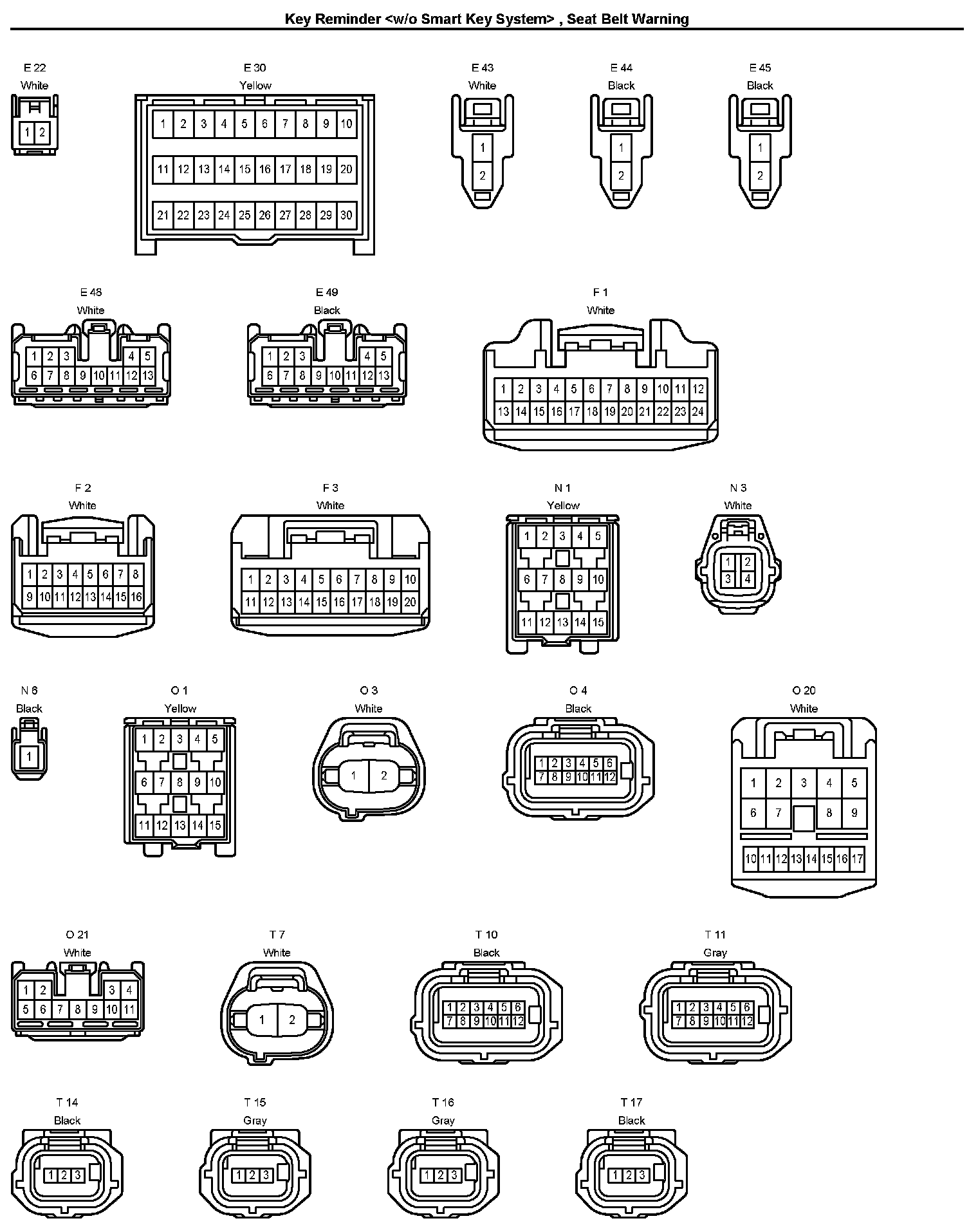

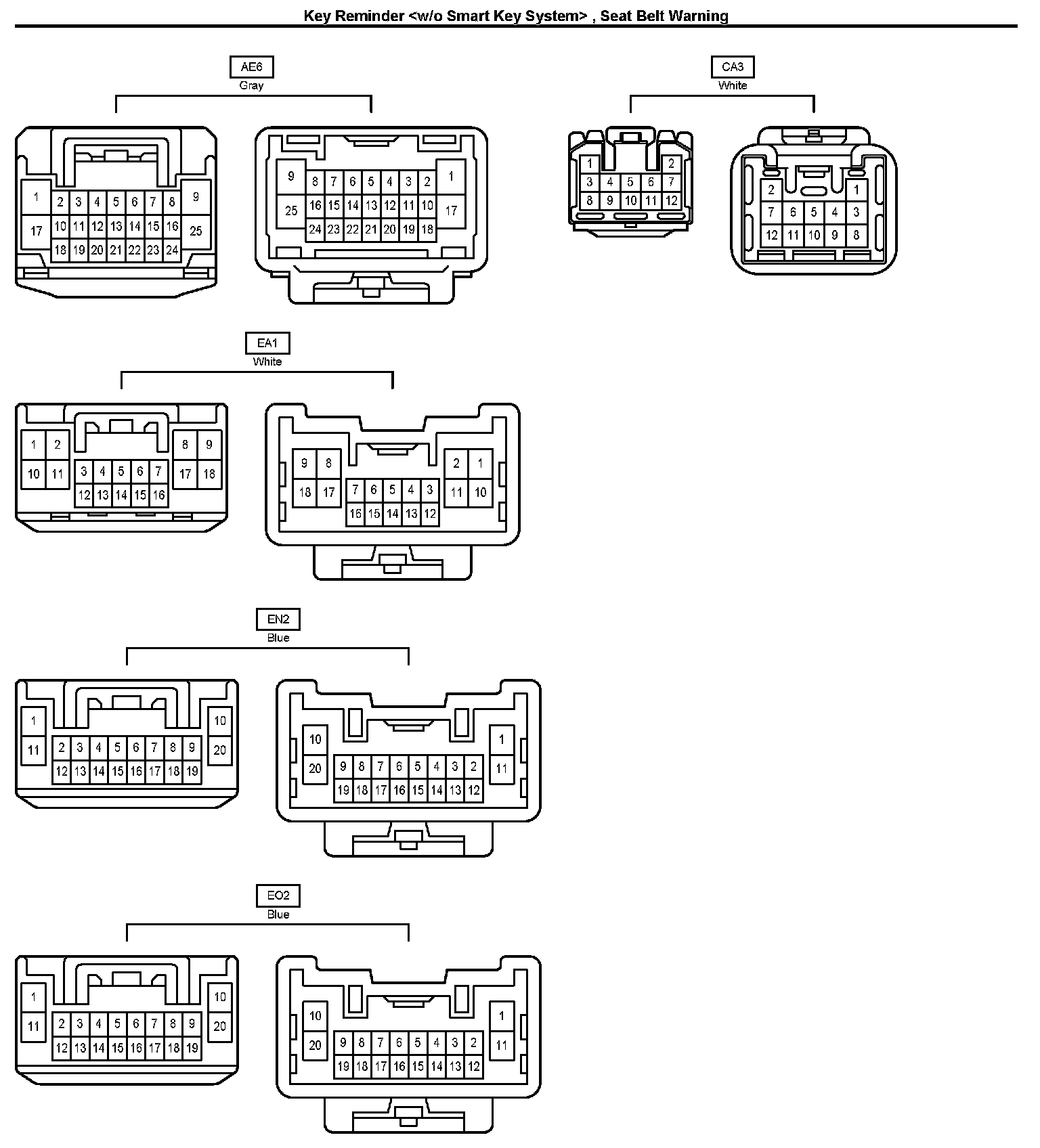

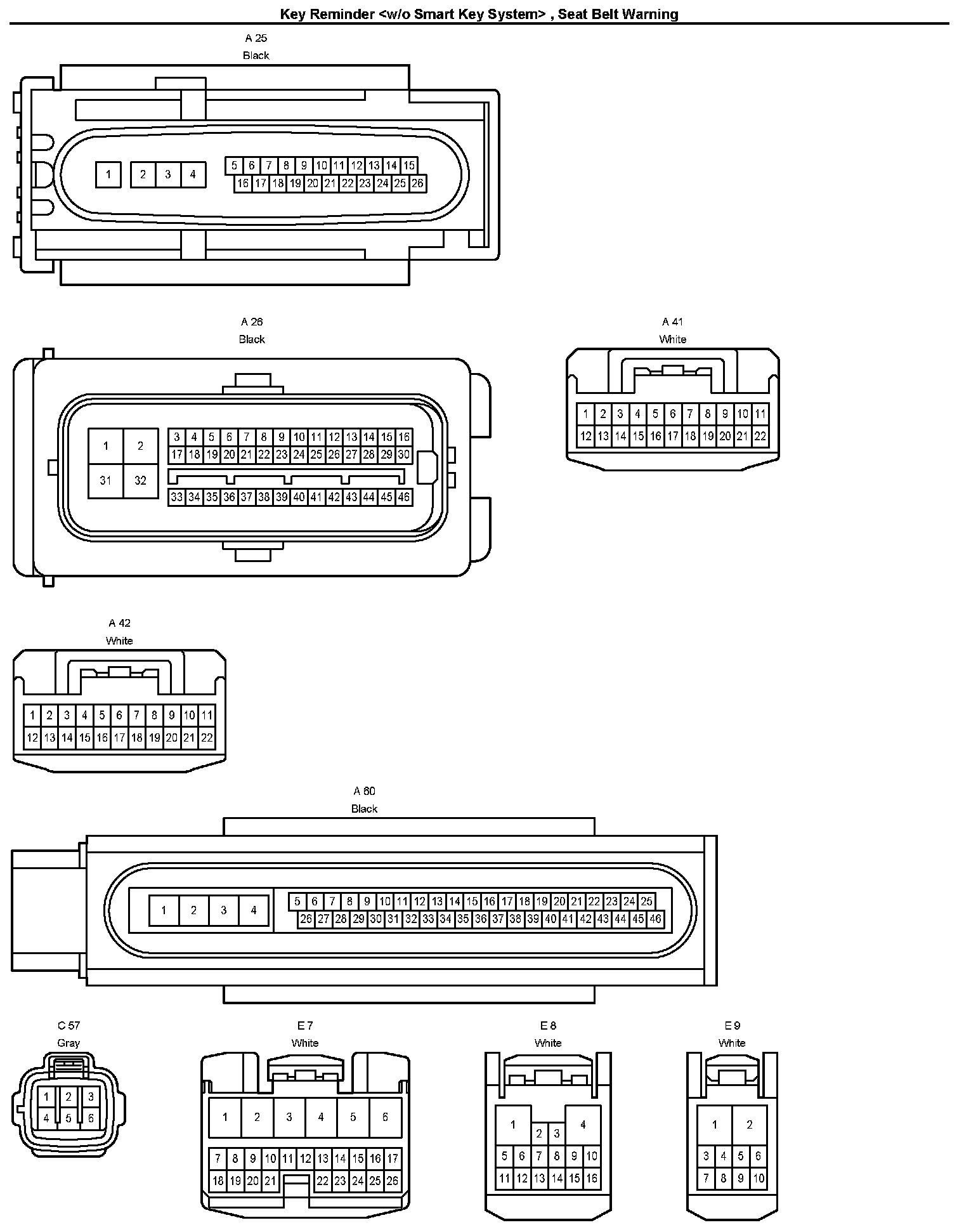

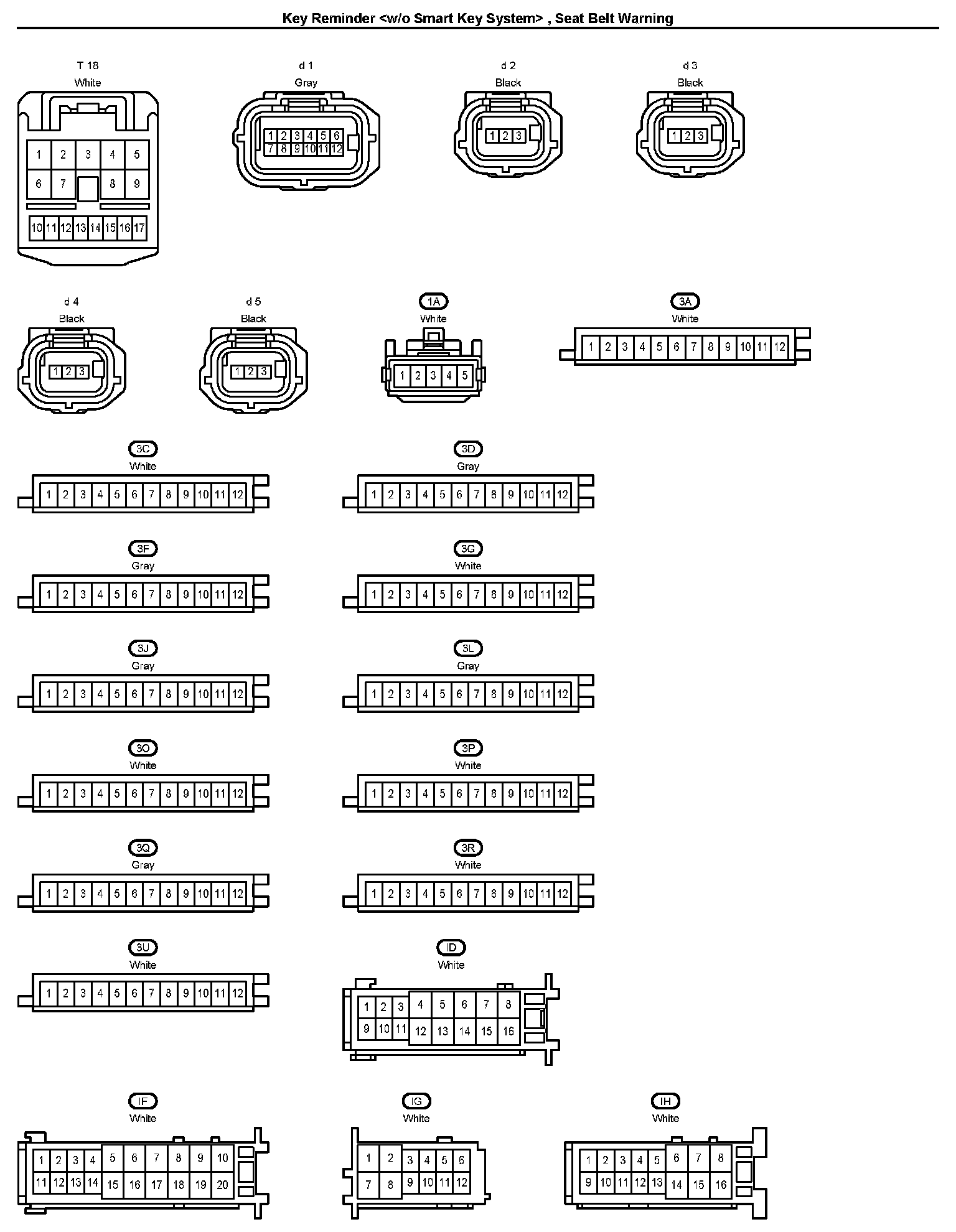

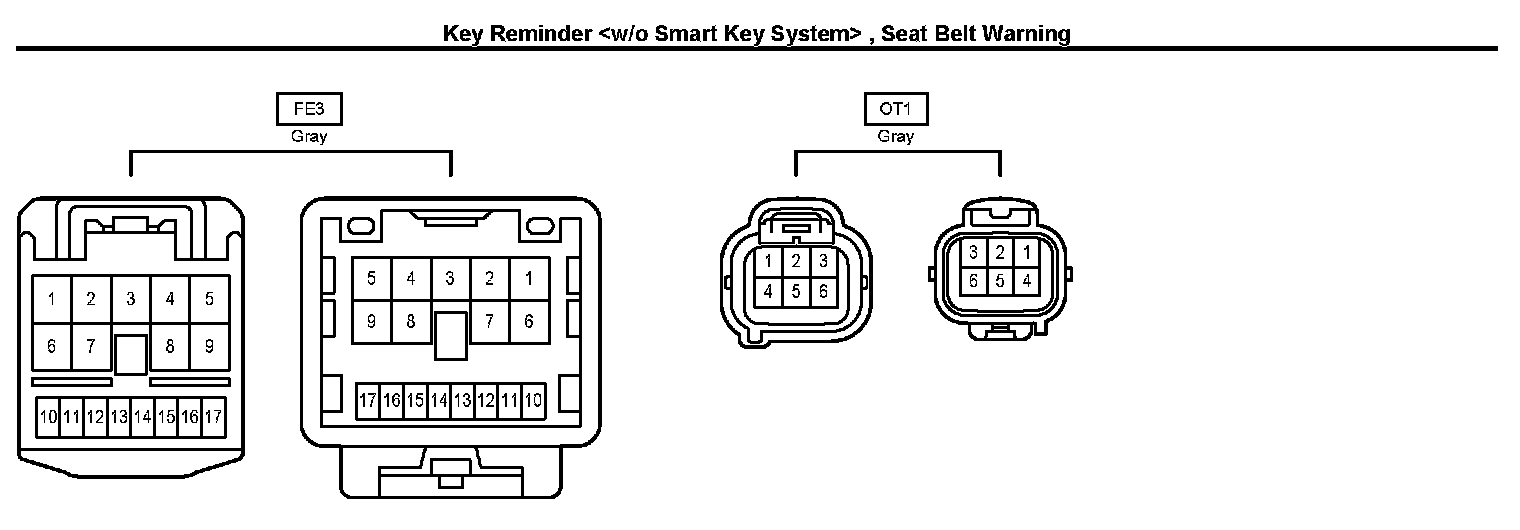

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
