2GR-FE ENGINE MECHANICAL: ENGINE FRONT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL TIMING CHAIN CASE OIL SEAL





(a) Apply MP grease to a new oil seal lip.

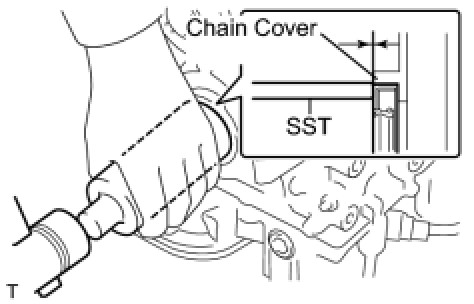

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the timing chain cover edge.
SST: 09316-60011
09316-00011
NOTICE:
- Keep the lip free of foreign matter.
- Do not tap the oil seal at an angle.

2. INSTALL CRANKSHAFT PULLEY
(a) Align the pulley set key with the key groove of the pulley, and slide on the pulley.

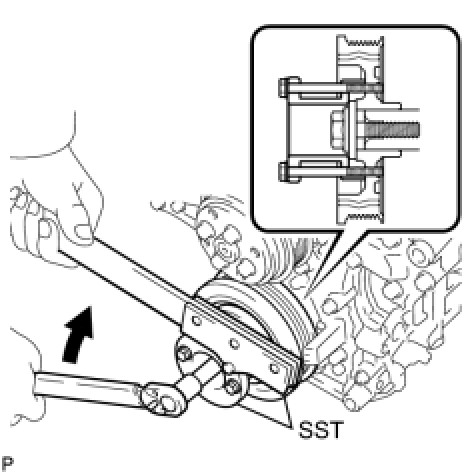

(b) Using SST, install the pulley bolt.
SST: 09213-70011
09213-70020
SST: 09330-00021
Torque: 250 Nm (2,550 kgf-cm, 184ft-lbf)
3. INSTALL V-RIBBED BELT Installation
4. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
5. INSTALL FRONT FENDER APRON SEAL RH
6. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
