2GR-FE ENGINE MECHANICAL: ENGINE FRONT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH
3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
4. REMOVE V-RIBBED BELT Removal
5. REMOVE CRANKSHAFT PULLEY

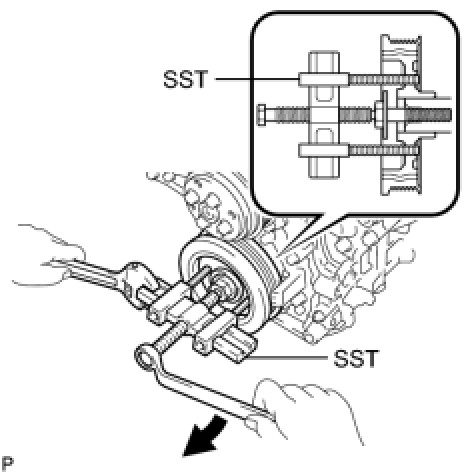

(a) Using SST, loosen the crankshaft pulley bolt.
SST: 09213-70011
09213-70020
SST: 09330-00021

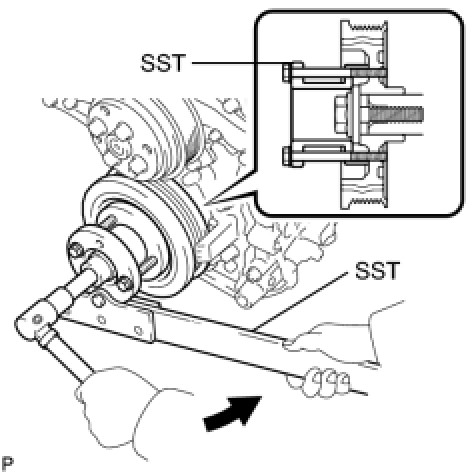

(b) Using SST, remove the crankshaft pulley bolt and crankshaft pulley.
SST: 09950-50013
09951-05010
09952-05010
09953-05020
09954-05021
6. REMOVE TIMING CHAIN CASE OIL SEAL

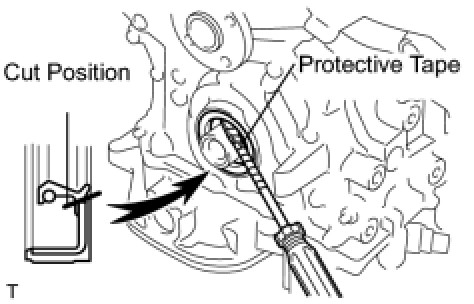

(a) Using a screwdriver, pry out the oil seal.
HINT: Tape the screwdriver tip before use.
NOTICE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
