AIR CONDITIONING: AIR CONDITIONING SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE

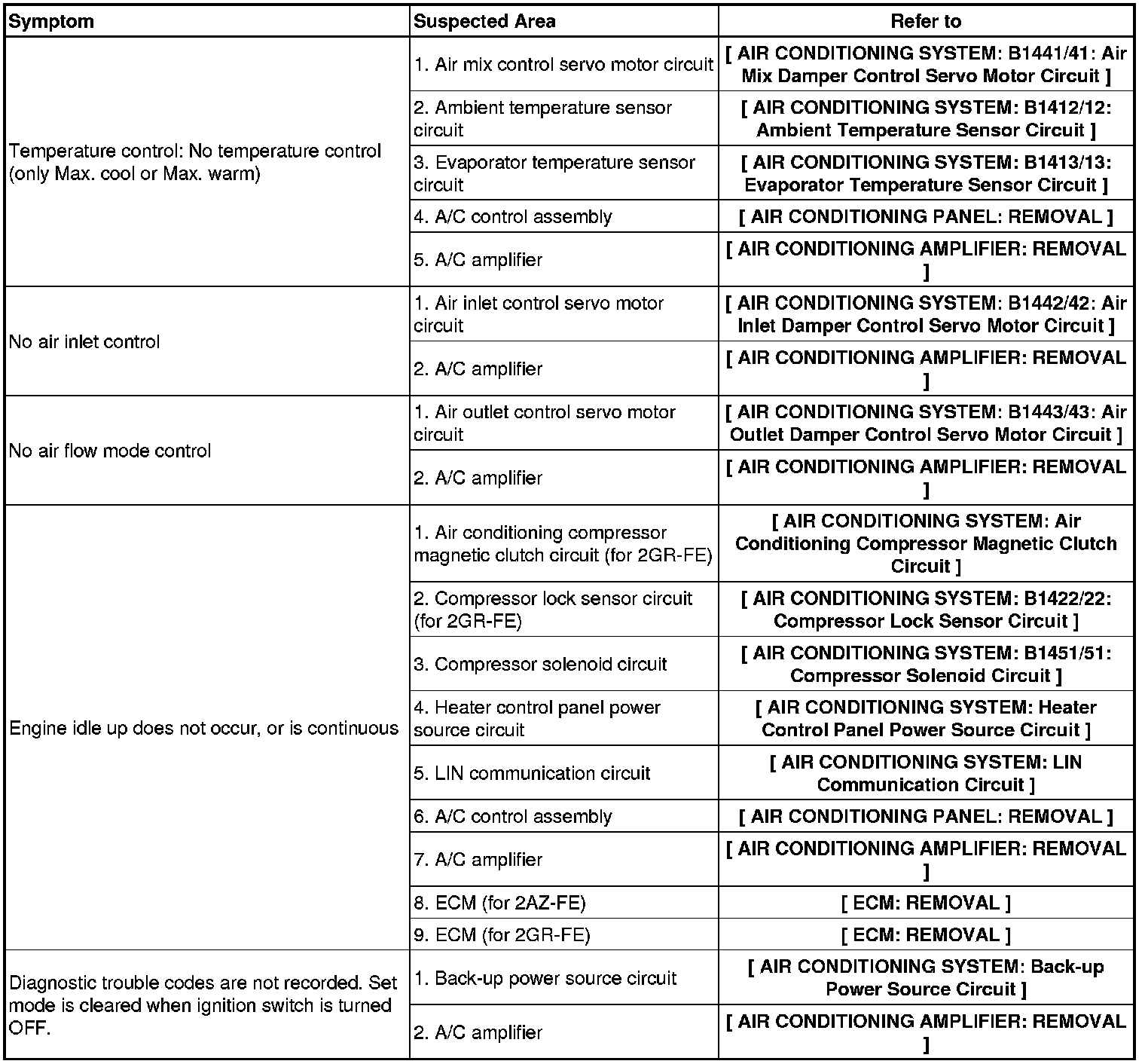

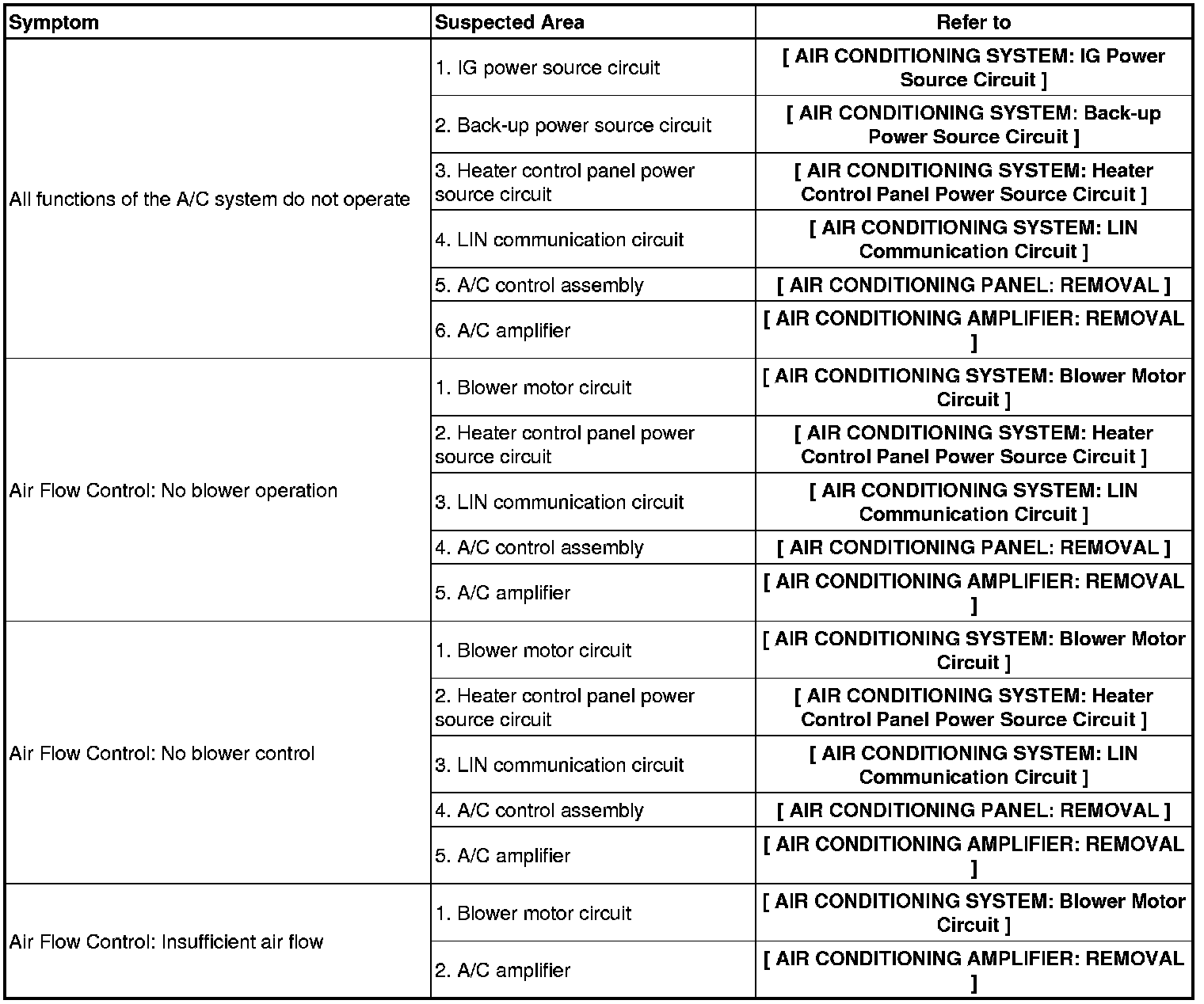

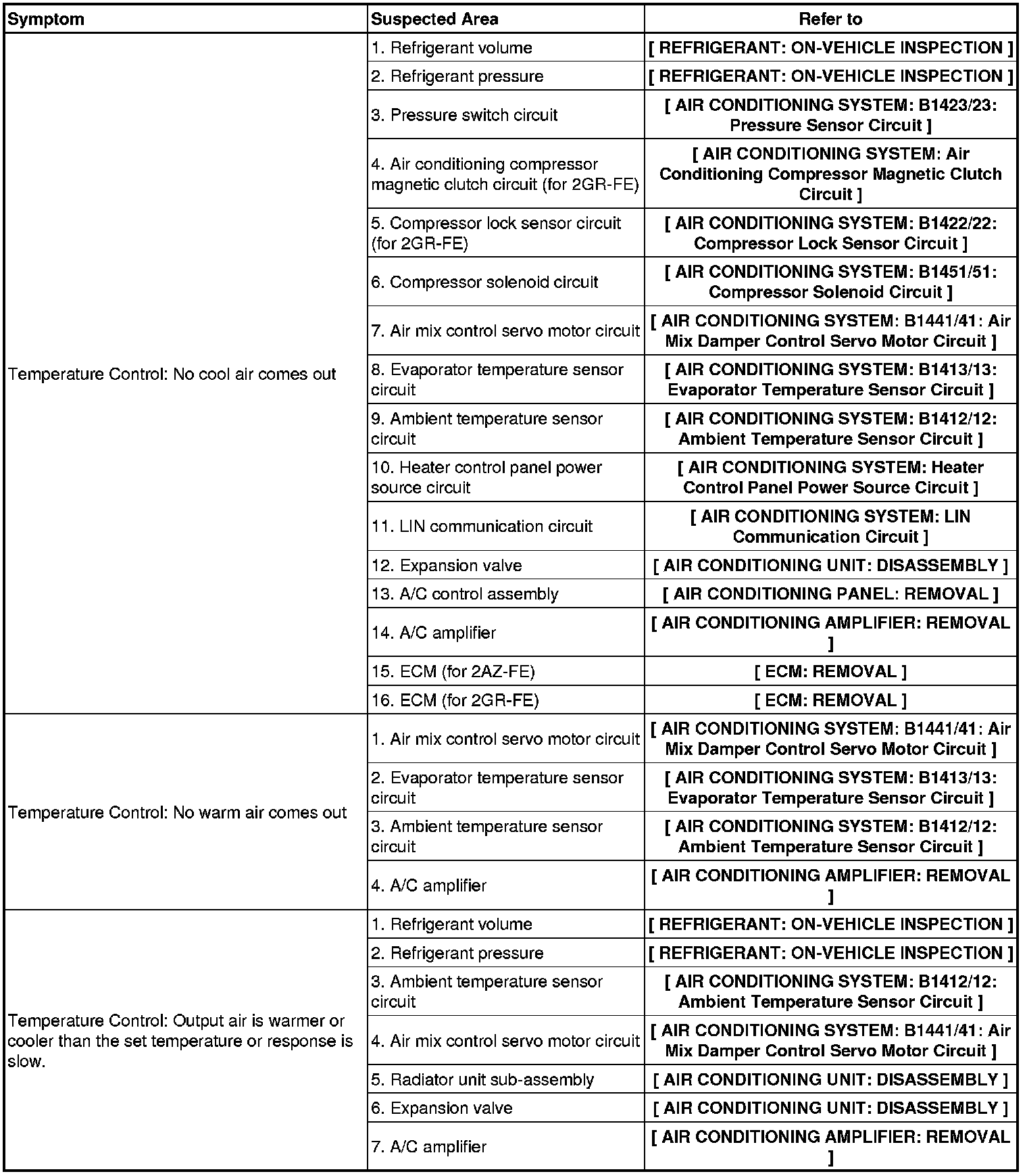

MANUAL A/C:

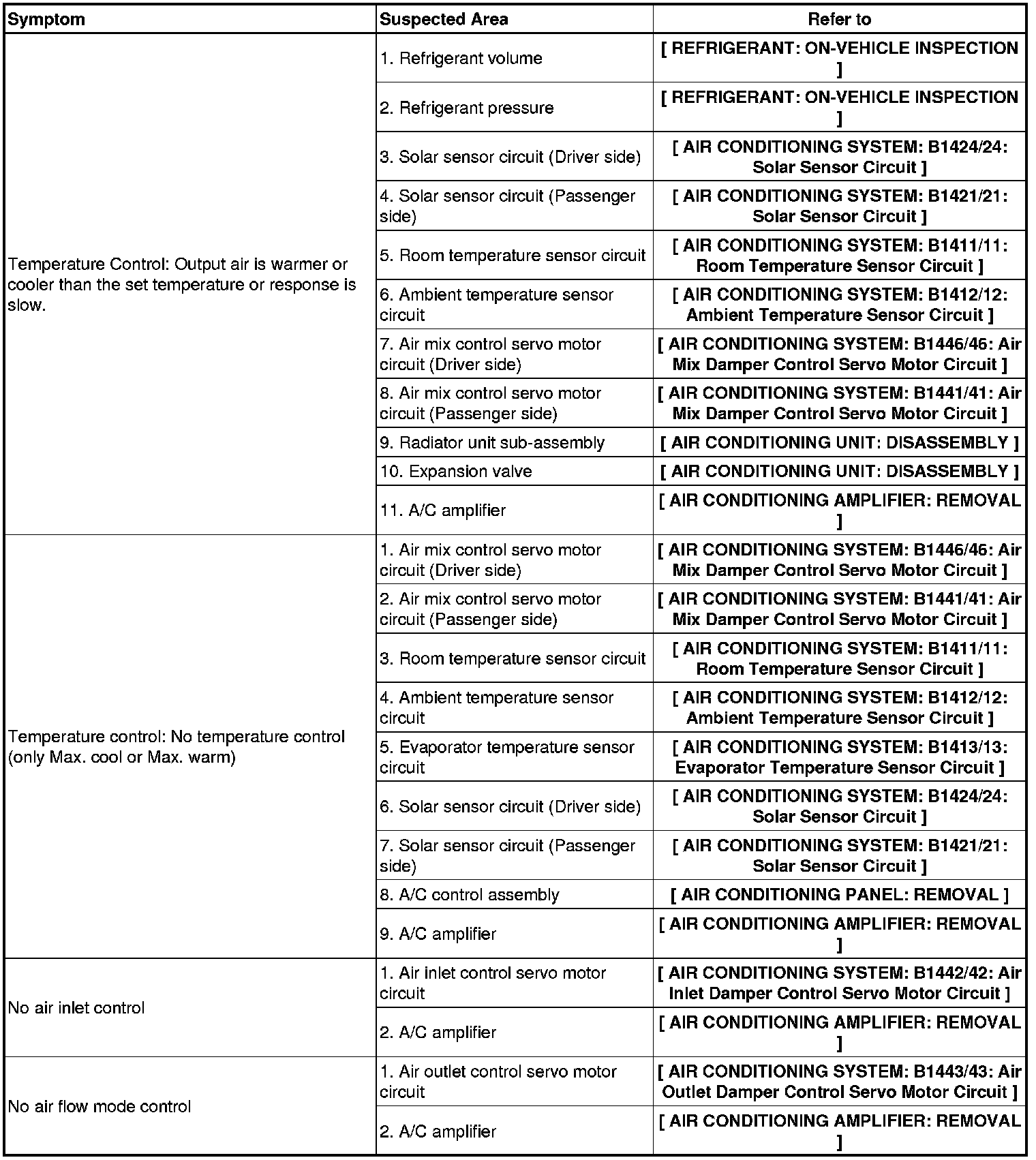

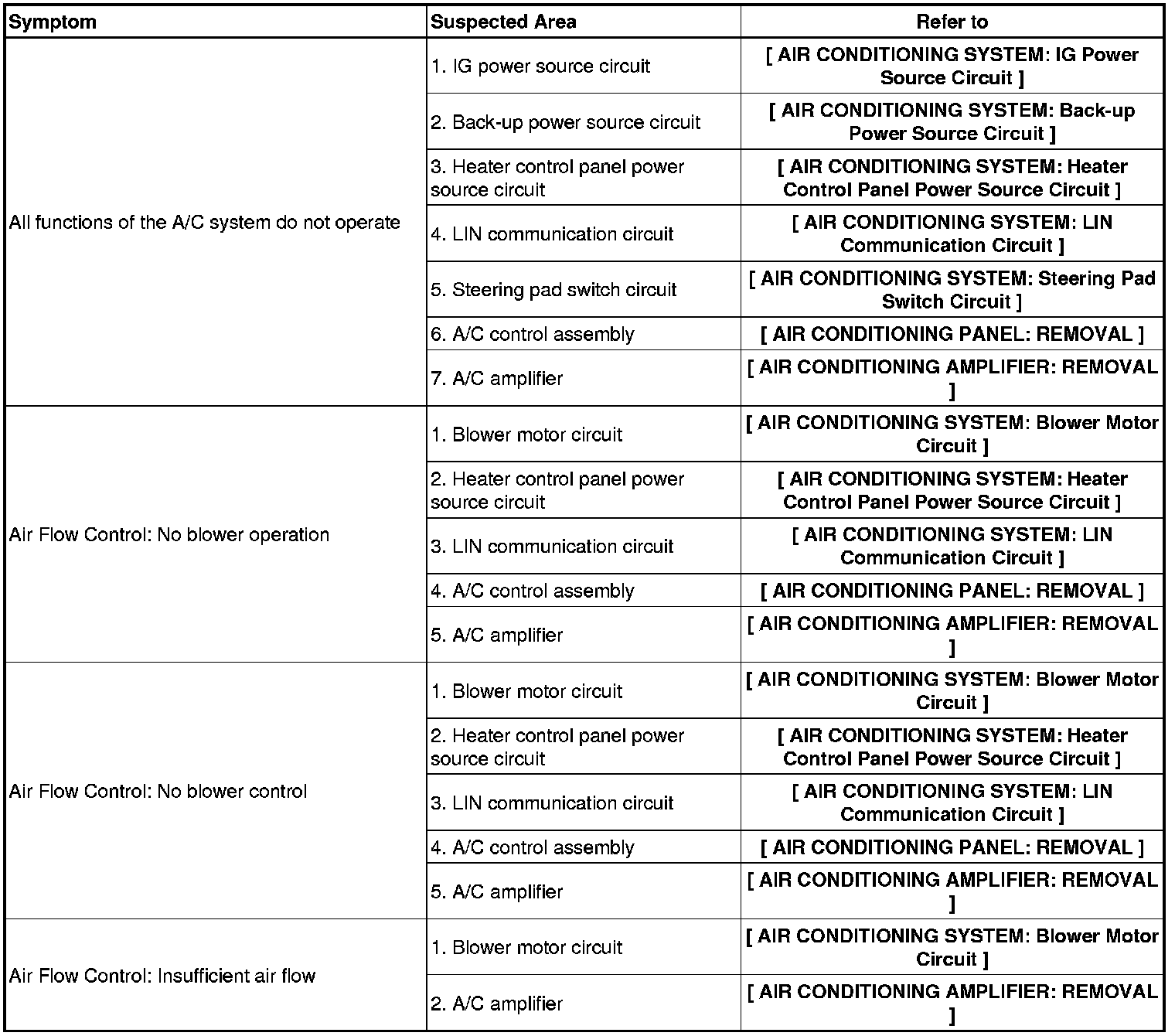

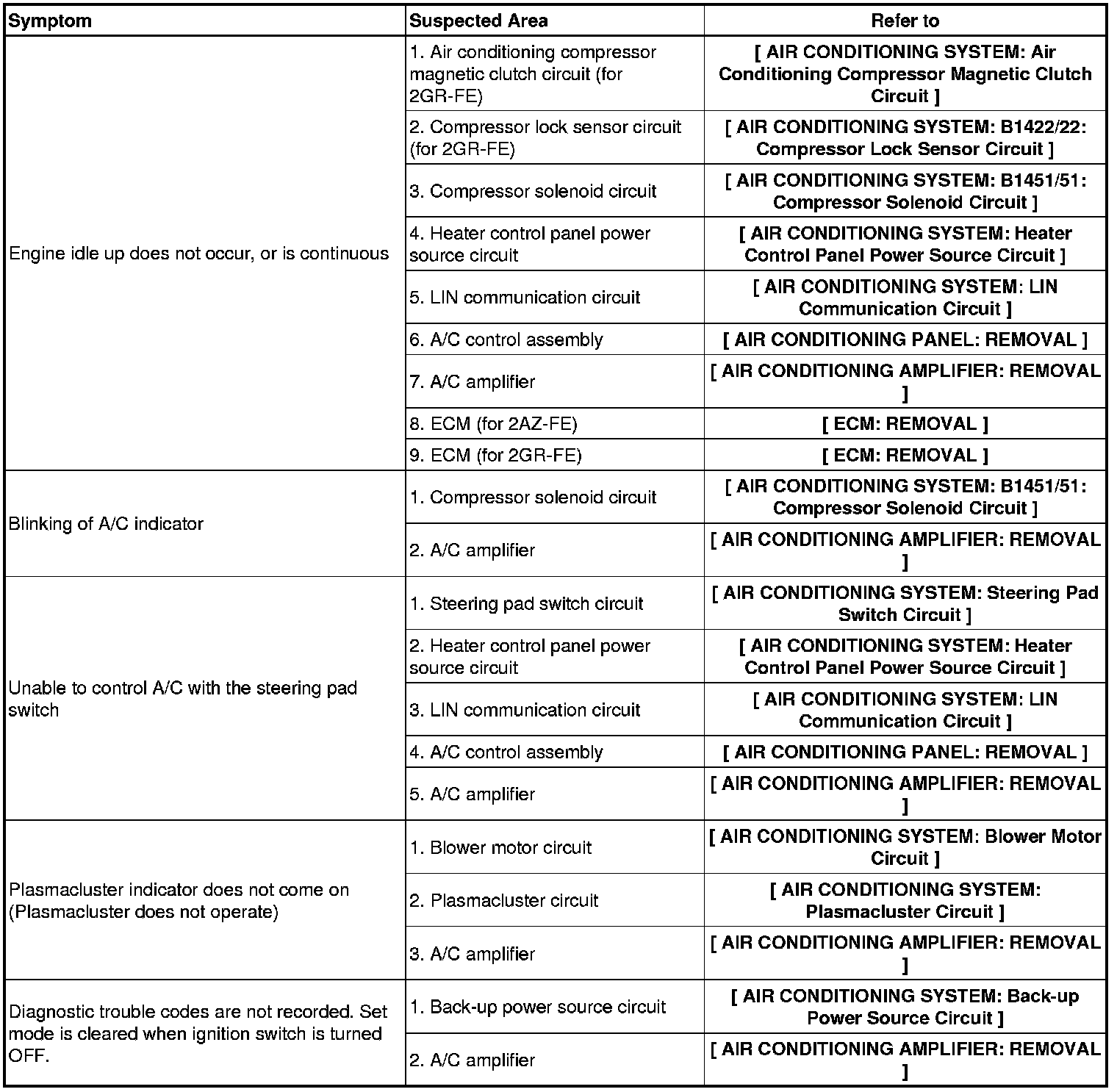

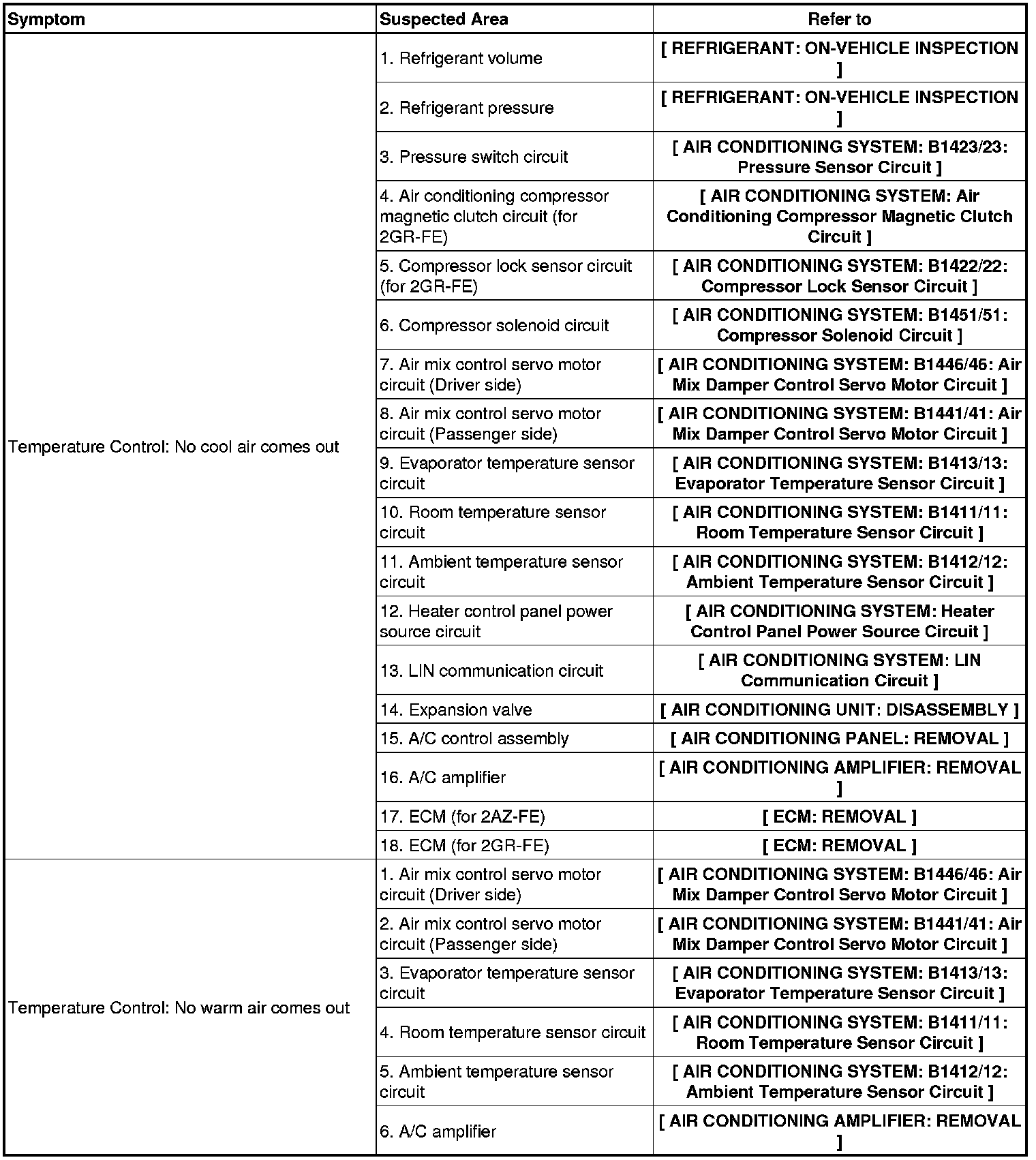

AUTO A/C:
