Meter / Gauge System

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

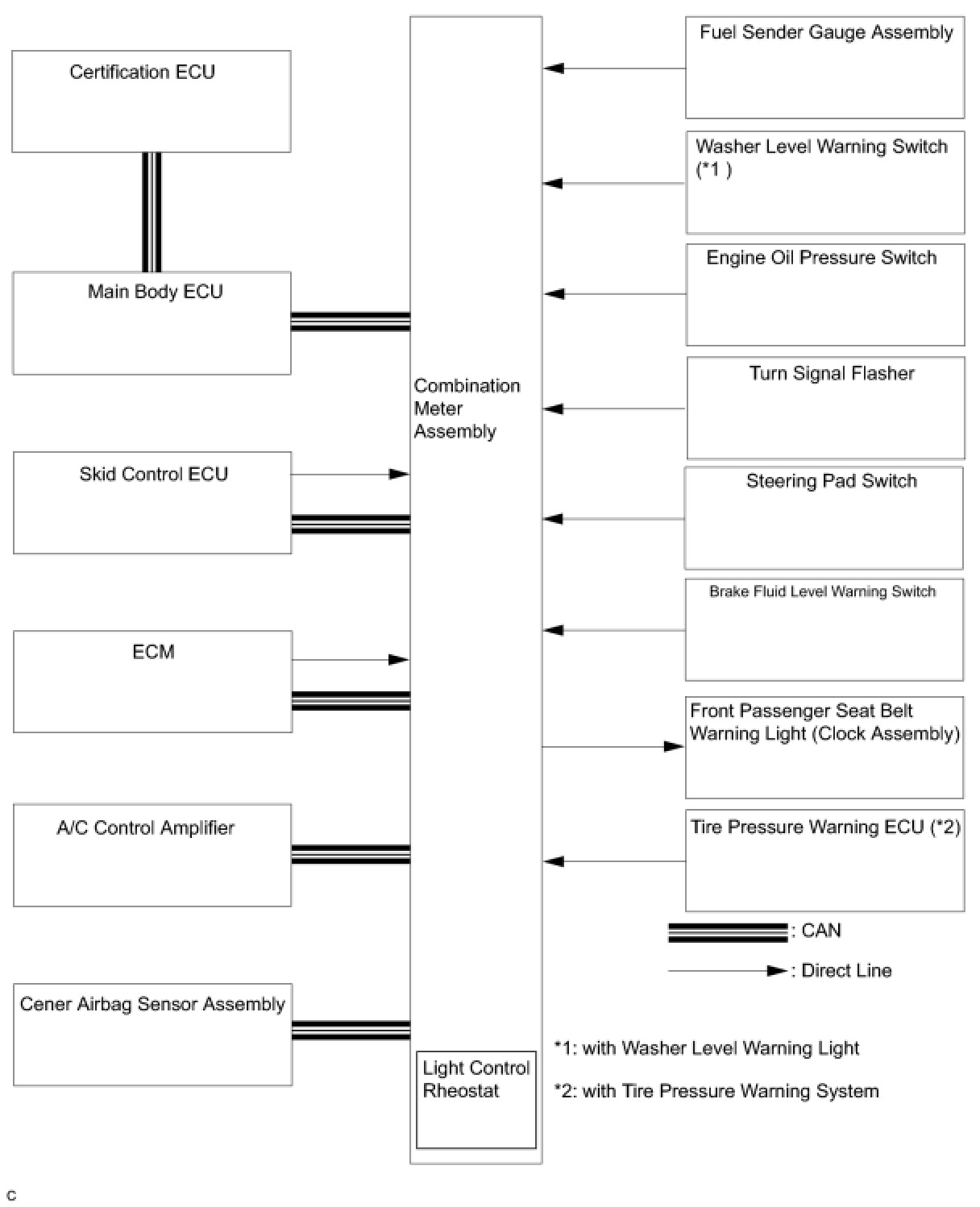

SYSTEM DIAGRAM

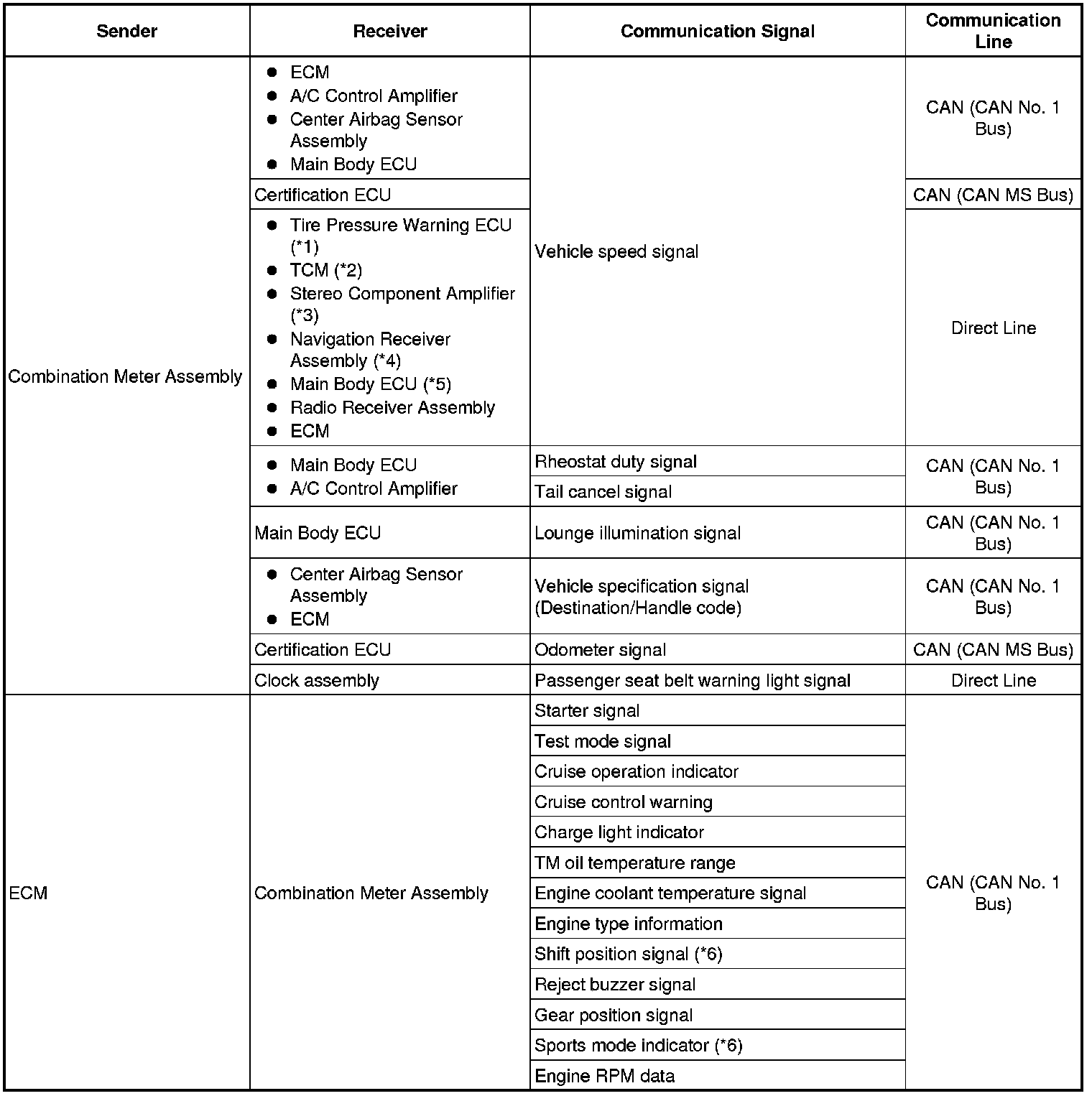

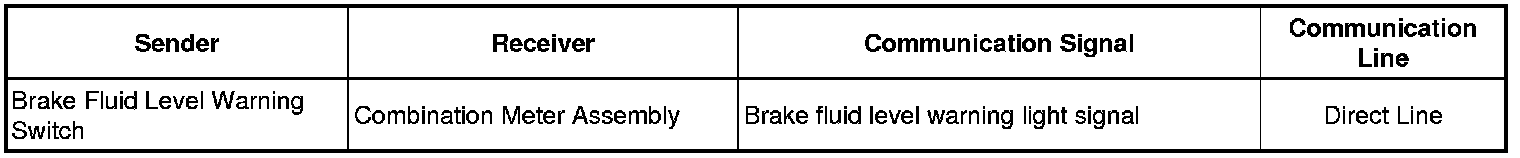

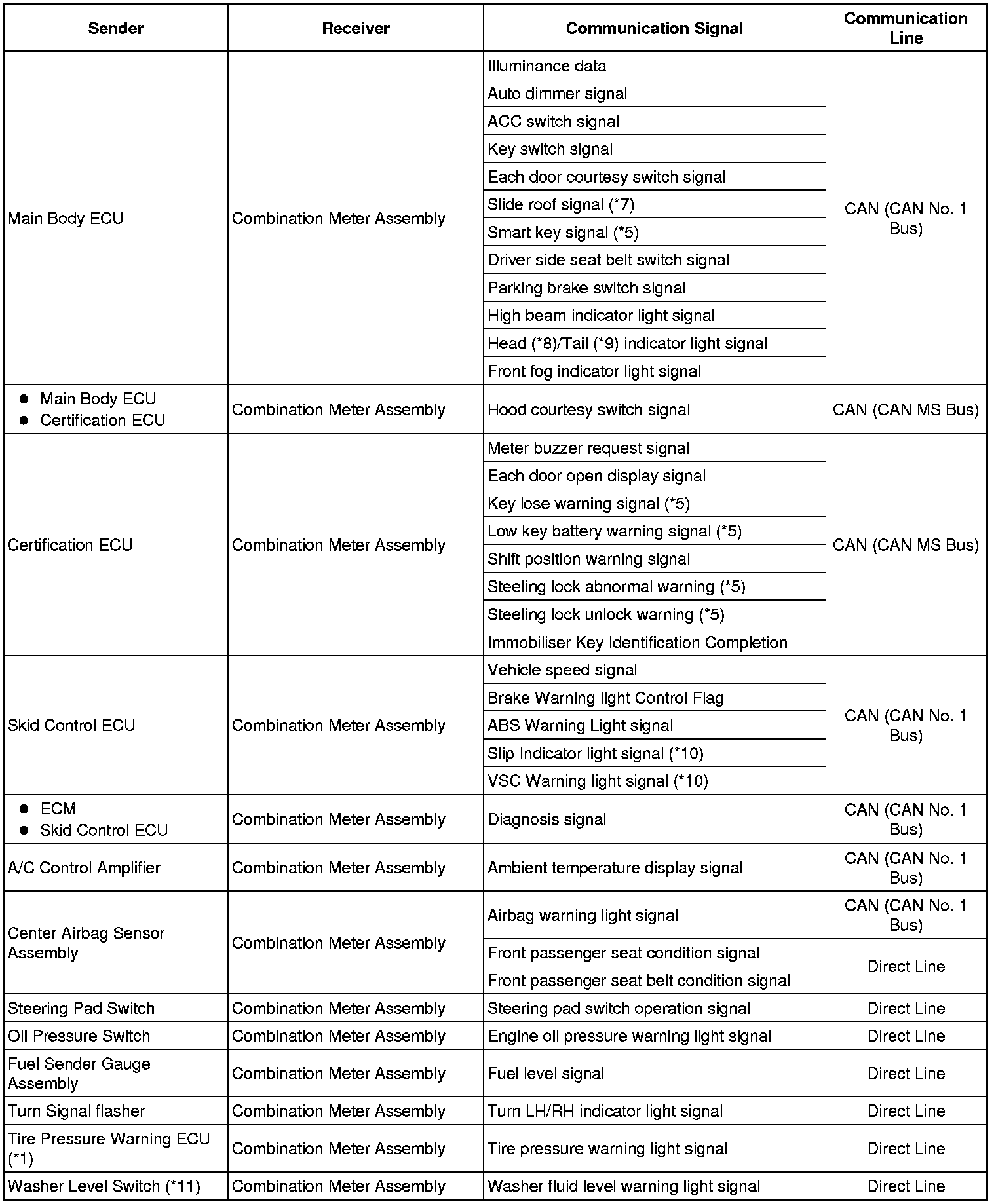

INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER ASSEMBLY:













*1: with Tire Pressure Warning System
*2: for 2GR-FE
*3: for Separate Type Amplifier System
*4: with Navigation System
*5: with Smart Key System
*6: for Automatic Transaxle
*7: with Sliding Roof
*8: for U.S.A.
*9: for Canada
*10: with VSC
*11: with Washer Level Warning Light

METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

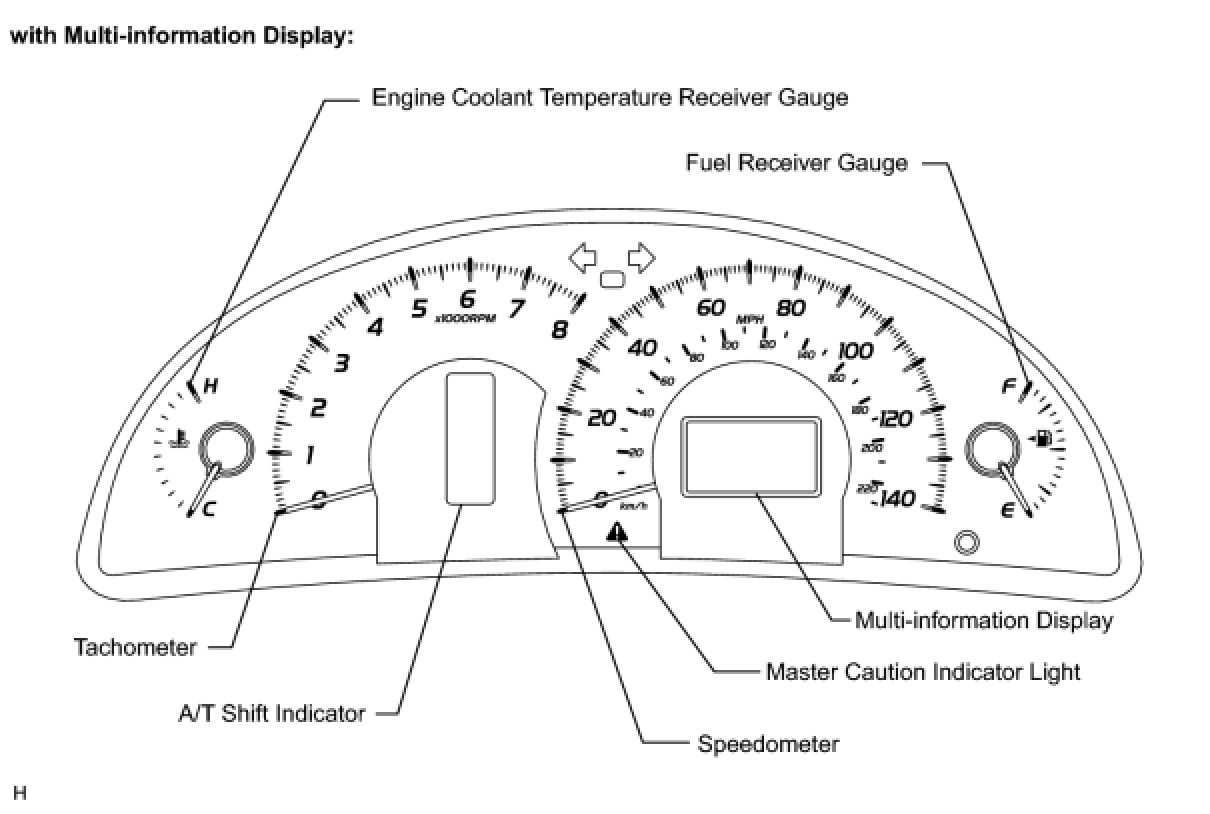

1. METER GAUGE

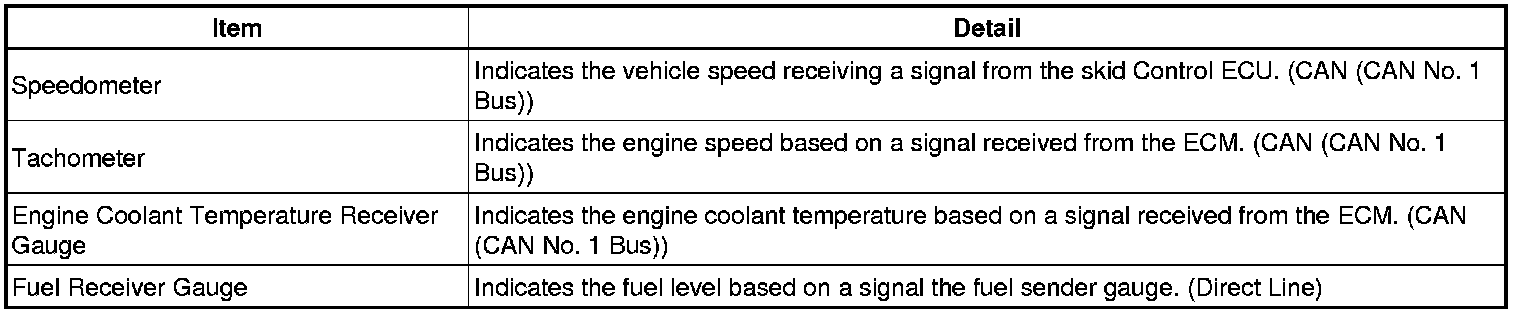

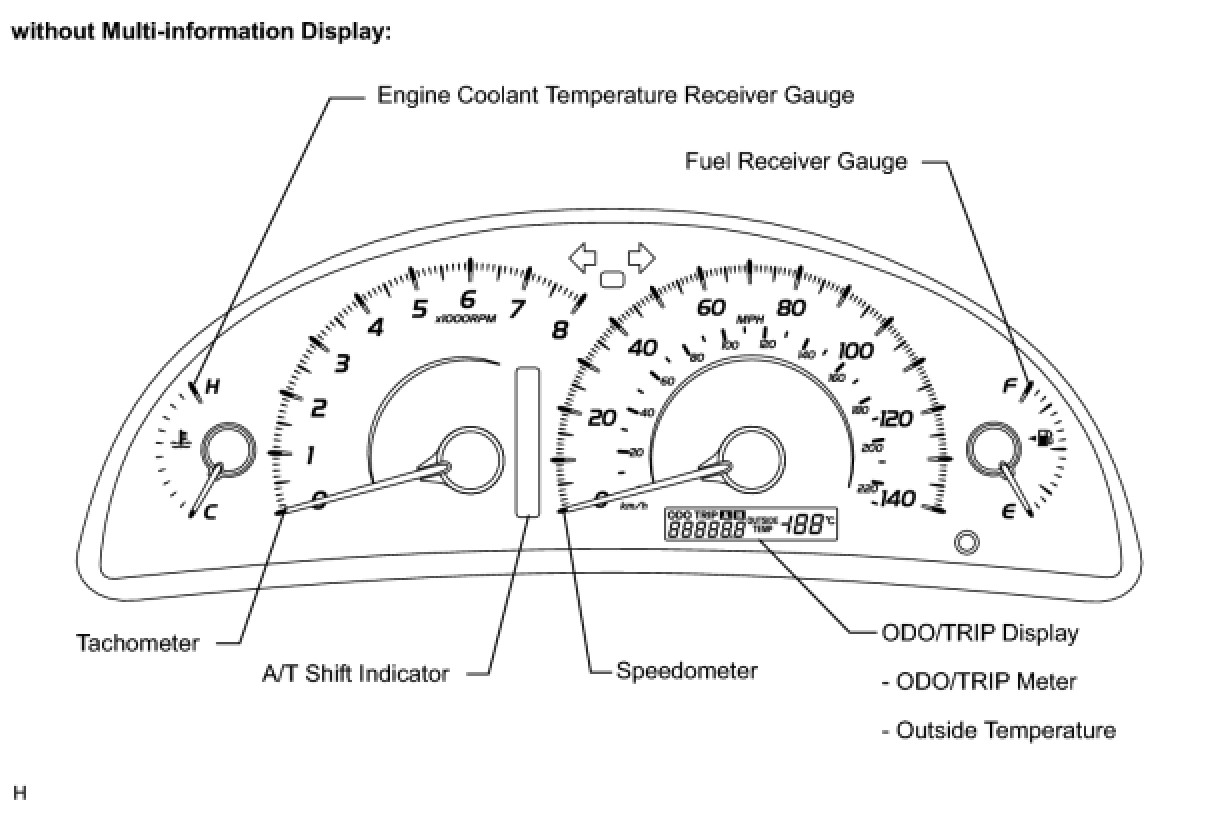

METER GAUGE:

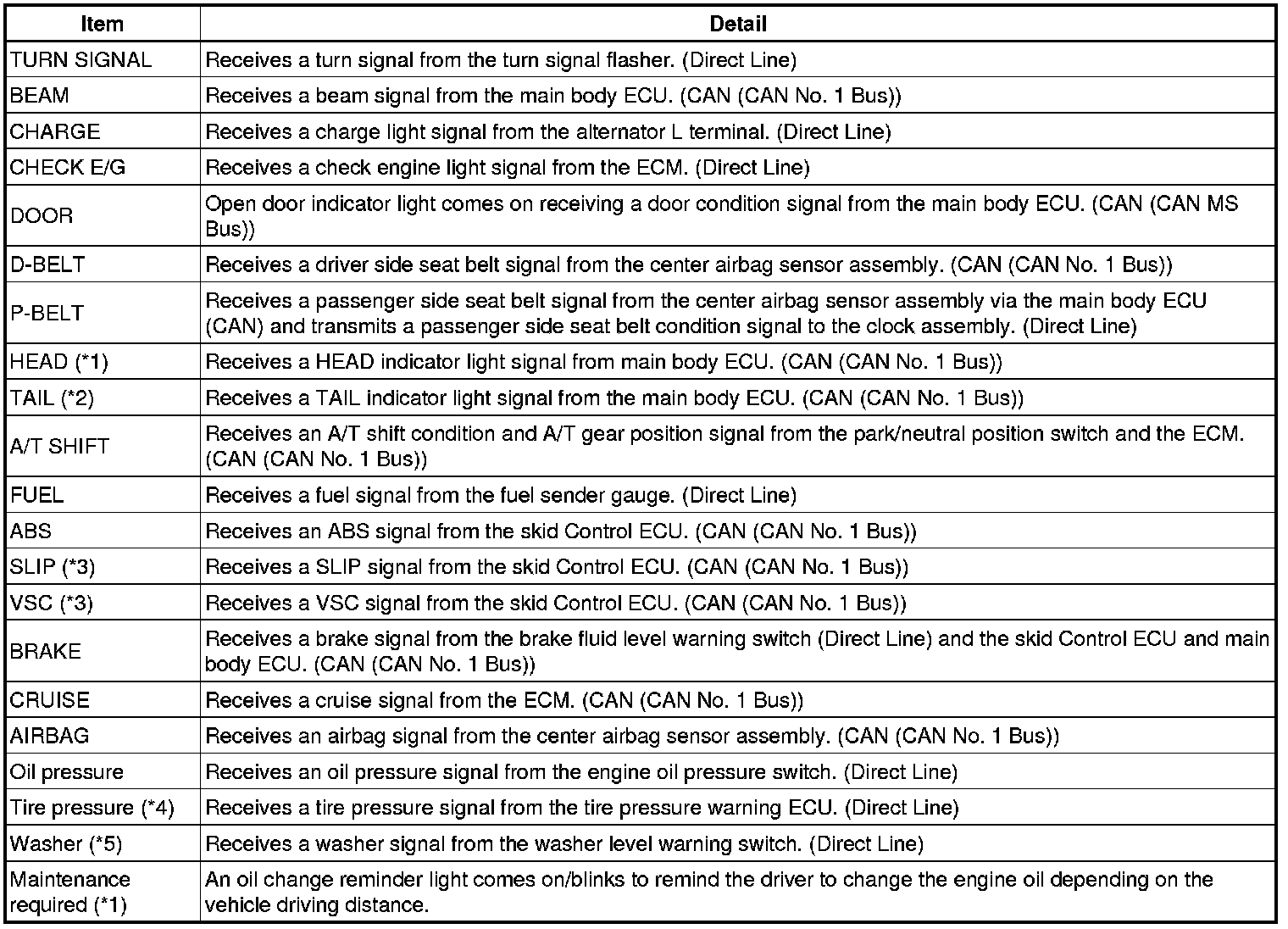

WARNING/INDICATOR:





*1: for U.S.A.
*2: except for U.S.A.
*3: with VSC
*4: with Tire Pressure Warning System
*5: with Washer Level Indicator
HINT:
- The multi-information display has been located in the center of the combination meter assembly.
- The display shows a message or animation for each of the functions described in the table below.

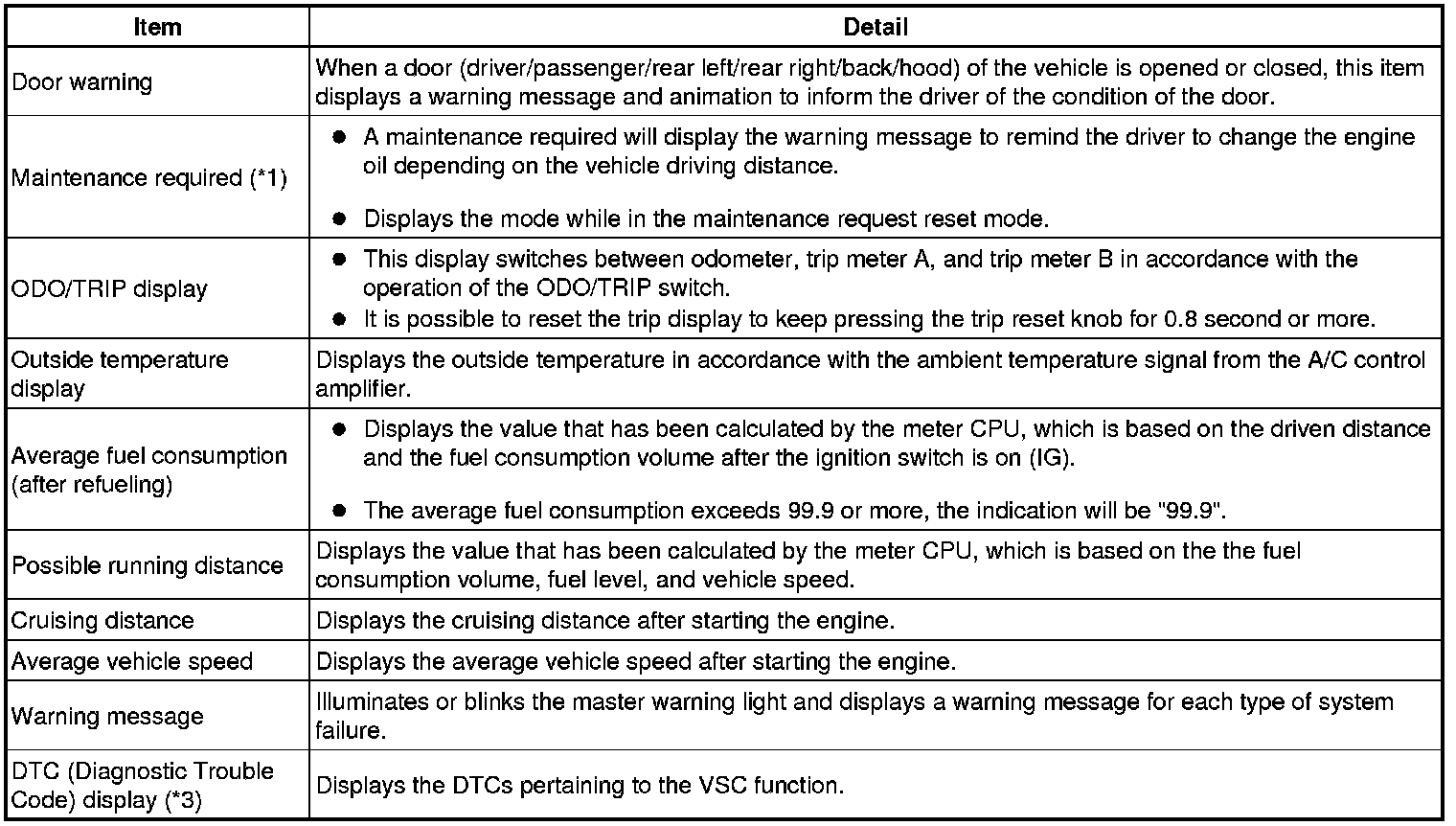

MULTI-INFORMATION DISPLAY:





*1: for U.S.A.
*2: Except for U.S.A.
*3: with VSC

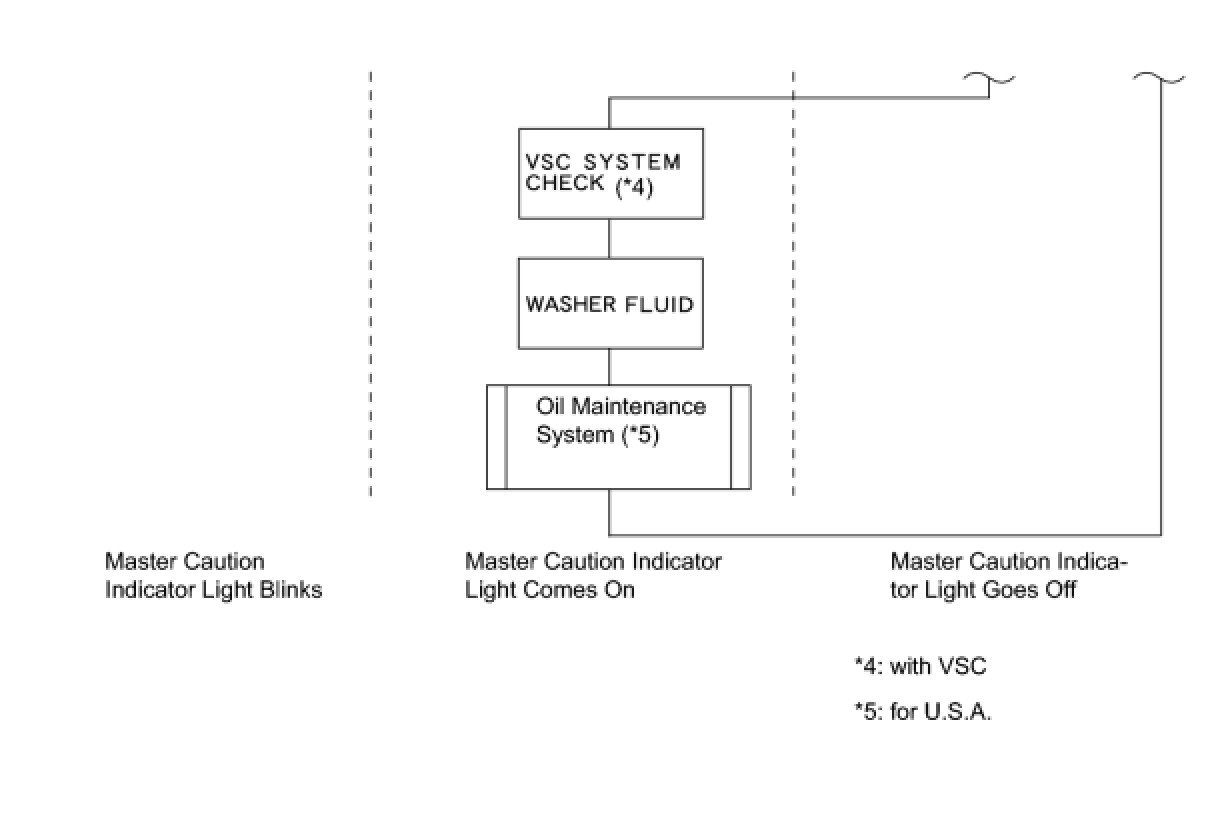

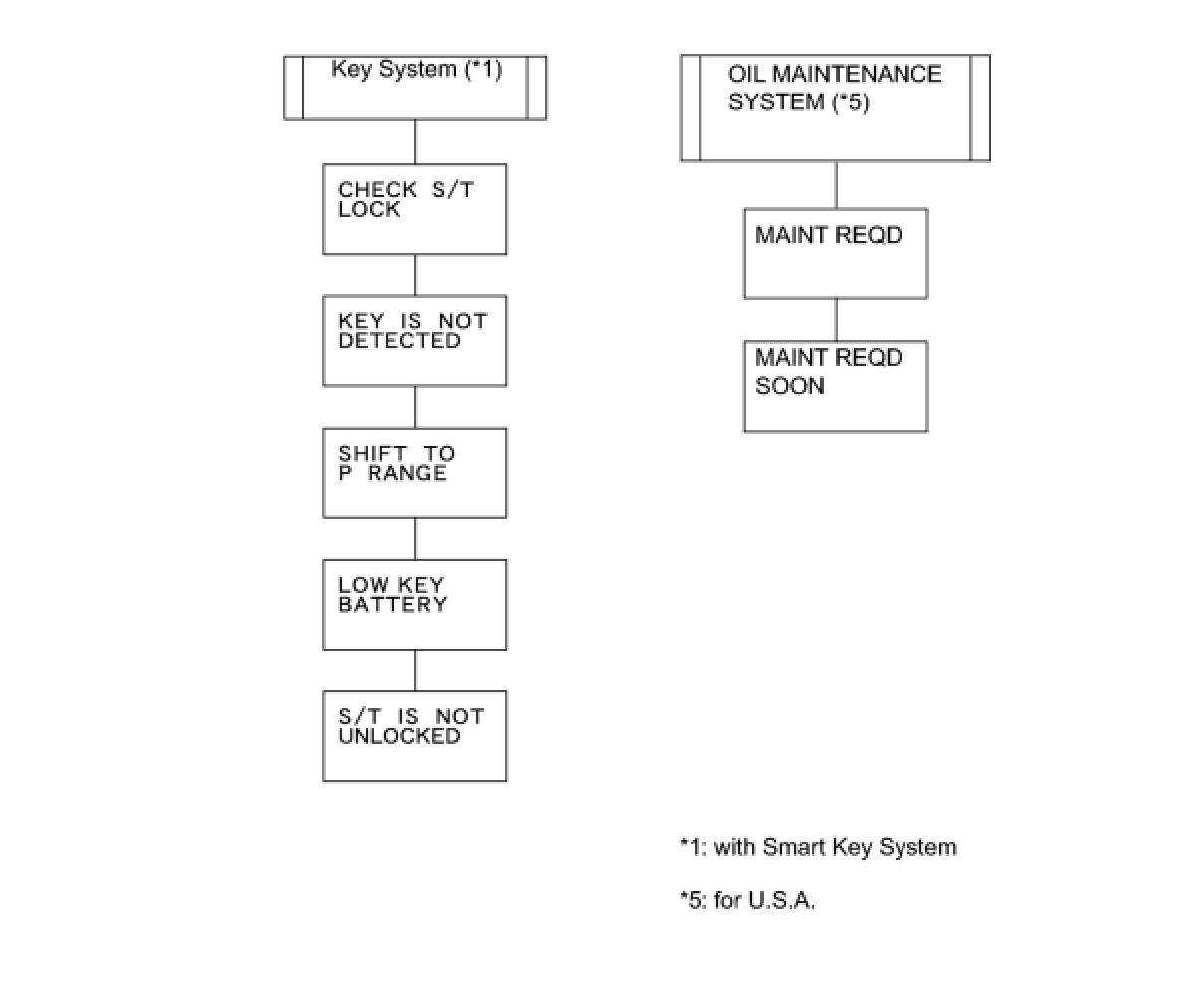

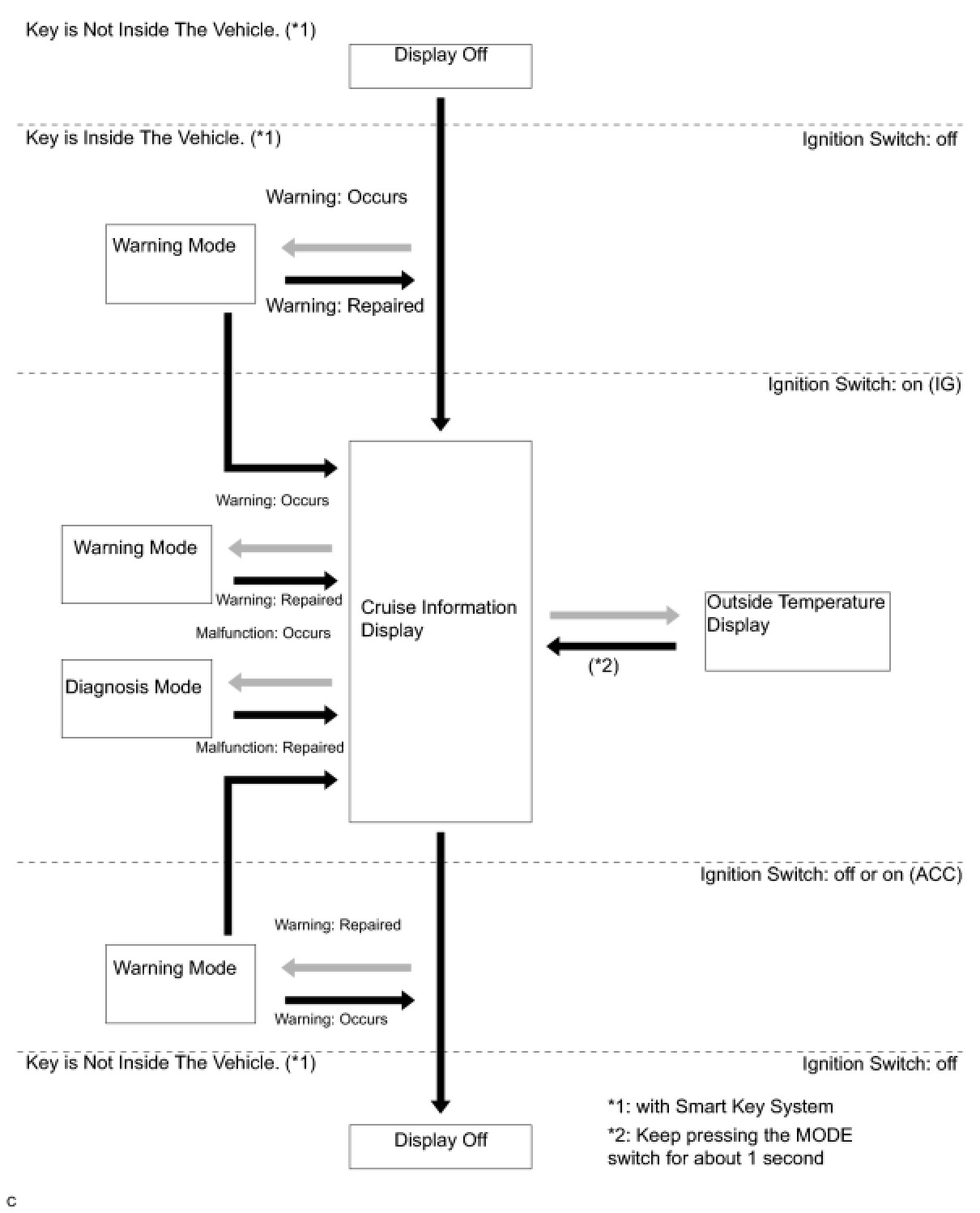

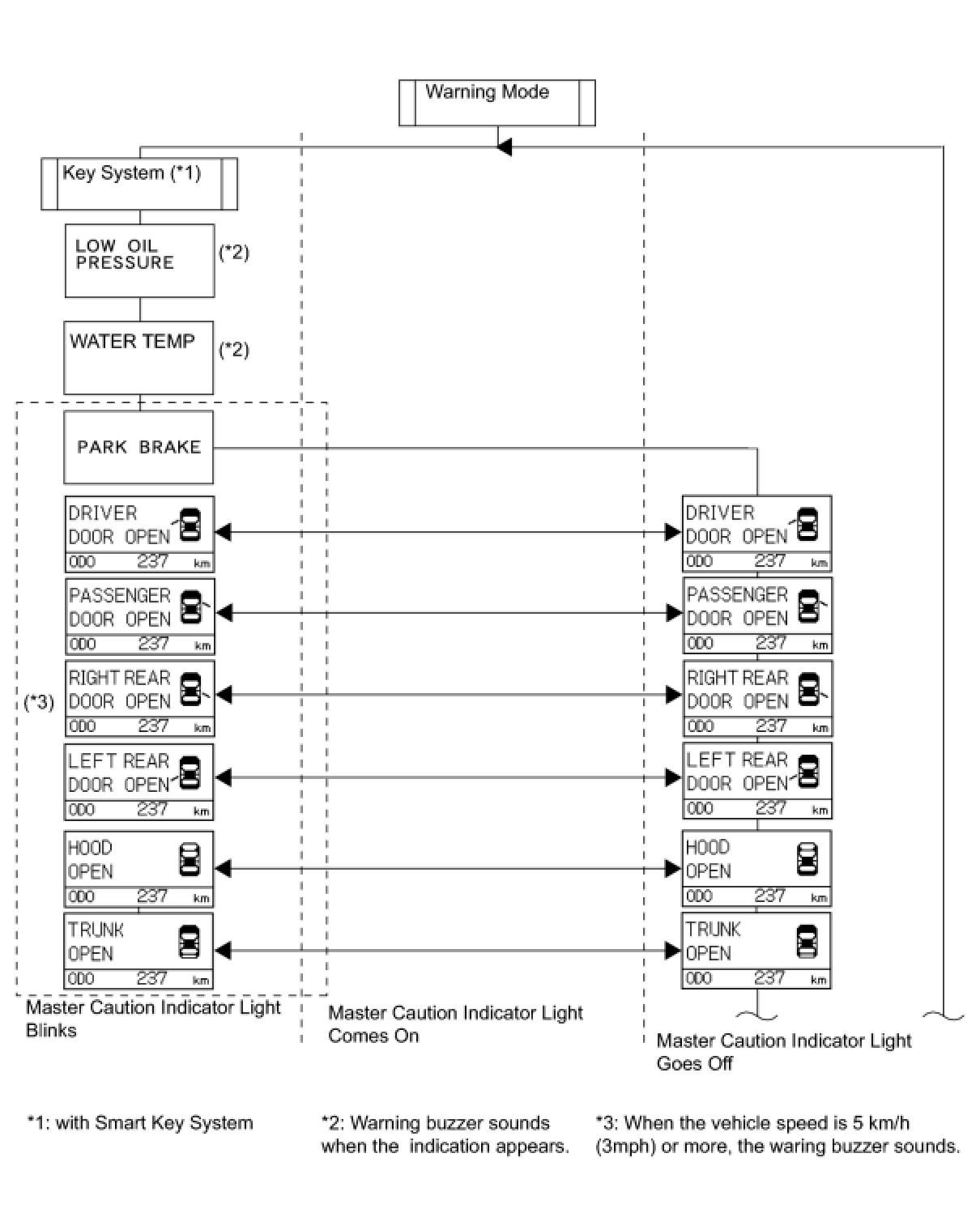

2. MULTI-INFORMATION DISPLAY
HINT: Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

















3. DIAGNOSIS SYSTEM




HINT:

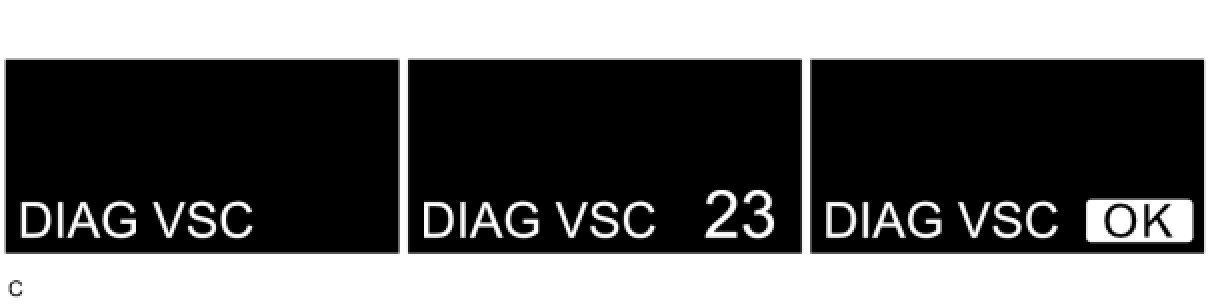

- The multi-information display shows "DIAG" when turn the ignition switch on (IG) Vehicle Stability Control System (for ADVICS Made) for Advics, Vehicle Stability Control System (for BOSCH Made) for Bosch).
- Diagnosis information can be displayed on the multi-information display after connecting a jumper wire between TC and CG of the DLC3 connector.
