Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Service and Repair
>>
Components
Components

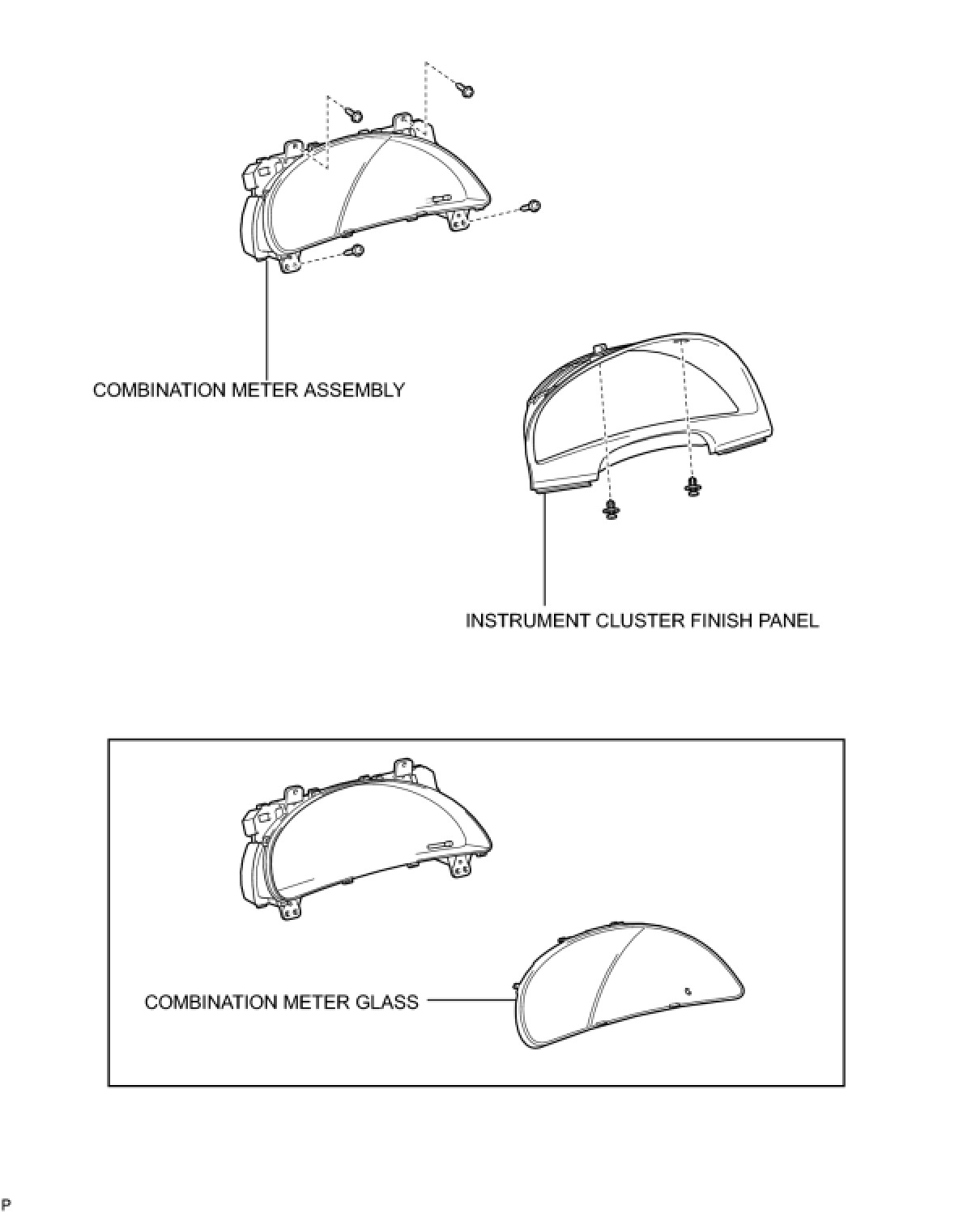

METER: COMBINATION METER: COMPONENTS
COMPONENTS
ILLUSTRATION
