Fail-Safe Chart

METER: METER / GAUGE SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

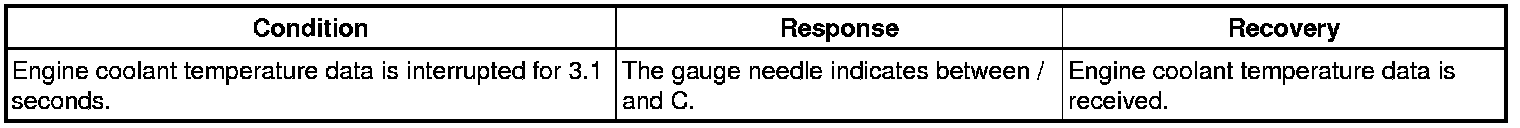

ENGINE COOLANT TEMPERATURE GAUGE:

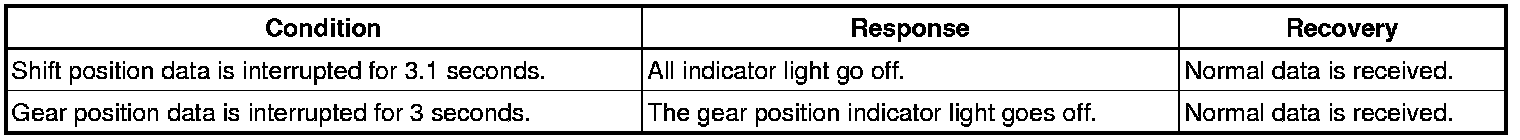

SHIFT INDICATOR:





ABS & BRAKE:





DOOR:





DRIVER SIDE SEAT BELT:

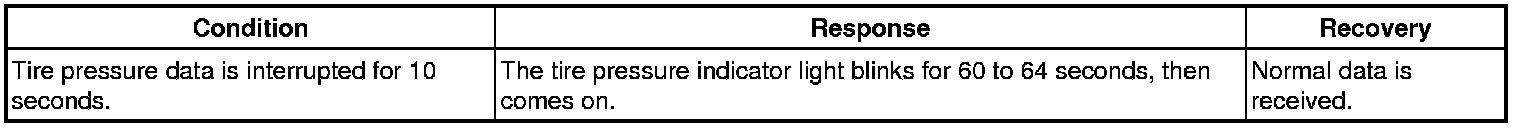

TIRE PRESSURE:

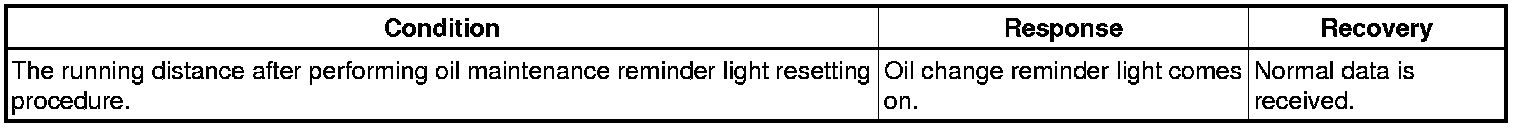

OIL MAINTENANCE (*1):





HEAD (*1)/TAIL (*2):





BEAM:

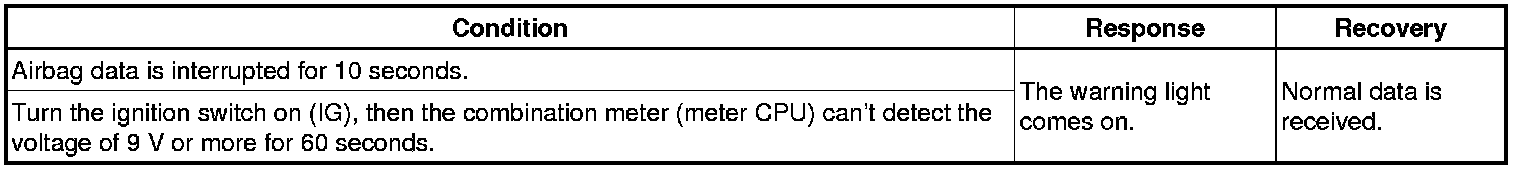

AIRBAG:





FRONT PASSENGER SIDE SEAT BELT:

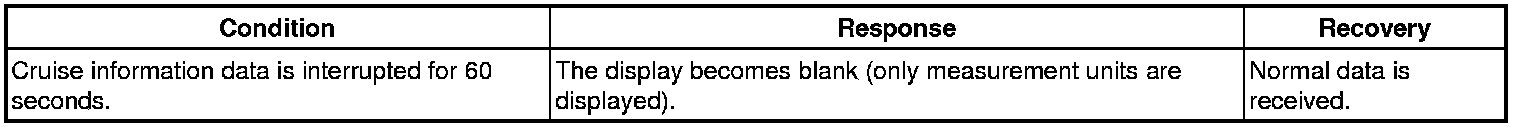

CRUISE:





CHARGE:





MULTI-INFORMATION DISPLAY:





*1: for U.S.A.
*2: Except for U.S.A.
