Component Tests and General Diagnostics

LIGHTING: GLOVE BOX LIGHT: INSPECTION

INSPECTION

1. INSPECT GLOVE BOX LIGHT ASSEMBLY

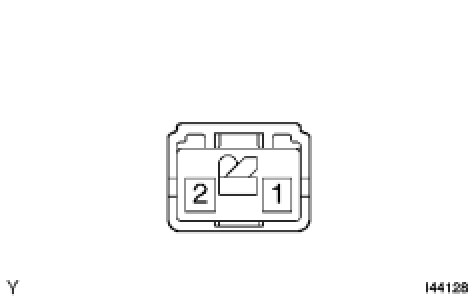

(a) Apply battery voltage to the glove box light assembly connector.
(b) Check that the glove box light comes on.

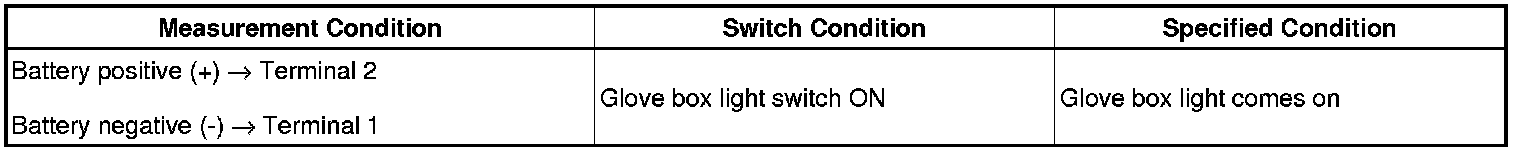

OK:





If the result is not as specified, replace the bulb or glove box light assembly.
