Low Pitched Horn

HORN: LOW PITCHED HORN: INSPECTION

INSPECTION

1. INSPECT LOW PITCHED HORN
(a) Apply battery voltage and check operation of the horn, as shown in the table below.

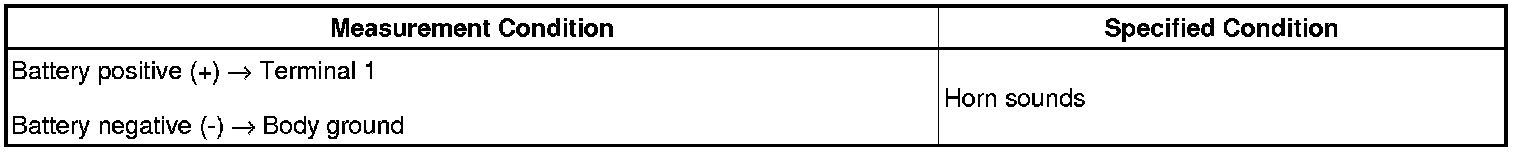

Standard:
