Installation

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT: INSTALLATION

INSTALLATION

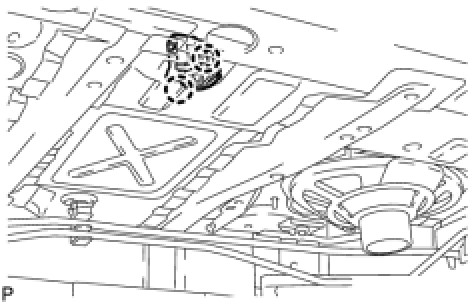

1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY





(a) Connect the connector.
(b) Engage the 2 claws and install the No. 1 luggage compartment light assembly.
