Component Tests and General Diagnostics

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT: INSPECTION

INSPECTION

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY





(a) Apply battery voltage to the No. 1 luggage compartment light assembly connector.
(b) Check that the No. 1 luggage compartment light comes on.

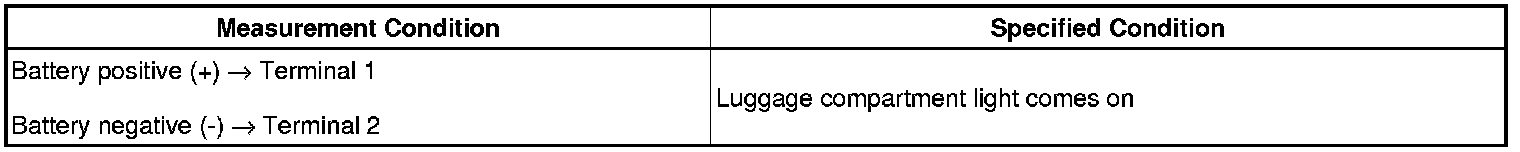

OK:





If the result is not as specified, replace the bulb or luggage compartment light assembly.
