2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

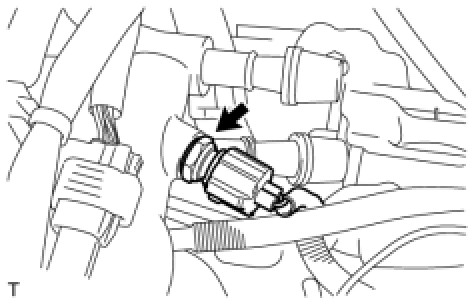

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
(a) Install a new gasket to the engine coolant temperature sensor.





(b) Install the engine coolant temperature sensor.
Torque: 20 Nm (204 kgf-cm, 15ft-lbf)
(c) Connect the engine coolant temperature sensor connector.
2. INSTALL NO. 1 AIR CLEANER INLET Installation
3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
5. INSTALL AIR CLEANER INLET ASSEMBLY Installation
6. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
7. ADD ENGINE COOLANT Testing and Inspection
8. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection
9. INSTALL ENGINE UNDER COVER RH
10. INSTALL ENGINE UNDER COVER LH
