Computers and Control Systems: Description and Operation








2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM

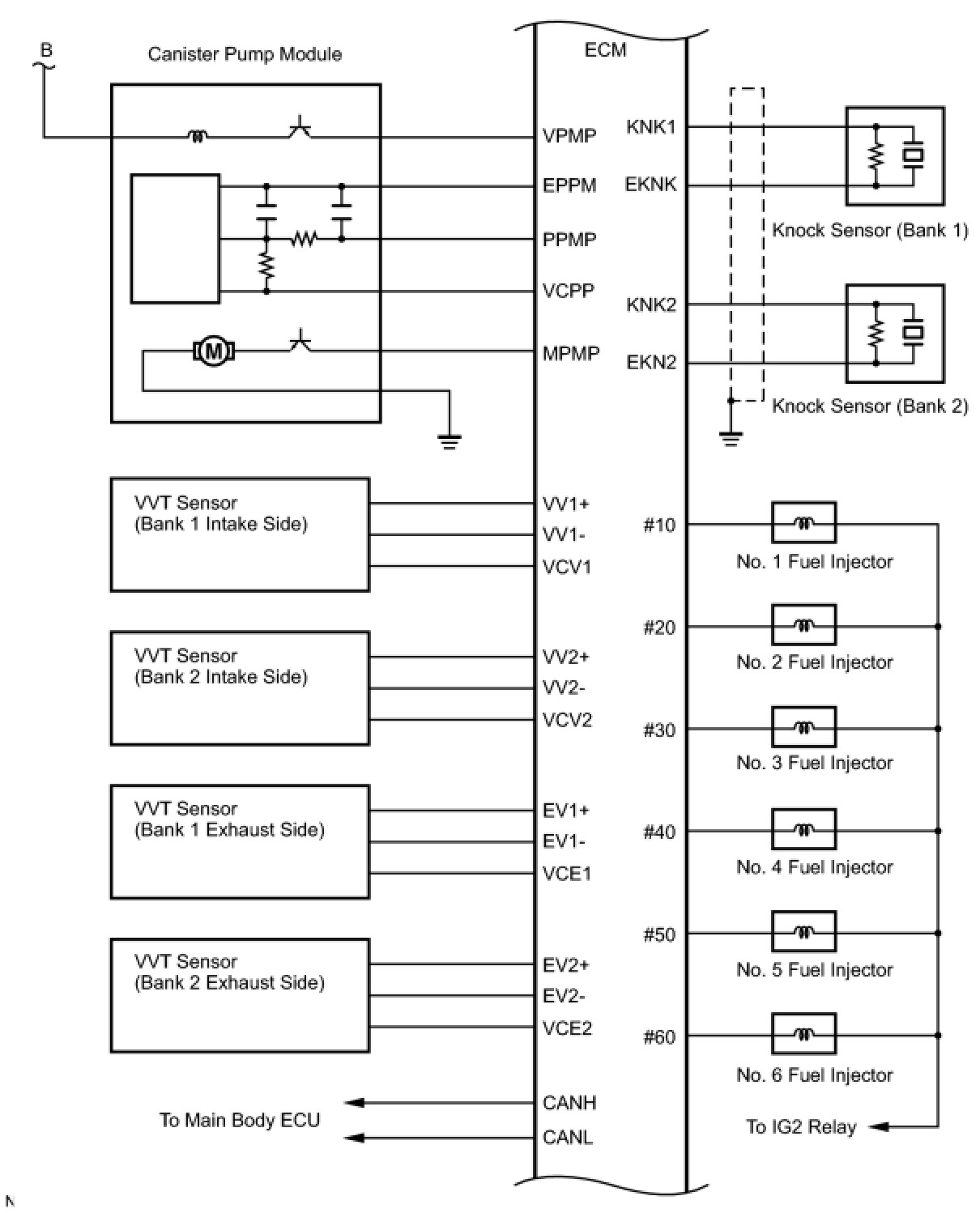

SYSTEM DIAGRAM

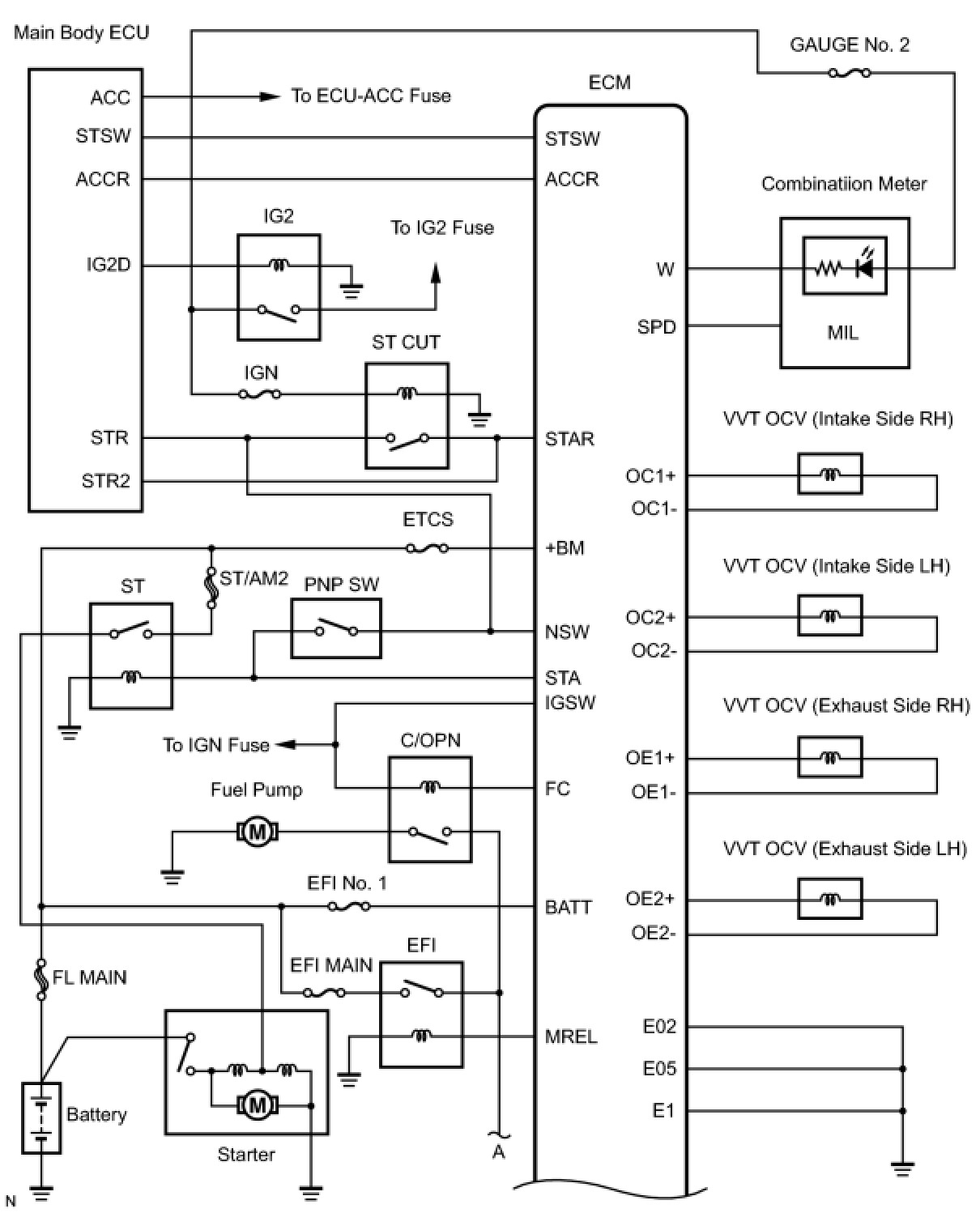

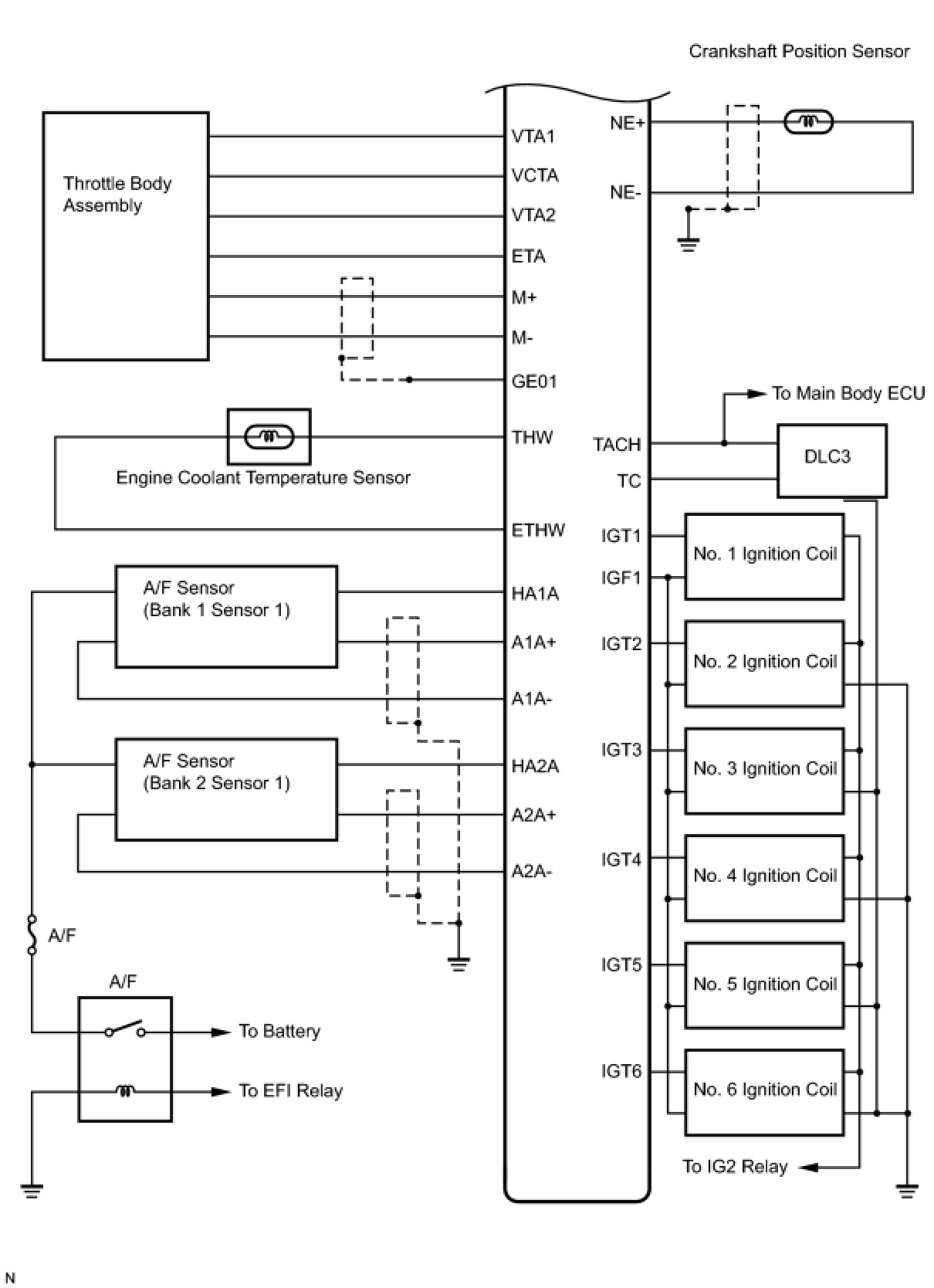

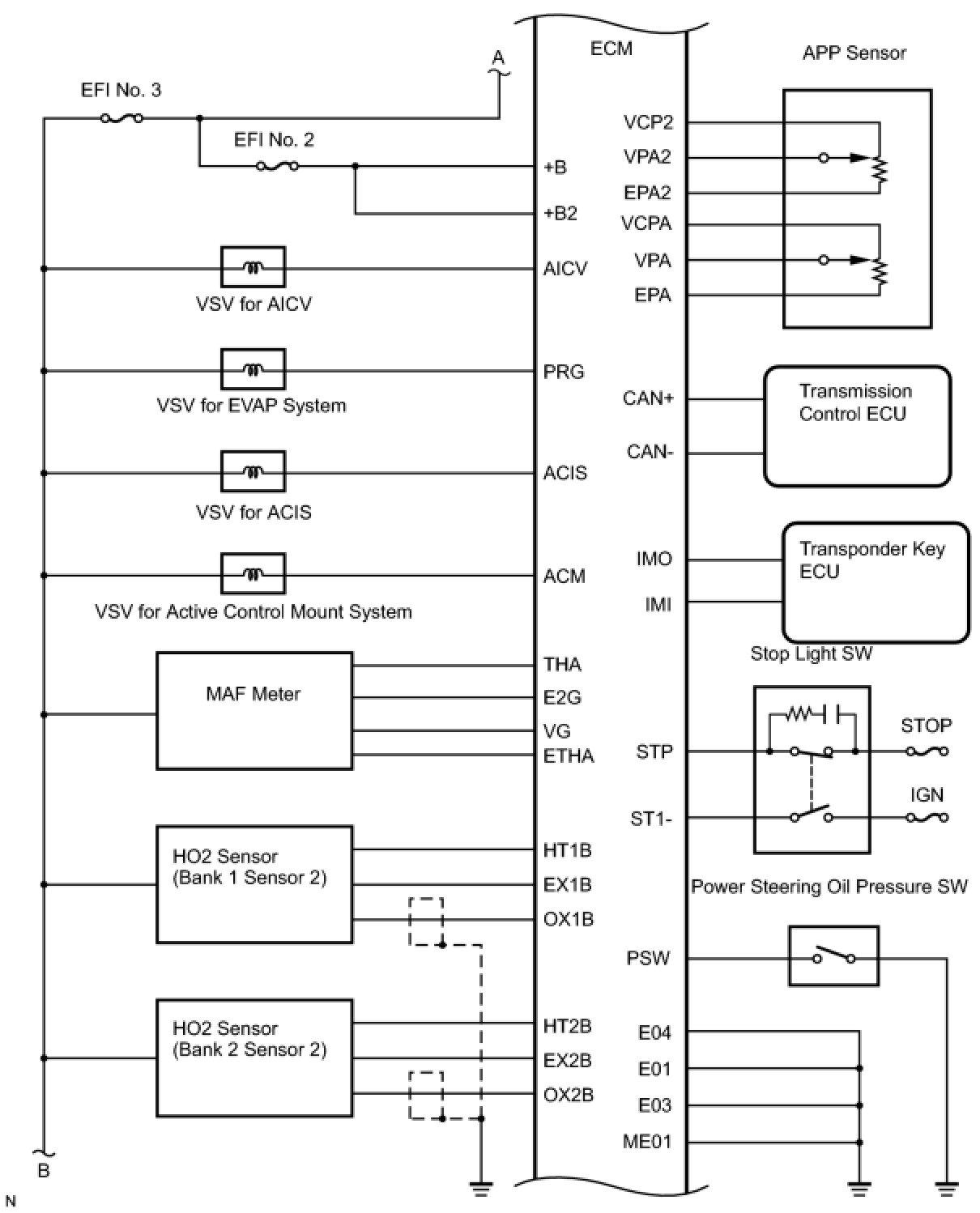

1. Without Smart Key System:

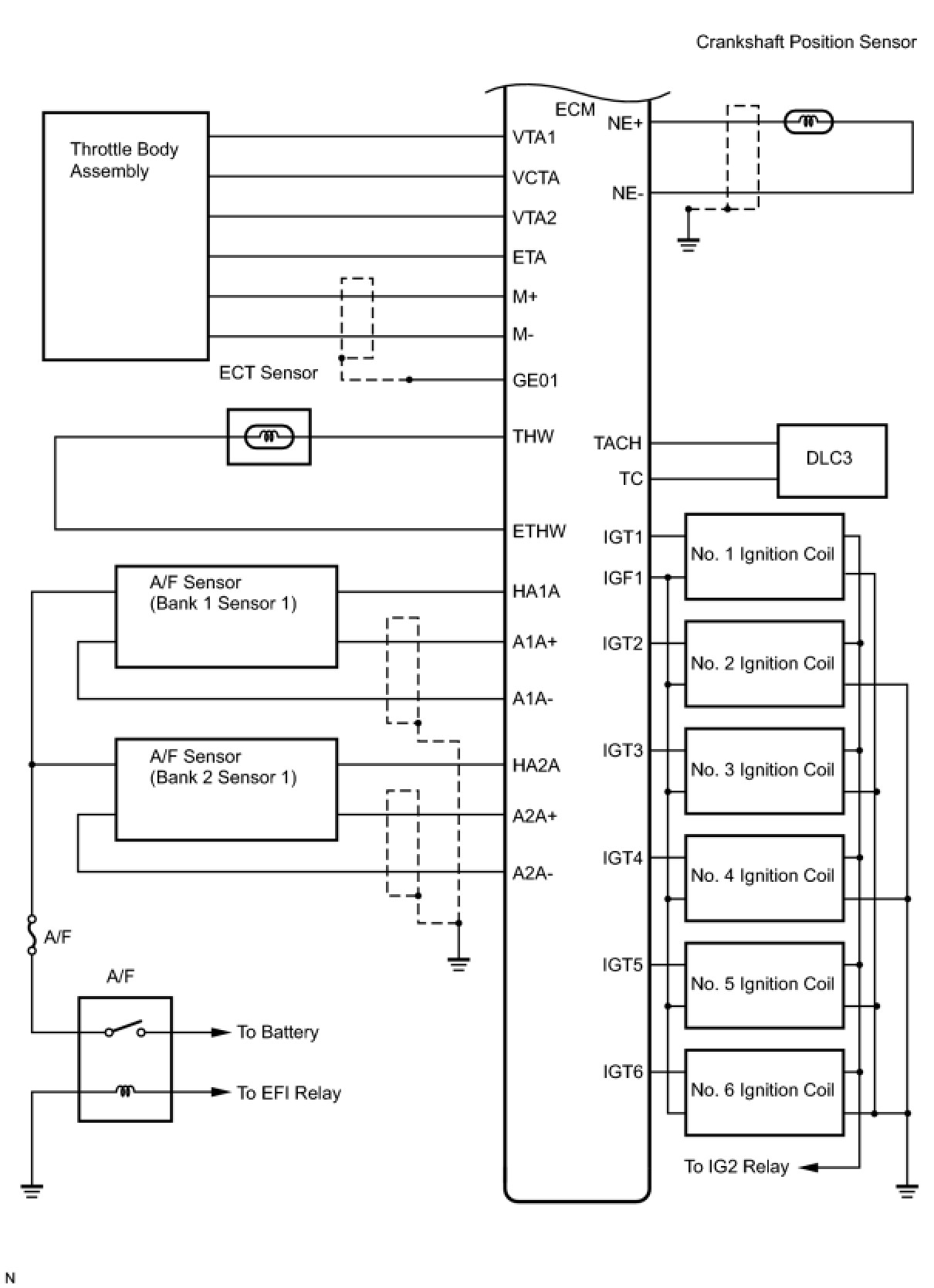

2. With Smart Key System:
