Fail-Safe Chart

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION
(a) When communication fails in any of the CAN bus wire (communication lines) due to a short circuit or other causes, a fail-safe functions, will operate. The fail-safe function that is specified for each system operates to prevent those systems from malfunctioning.

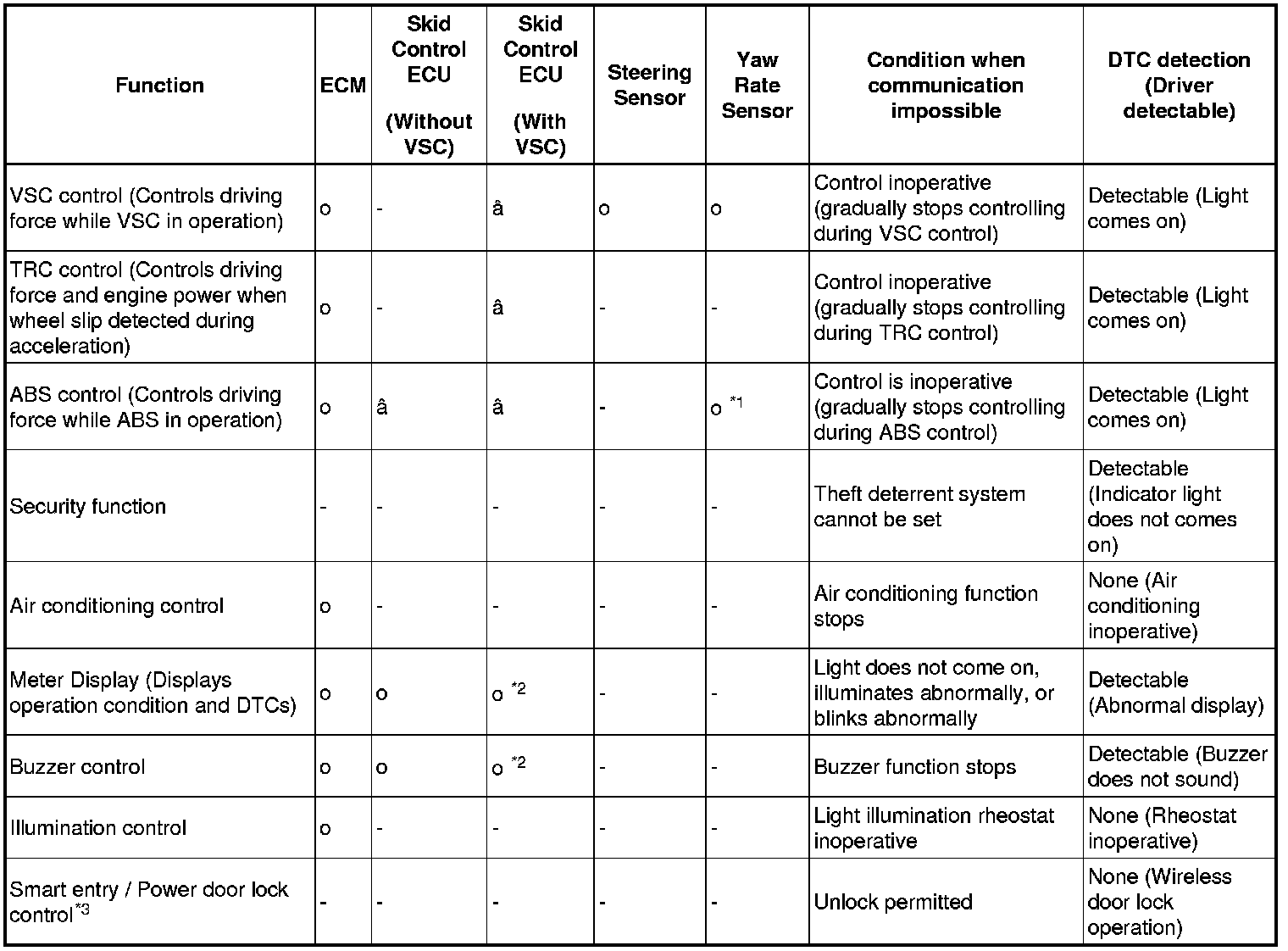

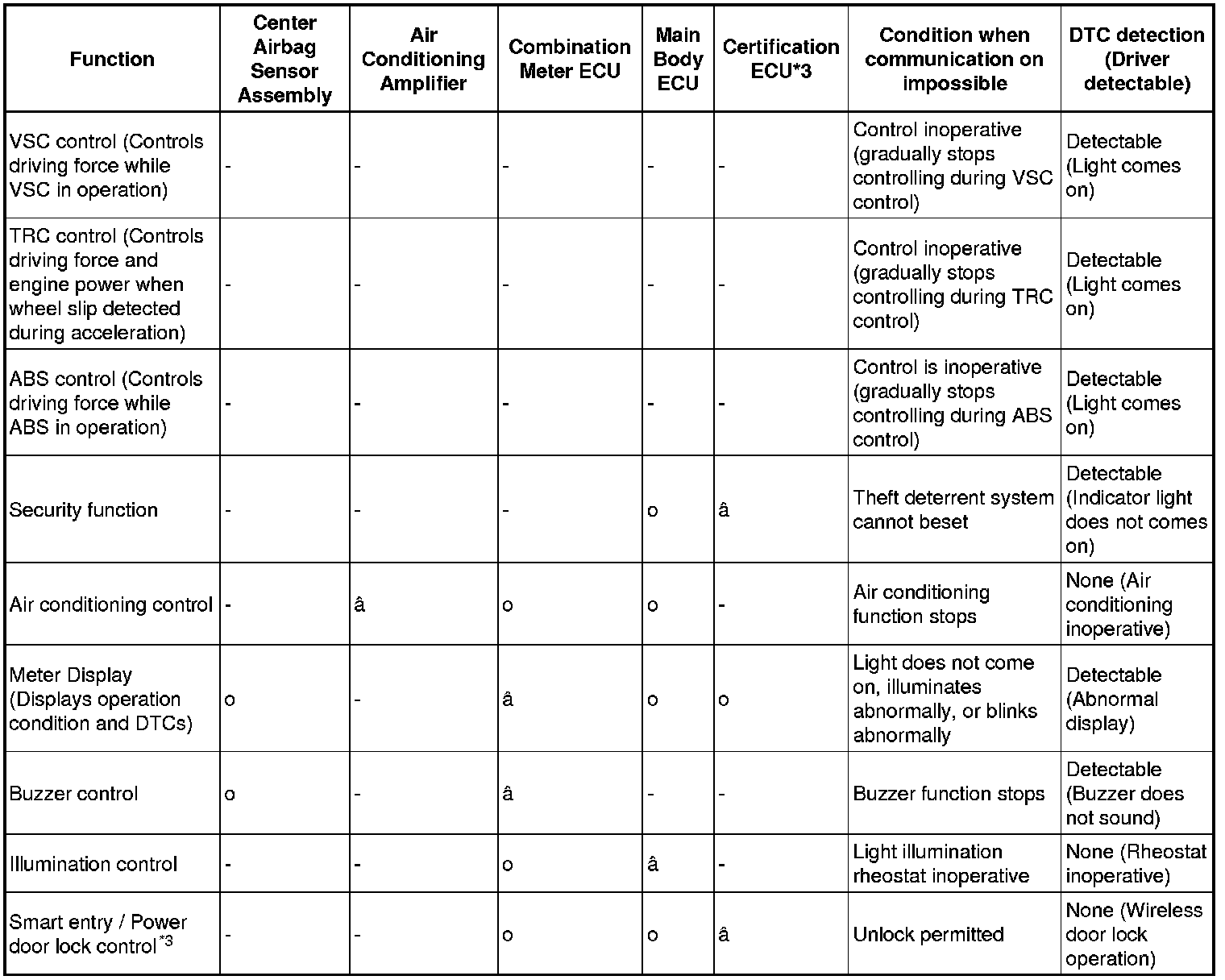

(b) The following chart shows the relationships between components and system functions and effects of communication failure on these functions.





HINT:
- a: Control master
- o: System related
- *1: TMC made
- *2: TMMK made
- *3: with smart key system





HINT:
- a: Control master
- o: System related
- *3: with smart key system
