2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR

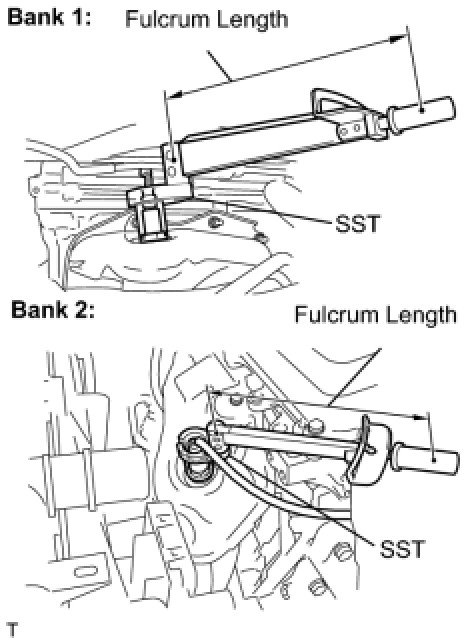

(a) Using SST, install the 2 air fuel ratio sensors to the front pipe assembly.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 32ft-lbf)
(b) Connect the 2 air fuel ratio sensor connectors.
