Removal

2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: REMOVAL

REMOVAL

1. REMOVE AIR FUEL RATIO SENSOR





(a) Disconnect the 2 air fuel ratio sensor connectors.

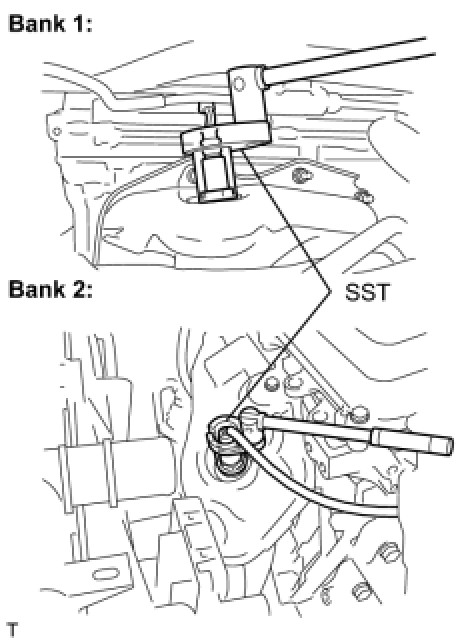

(b) Using SST, remove the 2 air fuel ratio sensors from the front pipe assembly.
SST: 09224-00010
