Installation

2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

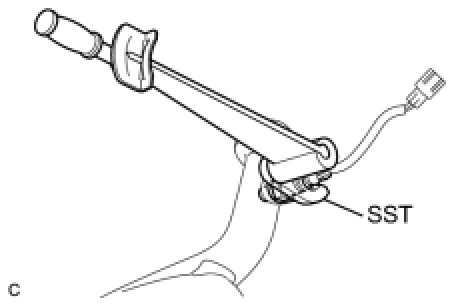

1. INSTALL HEATED OXYGEN SENSOR (for Bank 2)





(a) Using SST, install the heated oxygen sensor.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 32ft-lbf)

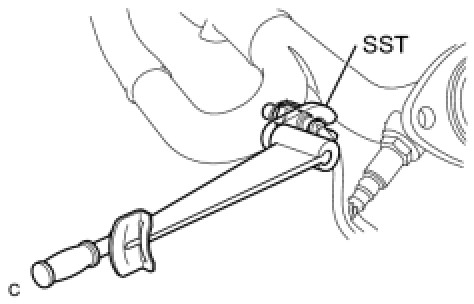

2. INSTALL HEATED OXYGEN SENSOR (for Bank 1)





(a) Using SST, install the heated oxygen sensor.
SST: 09224-00010
3. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation
4. INSTALL ENGINE UNDER COVER LH
5. INSTALL ENGINE UNDER COVER RH
