2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

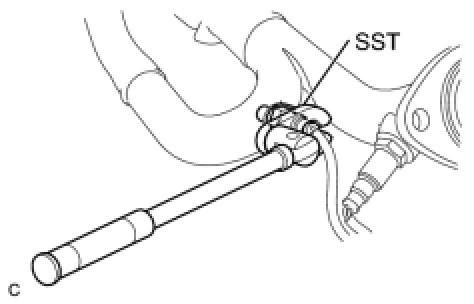

4. REMOVE HEATED OXYGEN SENSOR (for Bank 1)





(a) Using SST, remove the oxygen sensor.
SST: 09224-00010

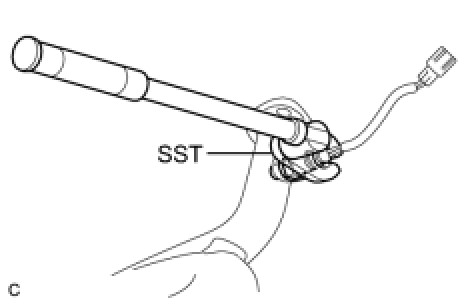

5. REMOVE HEATED OXYGEN SENSOR (for Bank 2)





(a) Using SST, remove the oxygen sensor.
SST: 09224-00010
