Definition of Terms
Definition of Terms

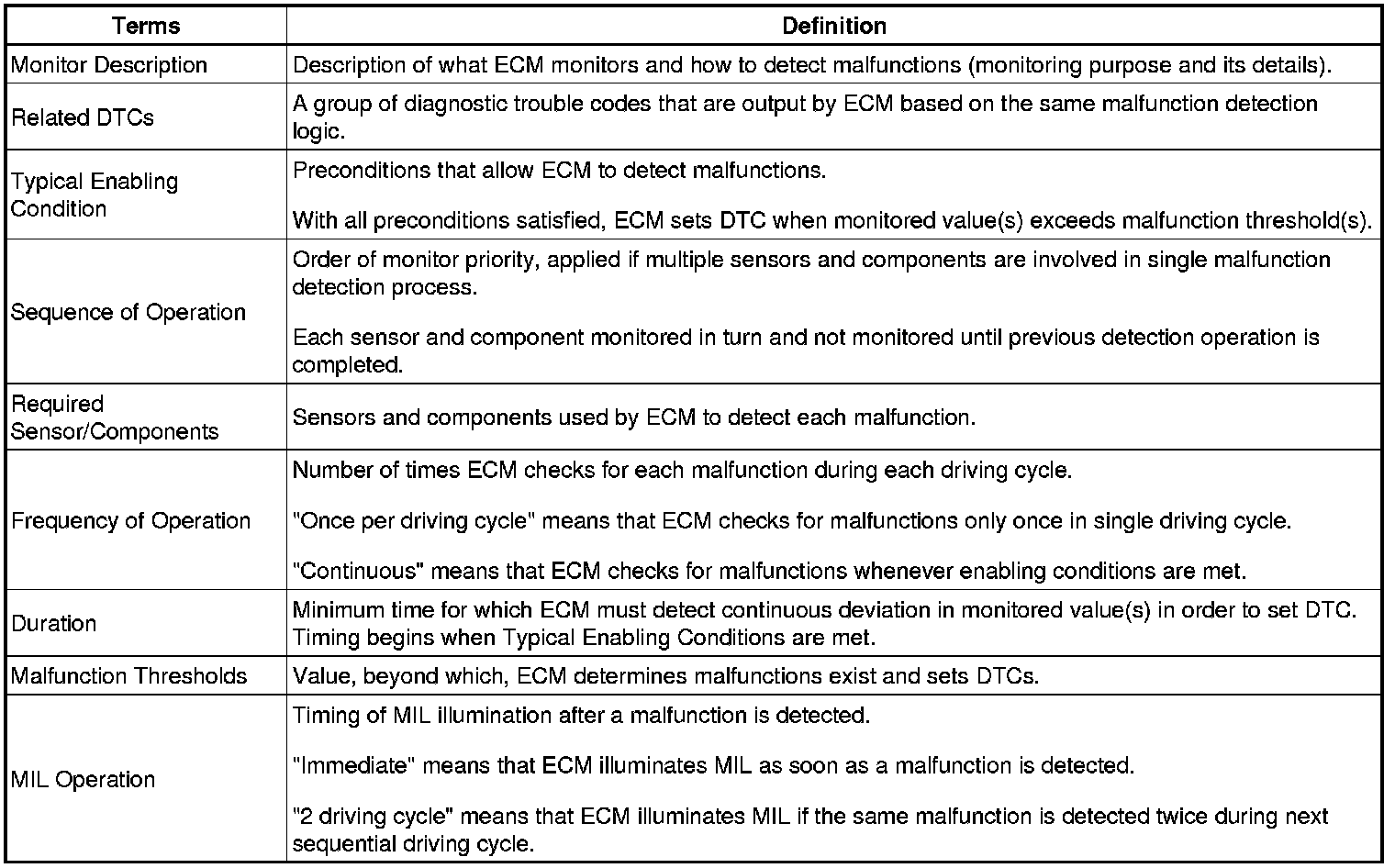

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DEFINITION OF TERMS
DEFINITION OF TERMS
