Installation

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

INSTALLATION

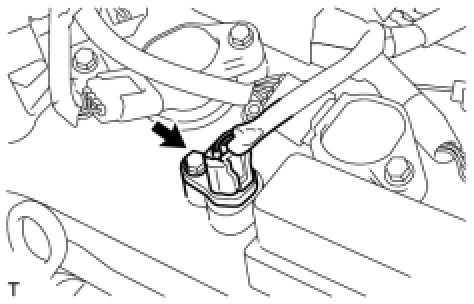

1. INSTALL VVT SENSOR (for Bank 2 Exhaust Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

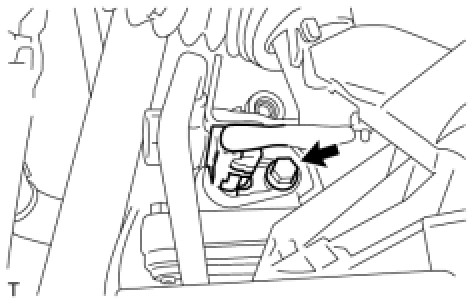

2. INSTALL VVT SENSOR (for Bank 2 Intake Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

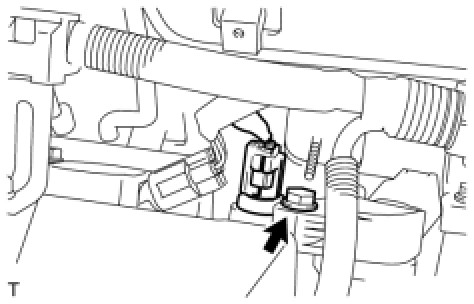

3. INSTALL VVT SENSOR (for Bank 1 Exhaust Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

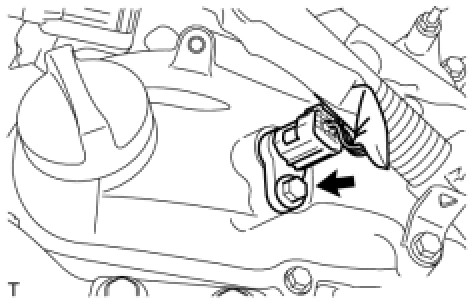

4. INSTALL VVT SENSOR (for Bank 1 Intake Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.
5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation
6. INSTALL NO. 1 AIR CLEANER INLET Installation
7. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
8. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
9. INSTALL AIR CLEANER INLET ASSEMBLY Installation
10. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
11. INSTALL COOL AIR INTAKE DUCT SEAL Installation
12. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY Installation
13. INSTALL WINDSHIELD WIPER MOTOR AND LINK Installation
14. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
15. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation
16. INSTALL FRONT FENDER TO COWL SIDE SEAL LH Installation
17. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Installation
18. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Installation
19. ADD ENGINE COOLANT Testing and Inspection
20. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection
21. INSTALL ENGINE UNDER COVER RH
22. INSTALL ENGINE UNDER COVER LH
