Removal

2GR-FE EMISSION CONTROL: PURGE VALVE (for EVAP): REMOVAL

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
2. REMOVE NO. 1 VACUUM SWITCHING VALVE

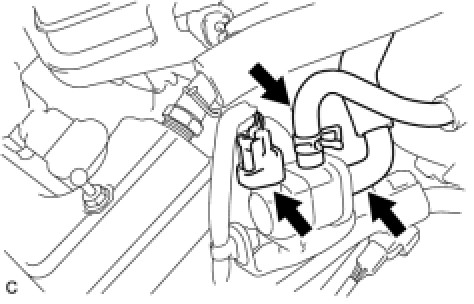

(a) Disconnect the 2 vacuum hoses and No. 1 vacuum switching valve connector.

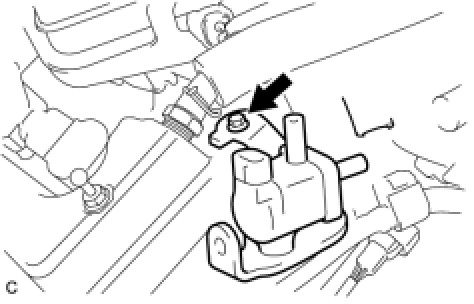

(b) Remove the bolt and No. 1 vacuum switching valve.
