Home >> Toyota >> 2009 >> Camry V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pressure Pulsation Damper >> Service and Repair >> Components

Components

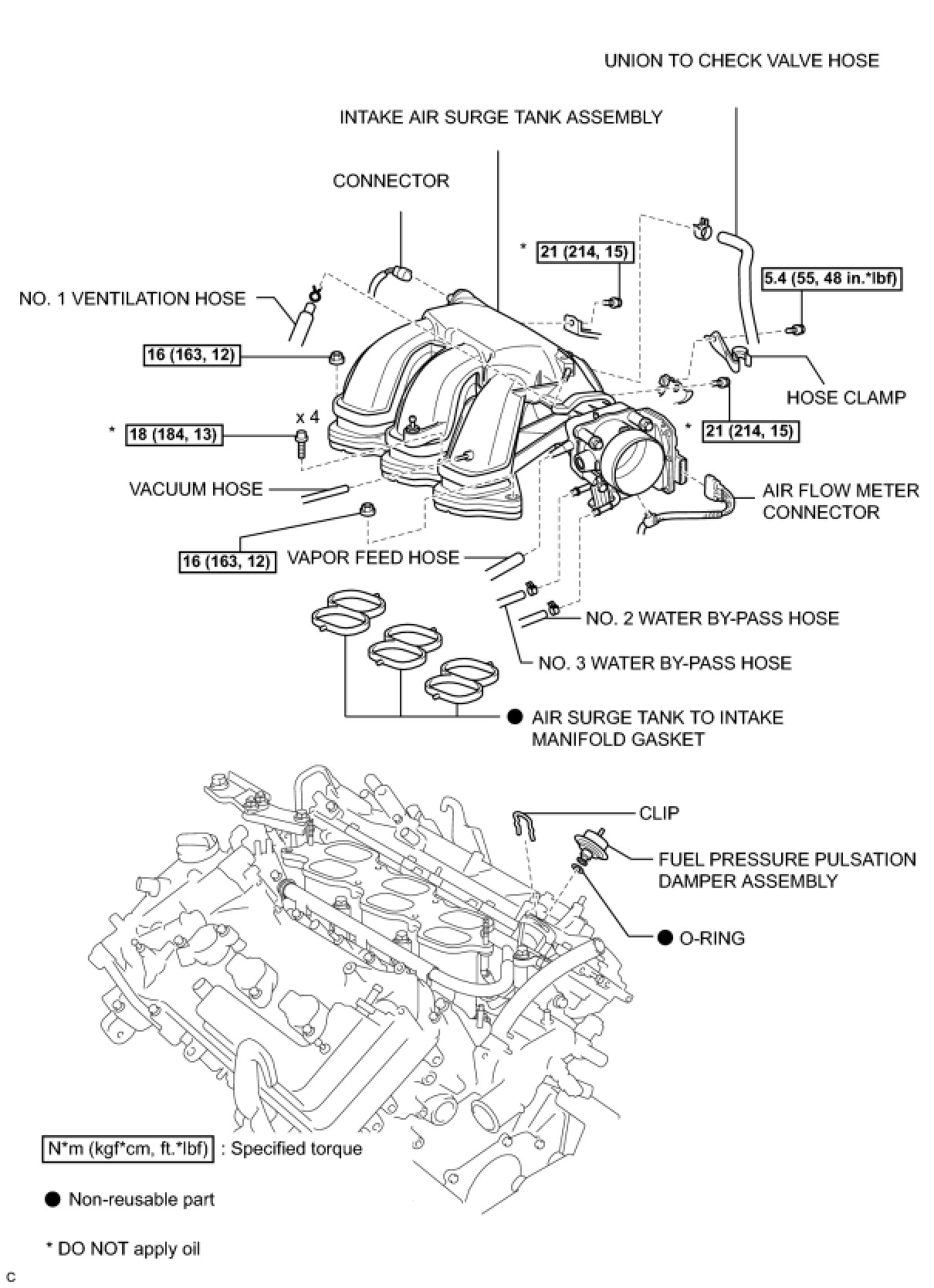

2GR-FE FUEL: FUEL PRESSURE PULSATION DAMPER: COMPONENTS

COMPONENTS

ILLUSTRATION
