Installation

2GR-FE FUEL: FUEL PRESSURE PULSATION DAMPER: INSTALLATION

INSTALLATION

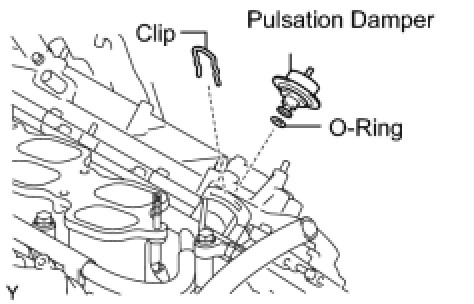

1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY





(a) Apply a light coat of spindle oil or gasoline to a new O-ring and install it to the fuel pressure pulsation damper.
(b) Install the fuel pressure pulsation damper to the fuel delivery pipe.
(c) Install the clip.
2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
4. ADD ENGINE COOLANT Testing and Inspection
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT FOR COOLANT LEAK Testing and Inspection
7. INSPECT FOR FUEL LEAK Testing and Inspection
8. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY Installation
9. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
10. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
11. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation
12. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Installation
13. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
14. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
15. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
