Removal

2GR-FE ENGINE CONTROL SYSTEM: THROTTLE BODY: REMOVAL

REMOVAL

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN ENGINE COOLANT Testing and Inspection
4. REMOVE COOL AIR INTAKE DUCT SEAL Removal
5. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
6. REMOVE AIR CLEANER INLET ASSEMBLY Removal
7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

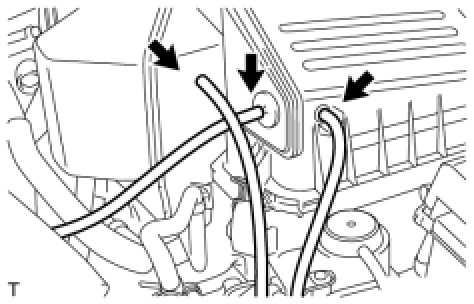

(a) Disconnect the 3 vacuum hoses.

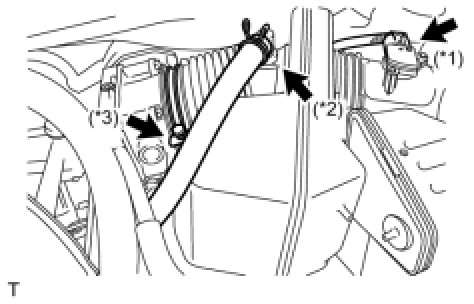

(b) Disconnect the mass air flow meter connector (*1).
(c) Disconnect the No. 2 ventilation hose (*2).
(d) Disconnect the hose band (*3).

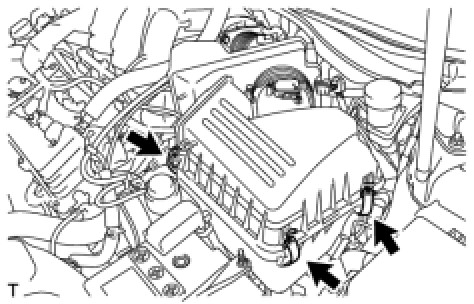

(e) Disconnect the 3 bands, and remove the air cleaner cap sub-assembly.
8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal
9. REMOVE NO. 1 AIR CLEANER INLET Removal
10. REMOVE THROTTLE BODY

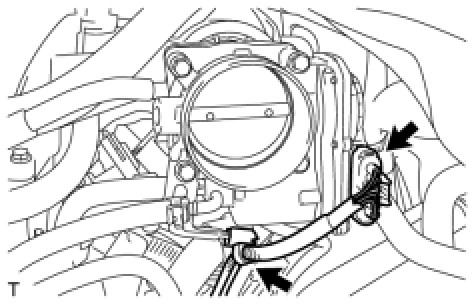

(a) Disconnect the throttle body connector and clamp.

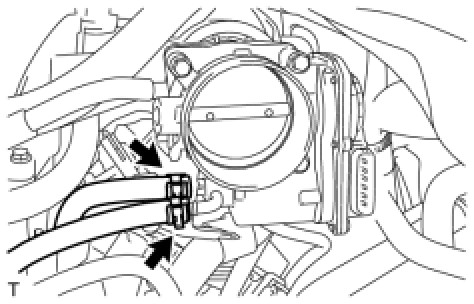

(b) Disconnect the 2 water by-pass hoses from the throttle body.
