Ignition System: Description and Operation
2GR-FE IGNITION:
IGNITION SYSTEM

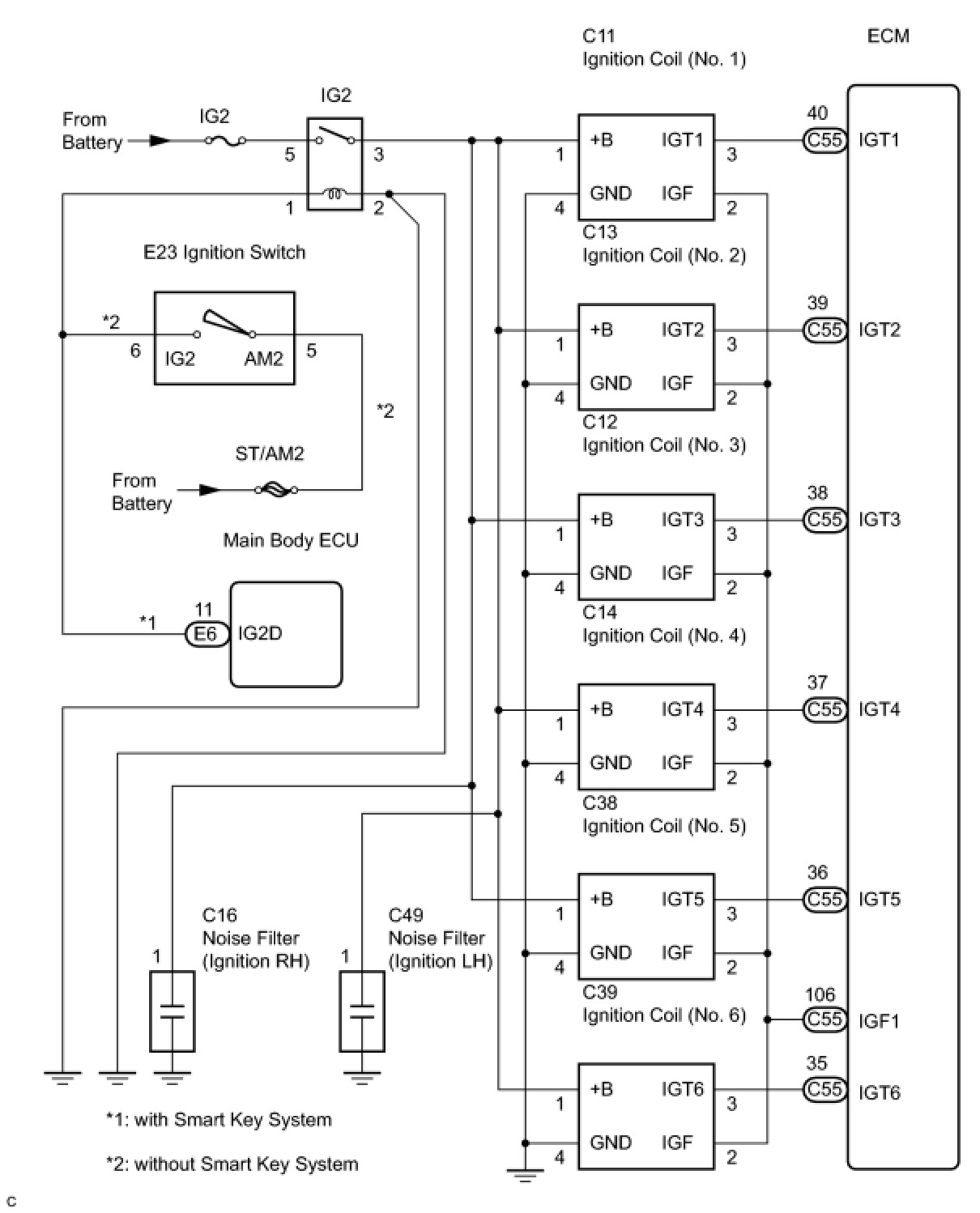

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
