Crankshaft Position Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

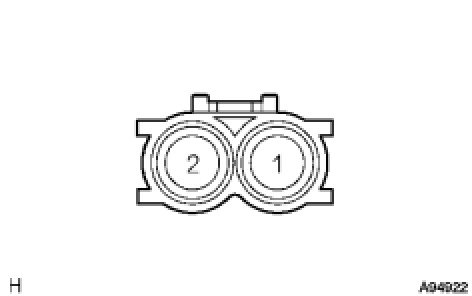

(a) Using an ohmmeter, measure the resistance between the terminals.
Resistance:
1,630 to 2,740 Ohms at cold
2,065 to 3,225 Ohms at hot
NOTICE: The terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).
If the resistance is not as specified, replace the sensor.
