Backup Lamp Switch: Testing and Inspection

LIGHTING: BACK-UP LIGHT SWITCH: INSPECTION

INSPECTION

1. INSPECT BACK-UP LIGHT BULB (for Manual Transmission)

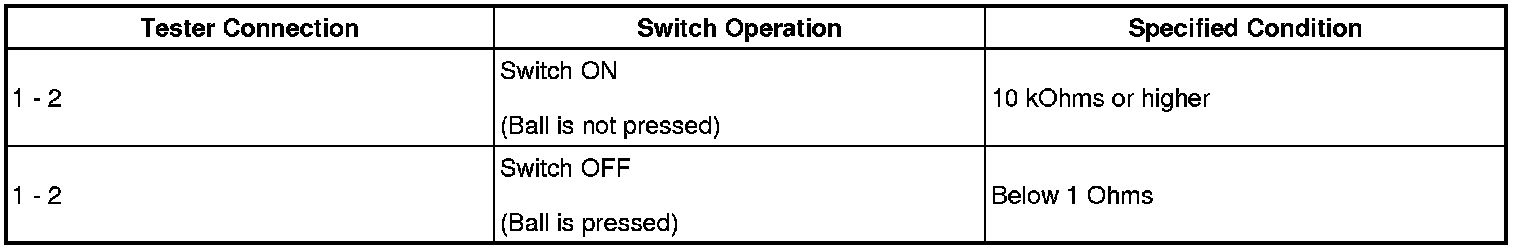

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the back-up light switch.
