Flex Plate

DRIVE PLATE





Install the front spacer, drive plate and rear spacer on the crankshaft.

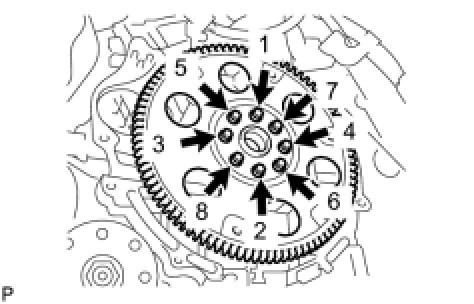

Install and tighten the 8 mounting bolts uniformly in several steps and in the sequence shown in the illustration.

Torque 83 Nm (850 kgf-cm, 61 ft-lbf)
