Transmission Pan

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

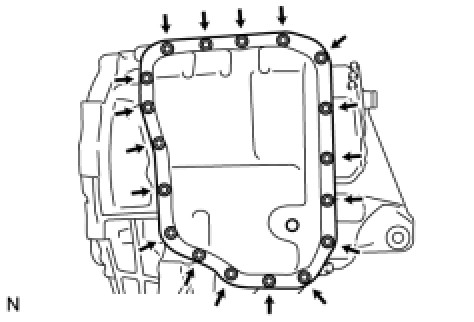

Install the automatic transaxle oil pan sub-assembly and a new gasket to the transaxle case with the 18 bolts.
Torque 7.0 Nm (71 kgf-cm, 62 in-lbf)
