Torque Specifications








SERVICE SPECIFICATIONS: 2GR-FE COOLING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

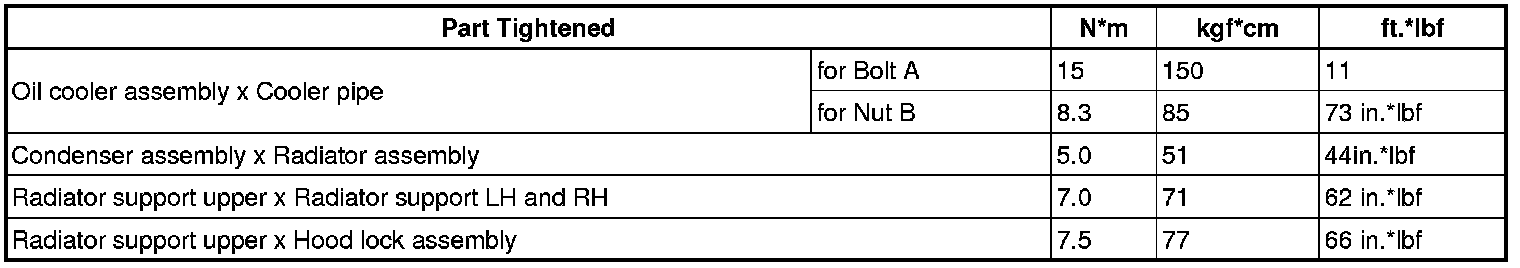

COOLANT

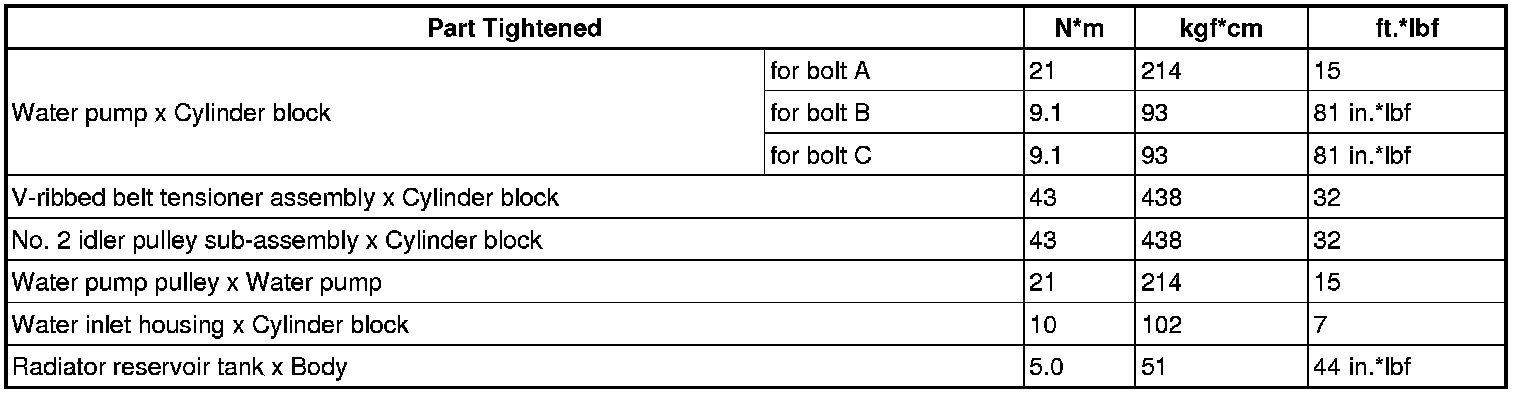

WATER PUMP





THERMOSTAT





RADIATOR
