Toyota
>>
2009
>>
Camry V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Locations
>>
Starting - Smart Key System
Starting - Smart Key System

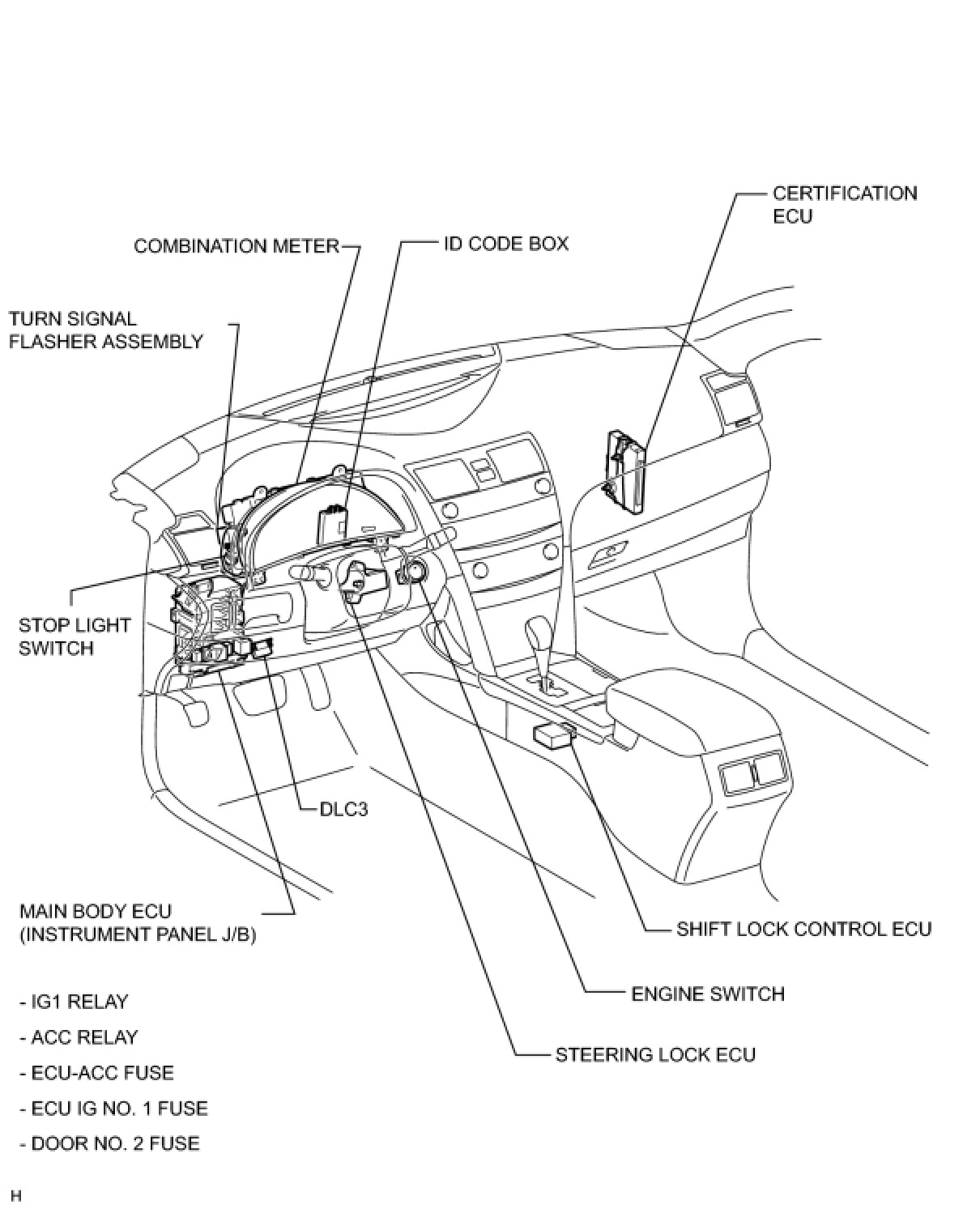

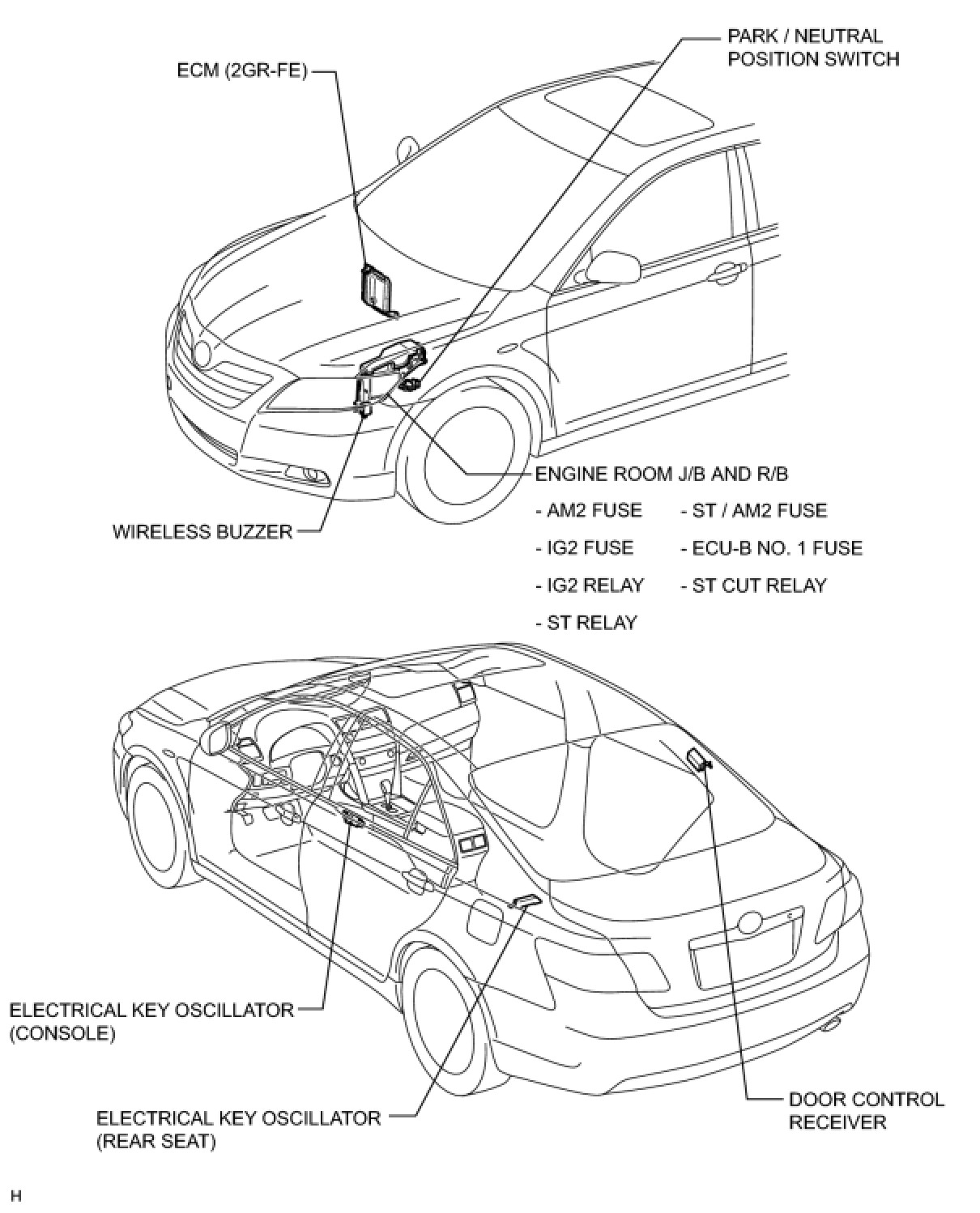

2GR-FE STARTING: SMART KEY SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
