U660E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL TRANSAXLE CASE NO. 2 OIL SEAL

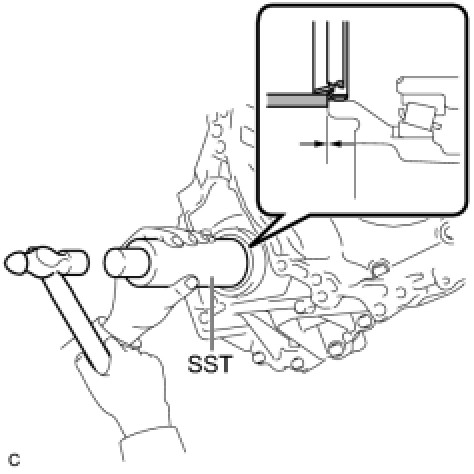

(a) Using SST and a hammer, install a new oil seal to the transaxle case.
SST: 09316-10010
SST: 09950-70010
09951-07100
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Coat the lip of the oil seal with MP grease.
2. INSTALL FRONT TRANSAXLE CASE NO. 1 OIL SEAL

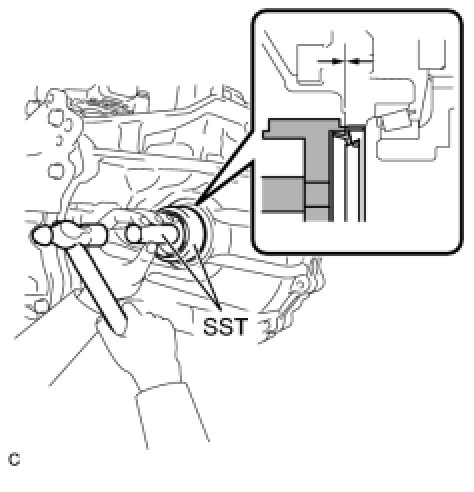

(a) Using SST and a hammer, install a new oil seal to the transaxle housing.
SST: 09308-14010
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Coat the lip of the oil seal with MP grease.
3. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
5. INSTALL FRONT AXLE ASSEMBLY LH Installation
6. INSTALL FRONT AXLE ASSEMBLY RH Installation
7. INSTALL FRONT SUSPENSION LOWER NO. 1 ARM LH Installation
8. INSTALL FRONT SUSPENSION LOWER NO. 1 ARM RH Installation
9. INSTALL TIE ROD ASSEMBLY LH Installation
10. INSTALL TIE ROD ASSEMBLY RH Installation
11. INSTALL FRONT SPEED SENSOR LH Installation
12. INSTALL FRONT SPEED SENSOR RH Installation
13. INSTALL FRONT STABILIZER LINK ASSEMBLY LH Installation
14. INSTALL FRONT STABILIZER LINK ASSEMBLY RH Installation
15. INSTALL FRONT AXLE HUB NUT LH Installation
16. INSTALL FRONT AXLE HUB NUT RH Installation
17. INSTALL FRONT WHEELS Installation
18. ADD AUTOMATIC TRANSAXLE FLUID
HINT: Procedures

19. ADJUST FRONT WHEEL ALIGNMENT
HINT: Service and Repair

20. CHECK ABS SPEED SENSOR SIGNAL
(a) ABS: Test Mode Procedure
(b) VSC (for BOSCH): Test Mode Procedure
(c) VSC (for ADVICS): Test Mode Procedure
