U660E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: REMOVAL

REMOVAL

1. DRAIN AUTOMATIC TRANSAXLE FLUID Removal
2. REMOVE FRONT WHEELS
3. REMOVE FRONT AXLE HUB NUT LH Removal
4. REMOVE FRONT AXLE HUB NUT RH Removal
5. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal
6. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH Removal
7. SEPARATE FRONT SPEED SENSOR LH Removal
8. SEPARATE FRONT SPEED SENSOR RH Removal
9. SEPARATE TIE ROD ASSEMBLY LH Removal
10. SEPARATE TIE ROD ASSEMBLY RH Removal
11. SEPARATE FRONT SUSPENSION LOWER NO. 1 ARM LH Removal
12. SEPARATE FRONT SUSPENSION LOWER NO. 1 ARM RH Removal
13. SEPARATE FRONT AXLE ASSEMBLY LH Removal
14. SEPARATE FRONT AXLE ASSEMBLY RH Removal
15. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal
16. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal
17. SECURE FRONT AXLE HUB SUB-ASSEMBLY Removal

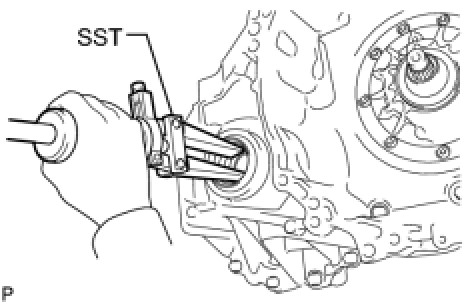

18. REMOVE TRANSAXLE CASE NO. 2 OIL SEAL





(a) Using SST, remove the oil seal from the transaxle case.
SST: 09308-00010

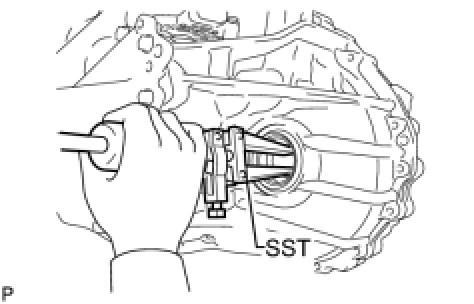

19. REMOVE FRONT TRANSAXLE CASE NO. 1 OIL SEAL





(a) Using SST, remove the oil seal from the transaxle housing.
SST: 09308-00010
