Inspection

U660E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH

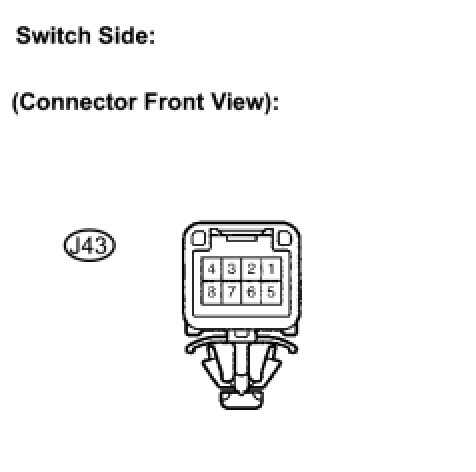

(a) Measure the resistance between each terminal of the shift lock control unit assembly when the shift lever is moved to each position.

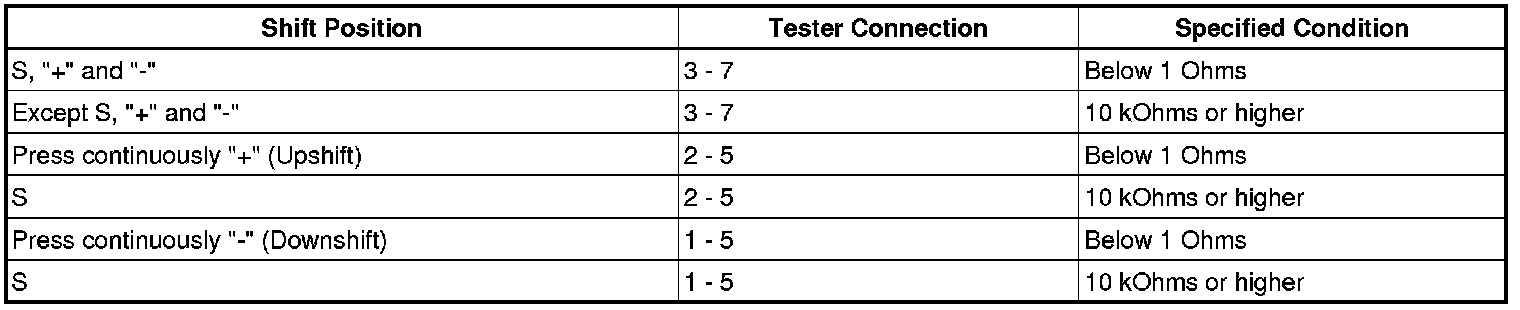

Standard resistance:





If the resistance value is not as specified, replace the shift lock control ECU.
