Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Drive Axles, Bearings and Joints
>>
Axle Shaft Assembly
>>
Service and Repair
>>
Removal and Replacement
>>
Front Drive Shaft (for TMC Made)
>>
Components
Components

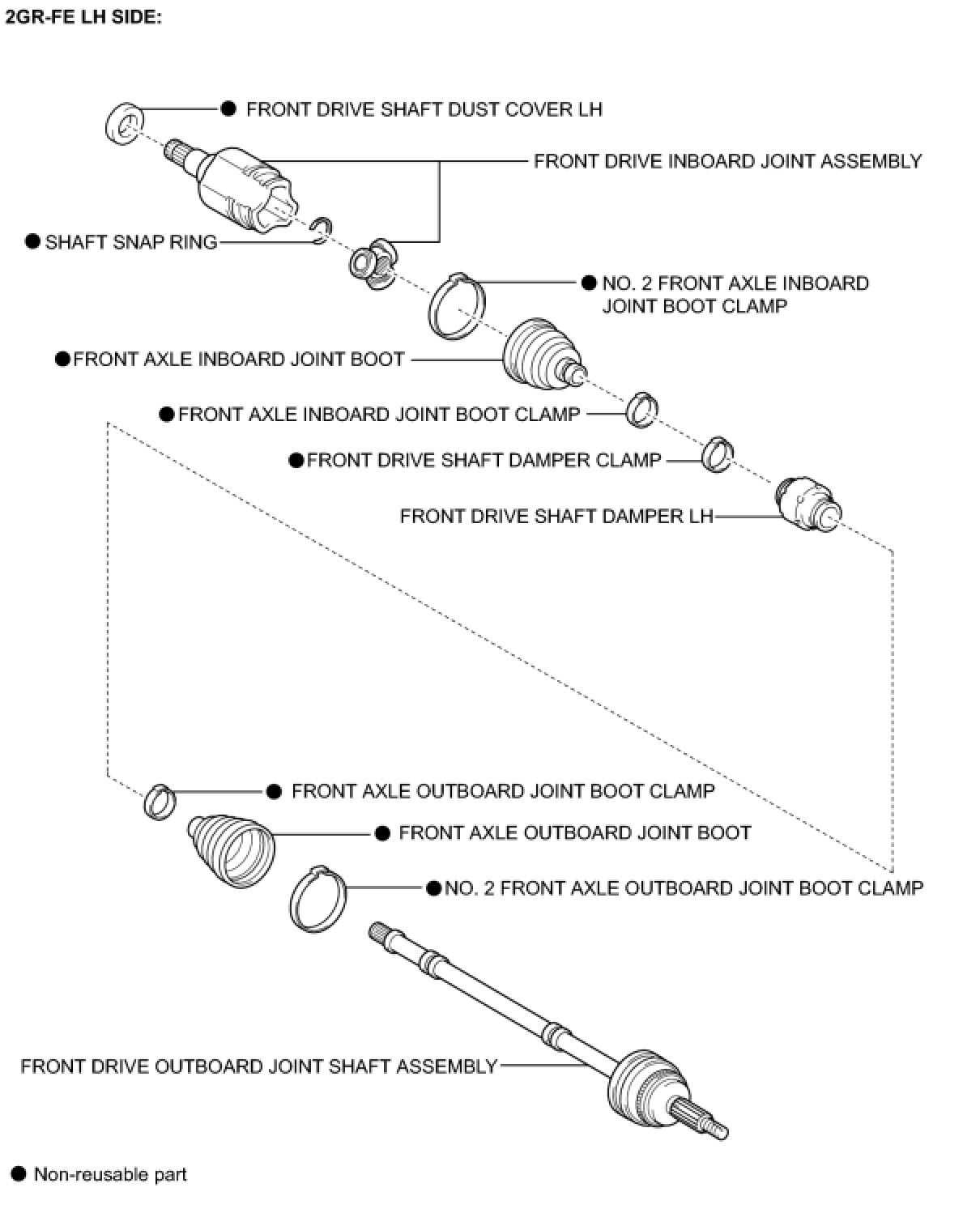

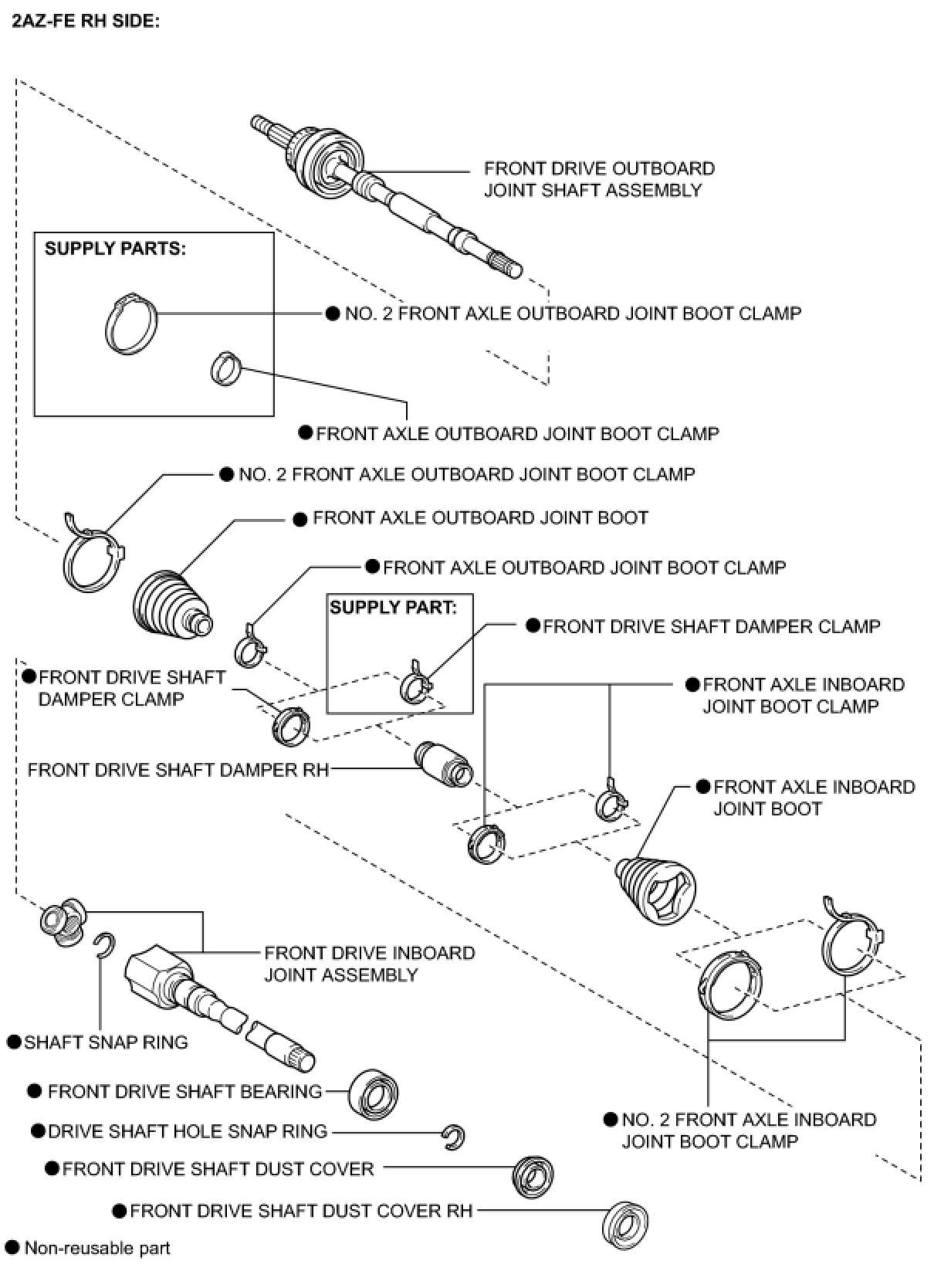

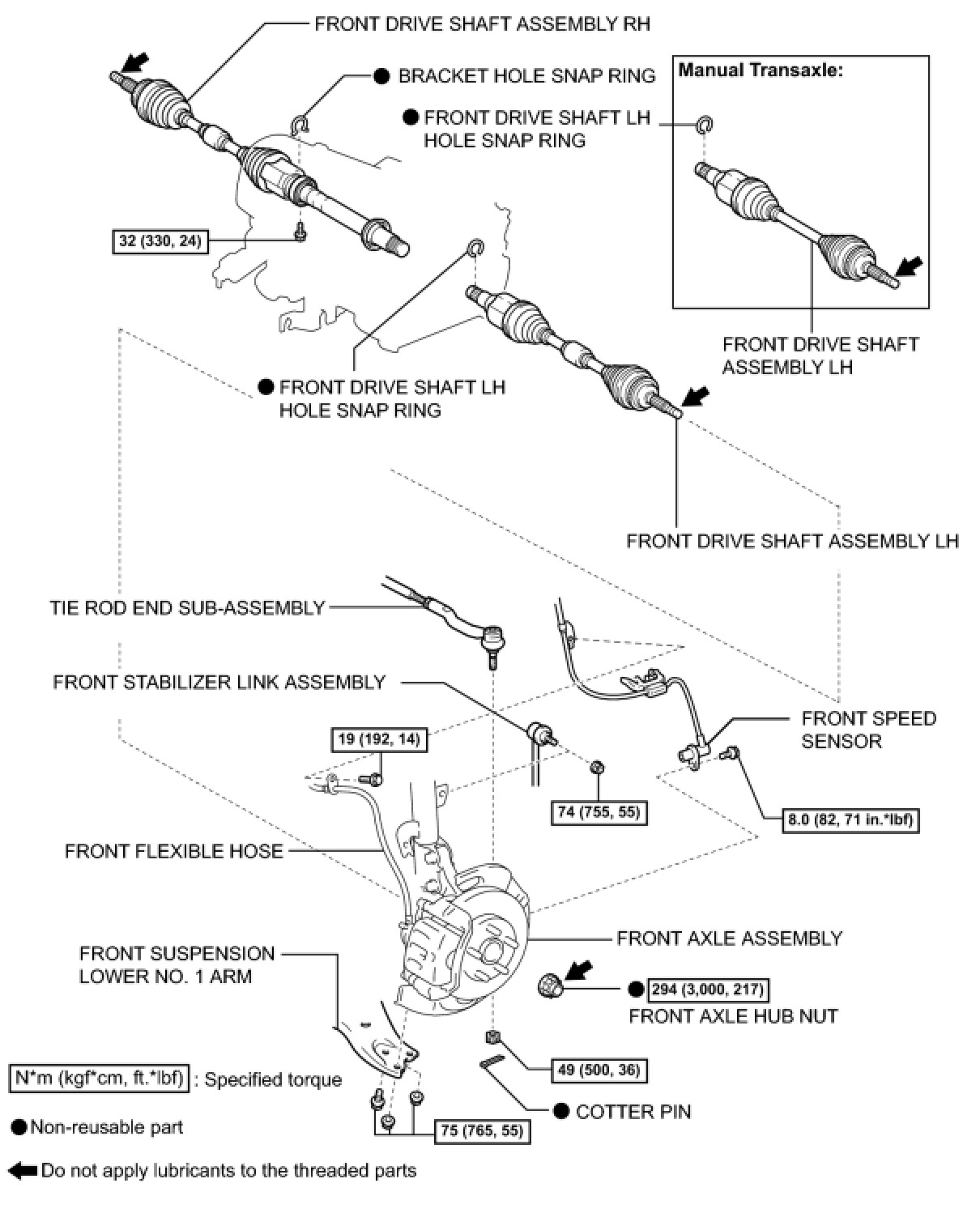

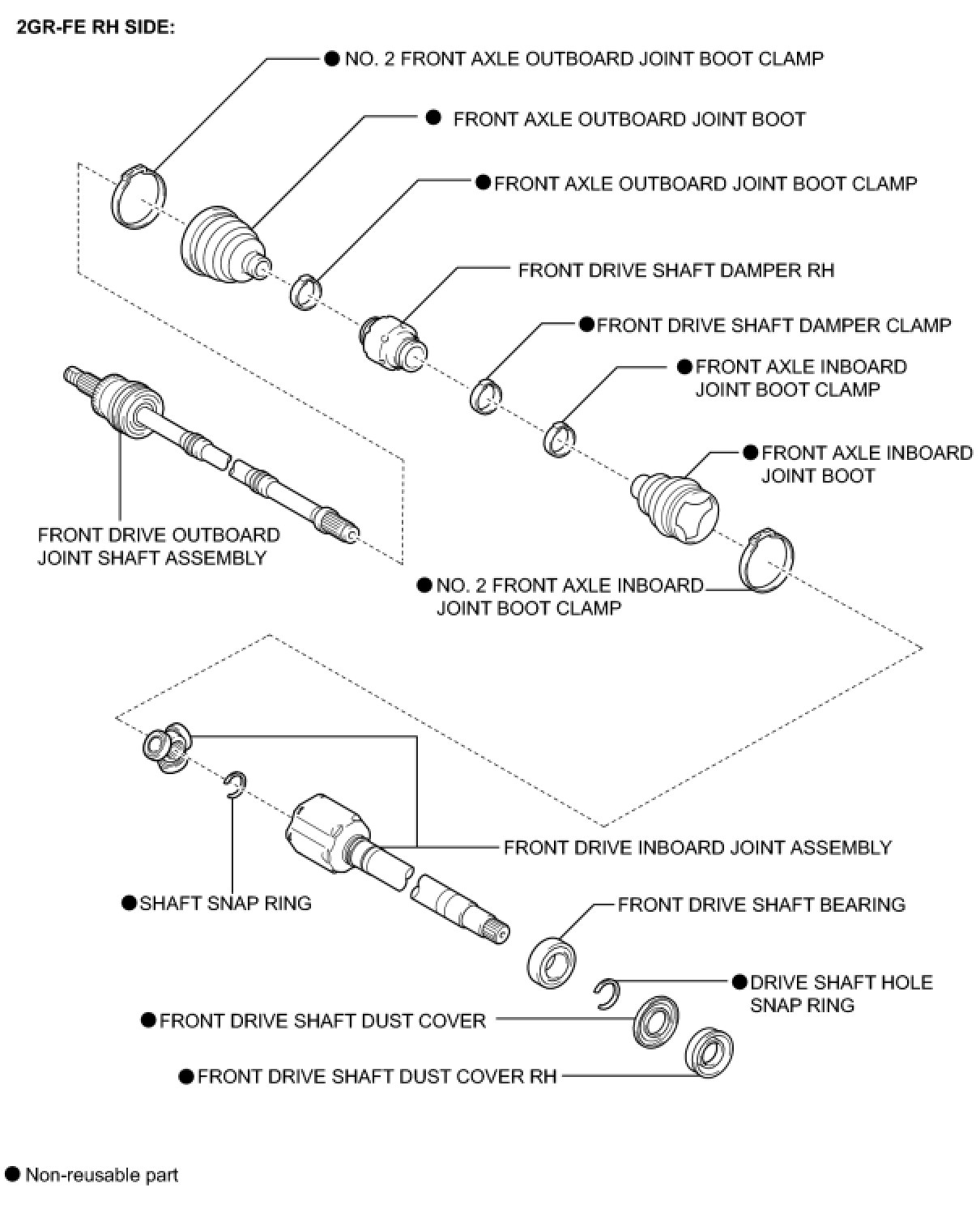

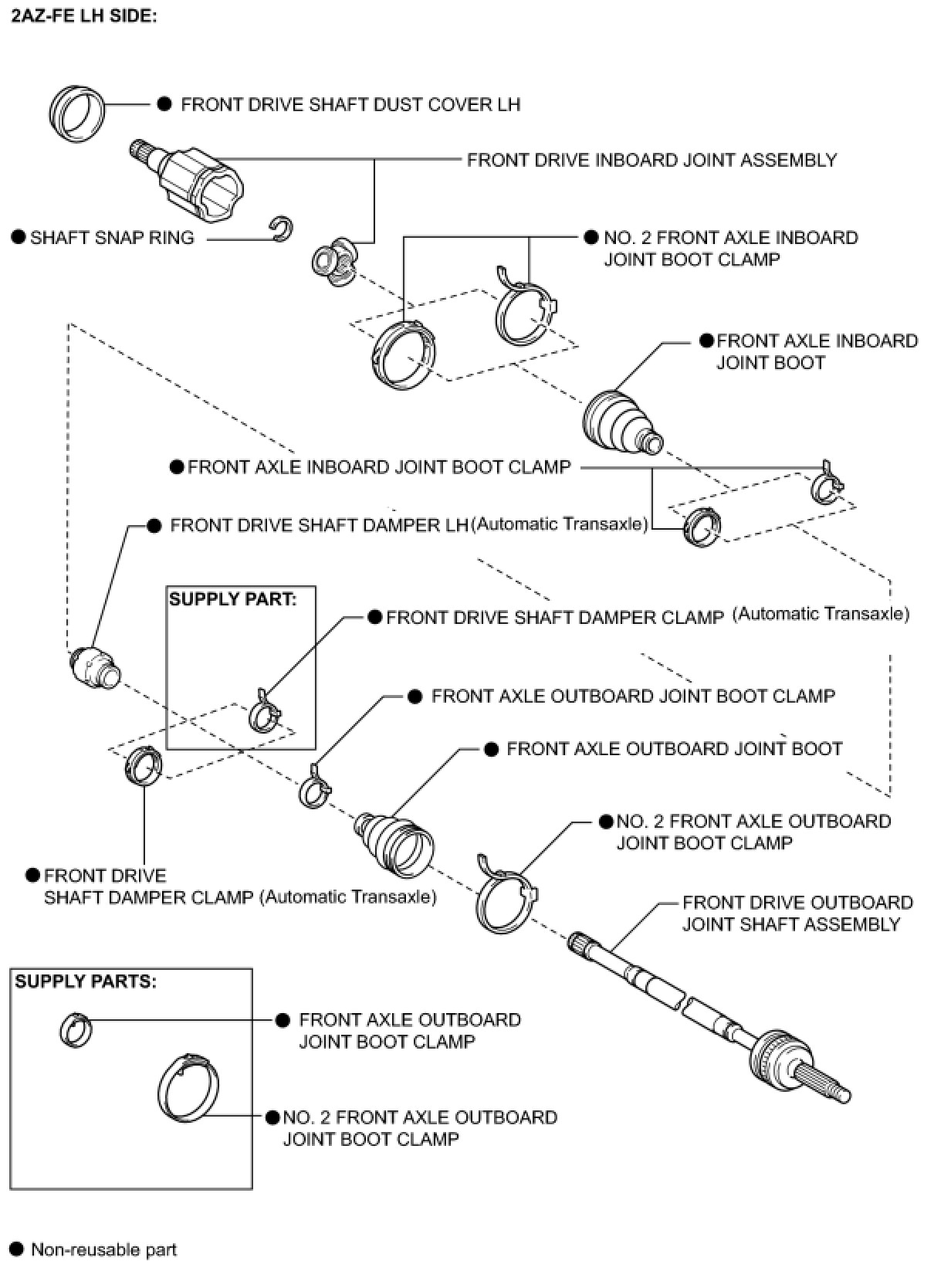

DRIVE SHAFT: FRONT DRIVE SHAFT (for TMC Made): COMPONENTS
COMPONENTS
ILLUSTRATION
