U660E AUTOMATIC TRANSAXLE: TCM: REMOVAL

REMOVAL
NOTICE: When the TCM is replaced, the existing transaxle compensation codes must be input into the new TCM Registration.

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE BATTERY Removal
3. REMOVE AIR CLEANER INLET ASSEMBLY Removal
4. REMOVE NO. 1 AIR CLEANER INLET Removal
5. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY Removal
6. REMOVE TCM

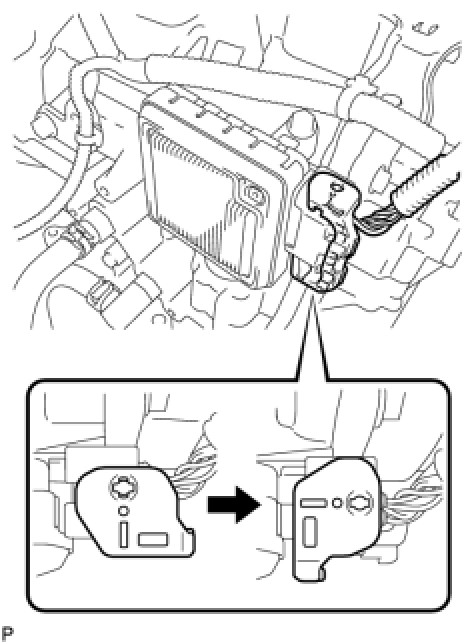

(a) Turn the lock lever and disconnect the connector from the TCM.

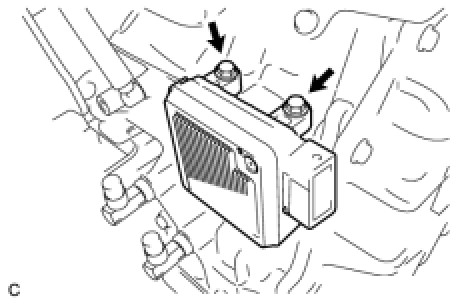

(b) Remove the 2 bolts and TCM from the transaxle.
