Removal

WIPER AND WASHER: FRONT WASHER MOTOR: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Removal
2. REMOVE FRONT BUMPER ASSEMBLY (w/o Fog Light) Removal
3. REMOVE FRONT BUMPER ASSEMBLY (w/ Fog Light) Removal
4. DRAIN WASHER FLUID

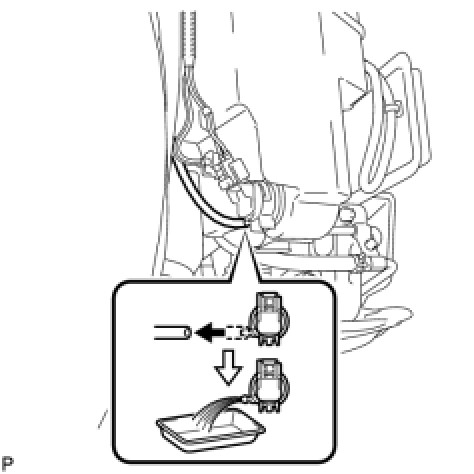

(a) Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
5. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

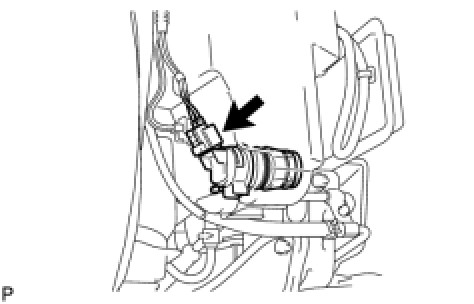

(a) Disconnect the connector.
(b) Remove the windshield washer motor and pump assembly.
