LIN Communication System
NETWORKING: LIN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

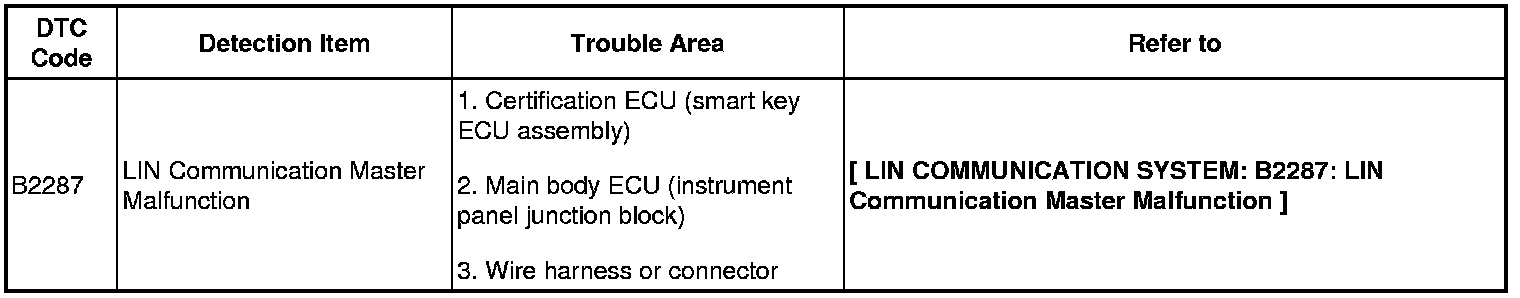

1. MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK) DIAGNOSTIC TROUBLE CODE CHART
Main Body ECU (Instrument Panel Junction Block)
B2287:

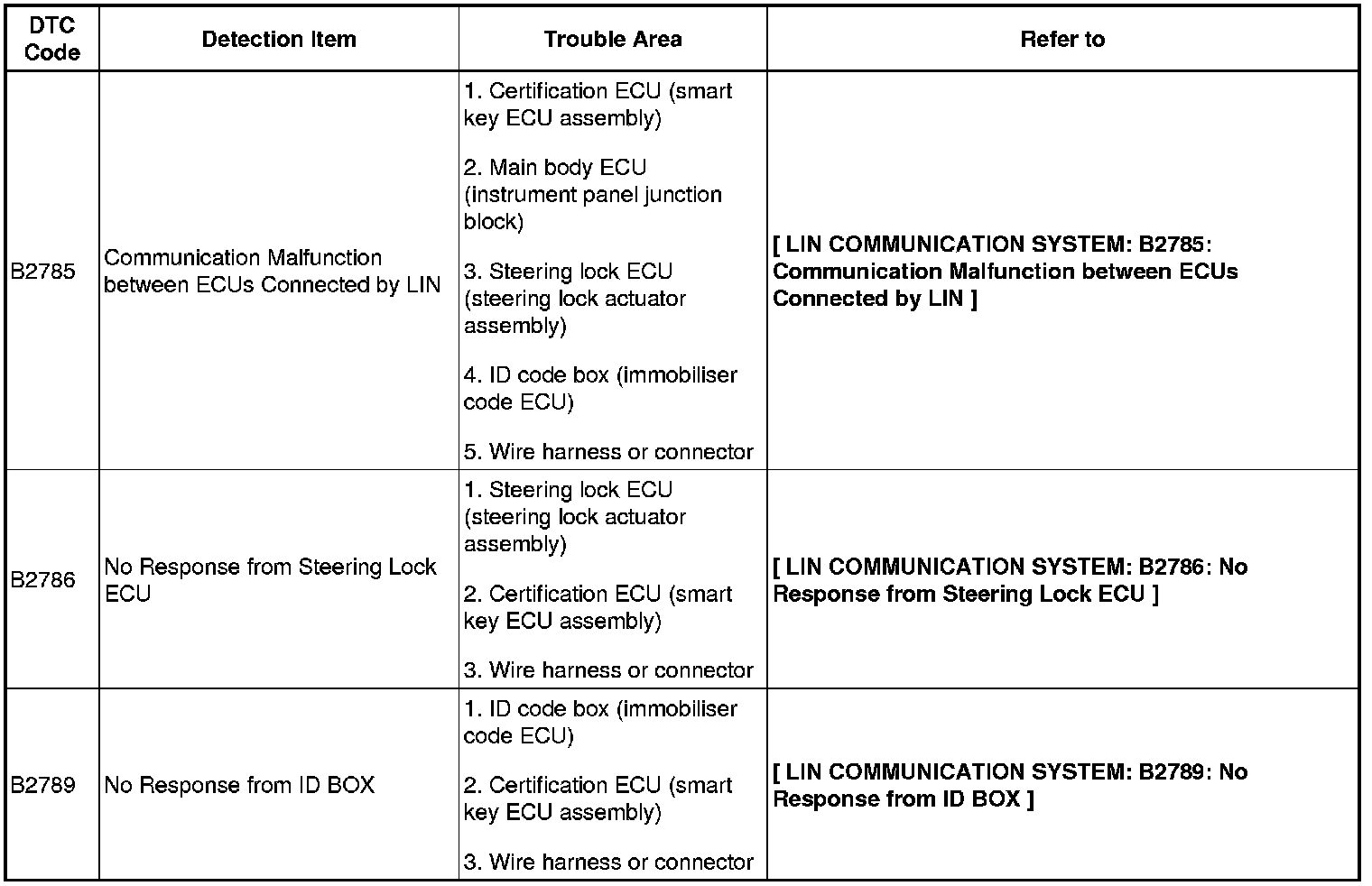

2. CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) DIAGNOSTIC TROUBLE CODE CHART
Certification ECU (Smart Key ECU Assembly)
