Navigation System
NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
Communication Diagnosis

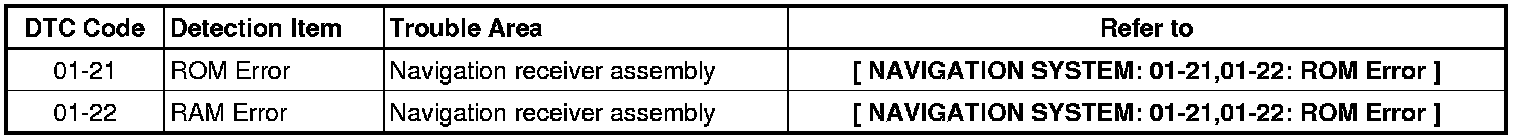

01-21 - 01-22:
SW

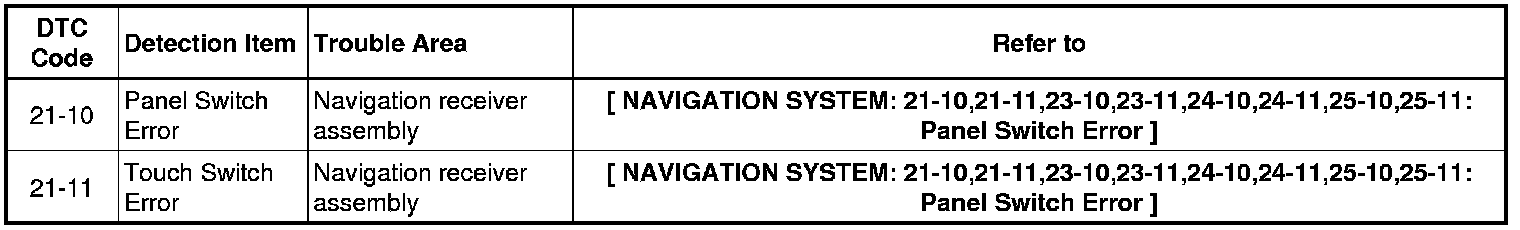

21-10 - 21-11:
SW with Name

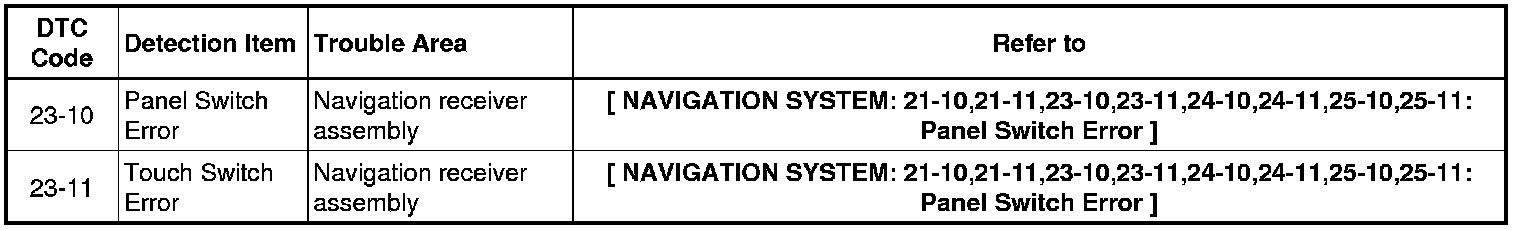

23-10 - 23-11:
SW Converting
24-10 - 24-11:
Command SW
25-10 - 25-11:
Front Monitor

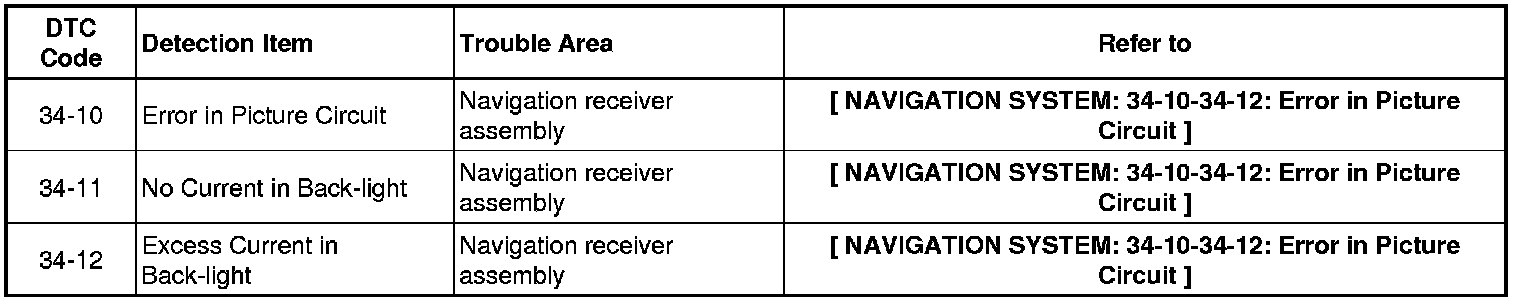

34-10 - 34-12:
Navi

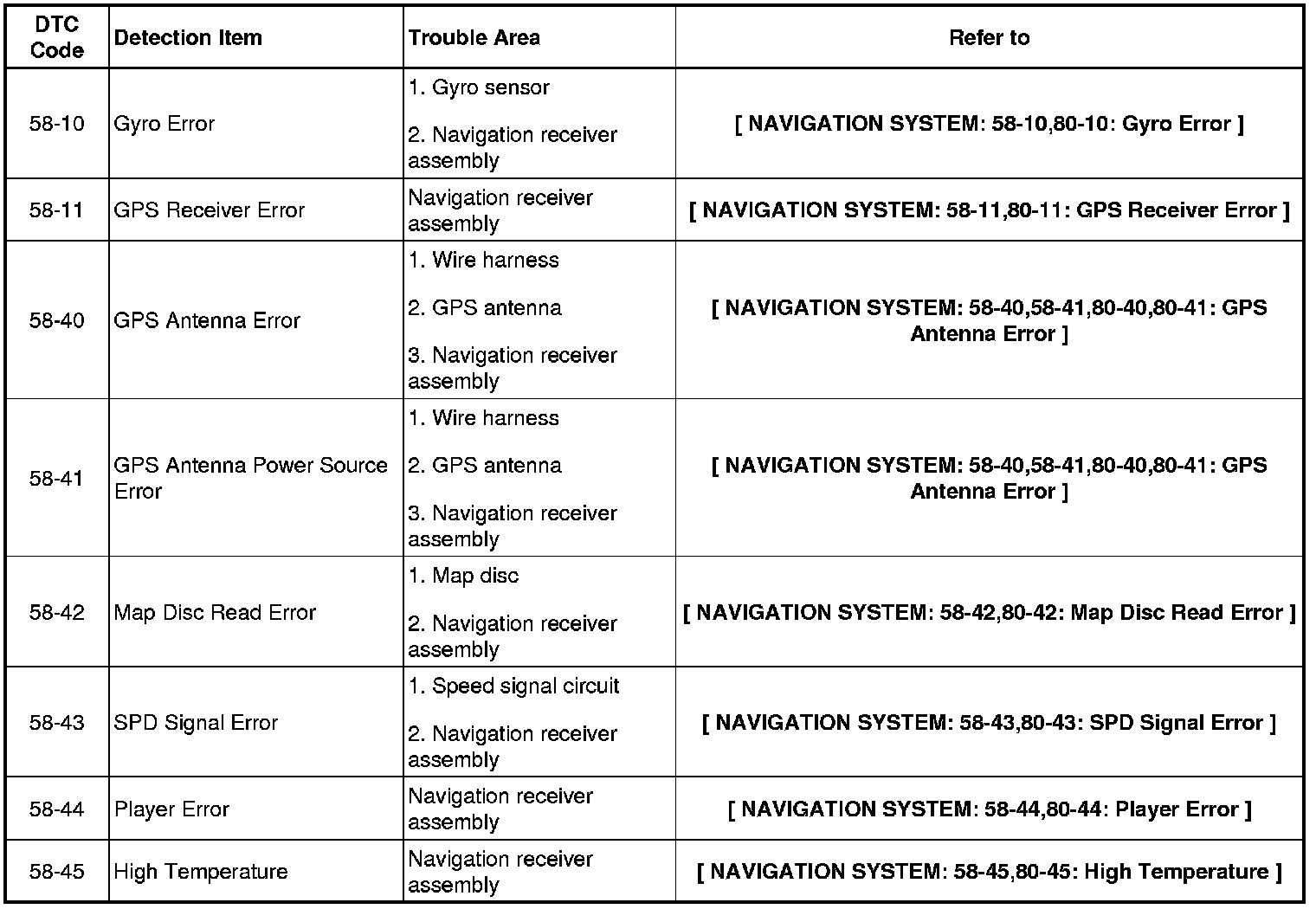

58-10 - 58-45:
Radio Unit

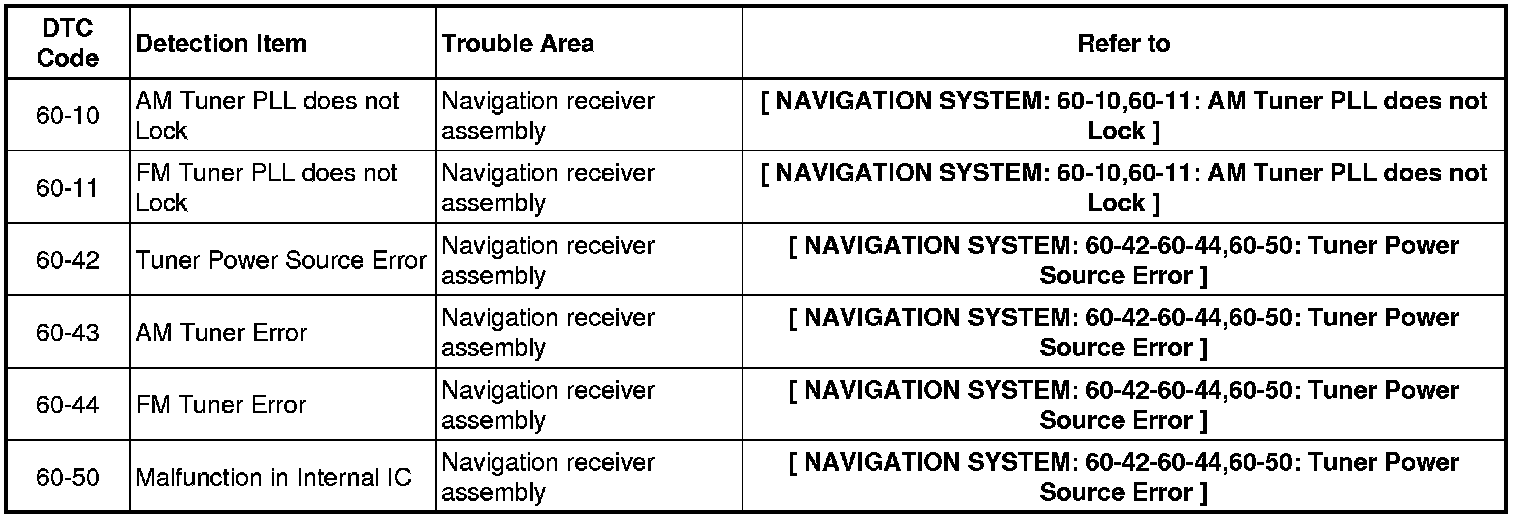

60-10 - 60-50:
CD Player

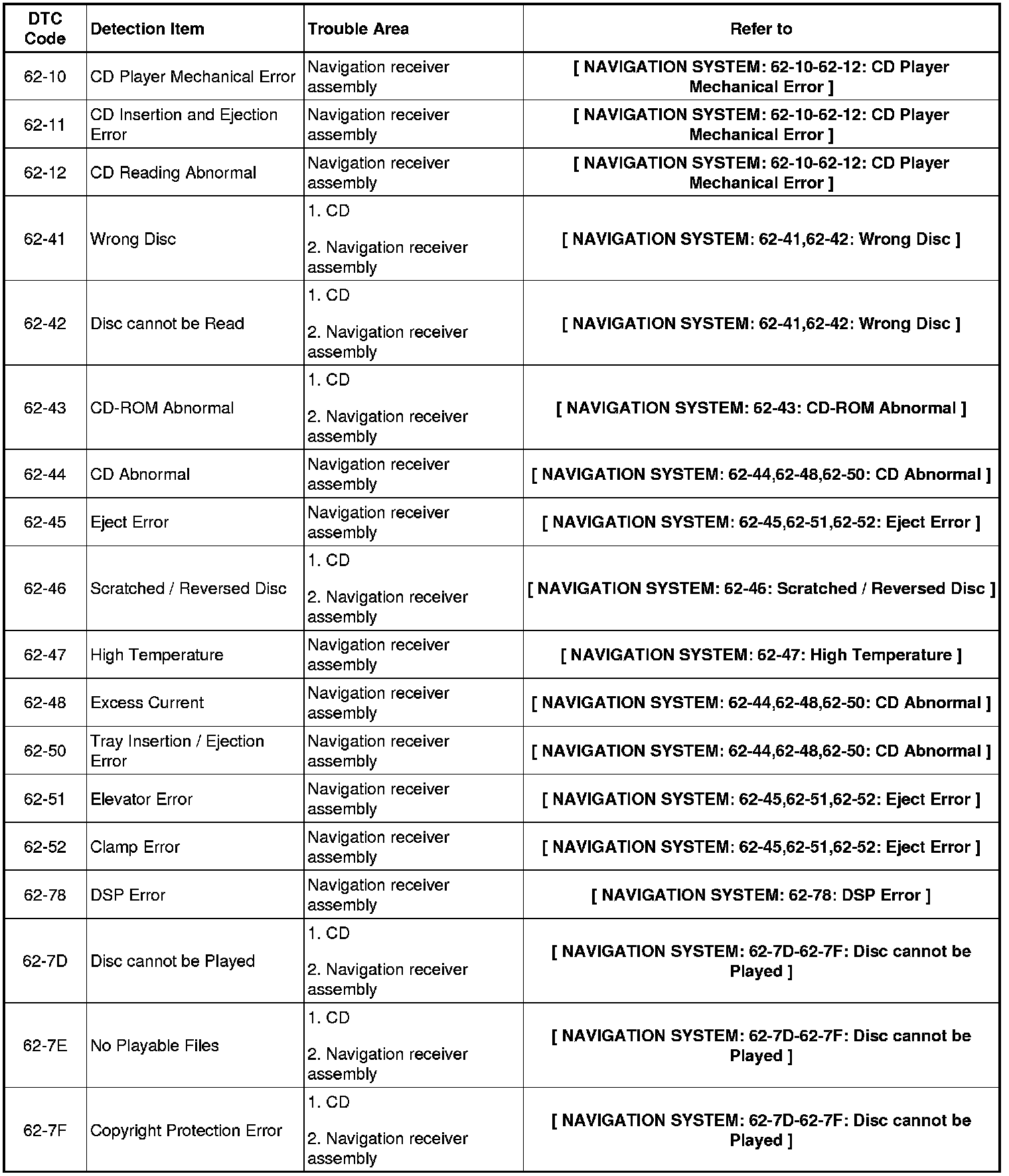

62-10 - 62-7F:
GPS
