Power Steering System

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM (for 2ZR-FE): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If any DTCs are displayed during the DTC check, inspect the circuit listed for those DTCs.

Power Steering System

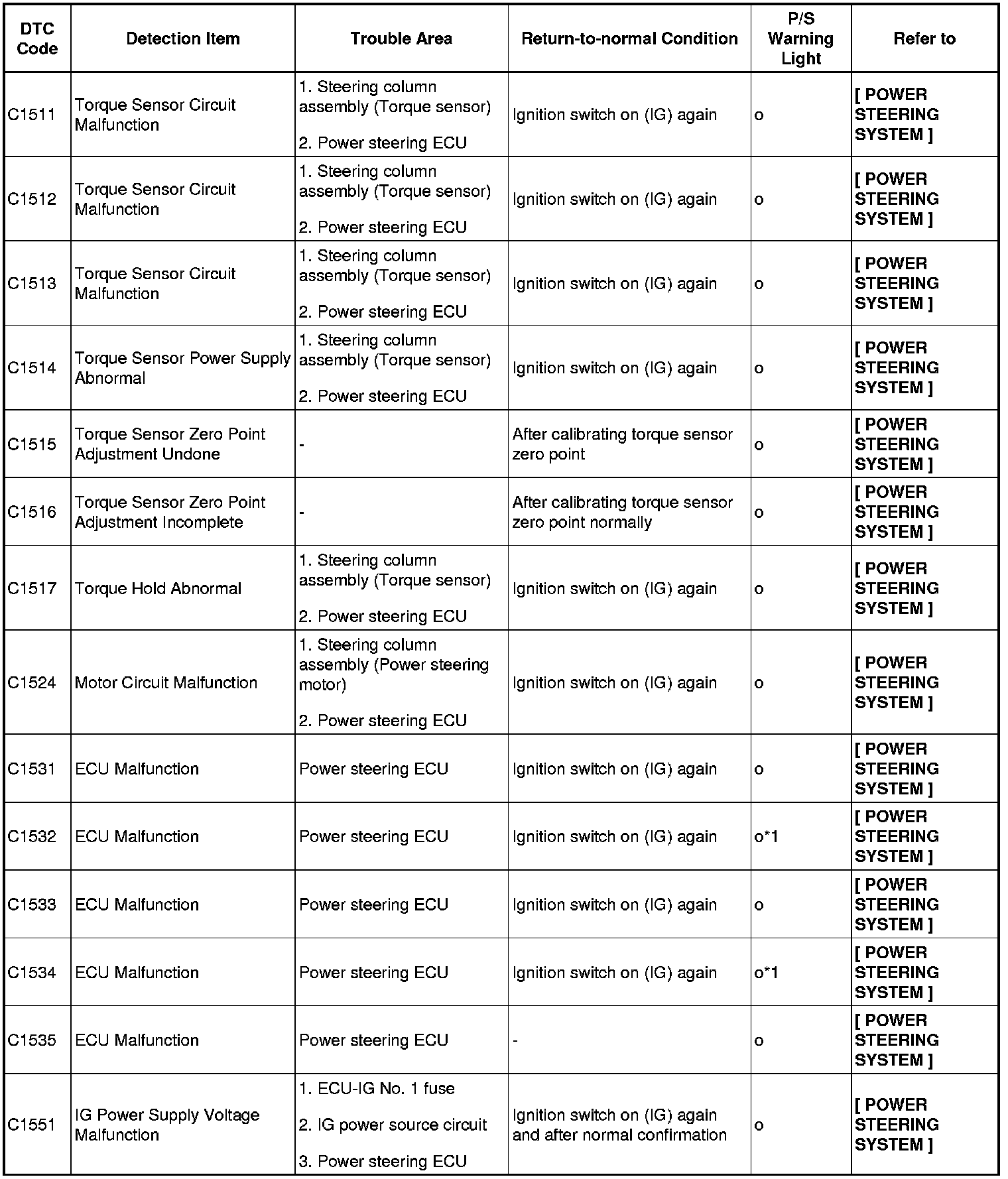

C1511 - C1651:

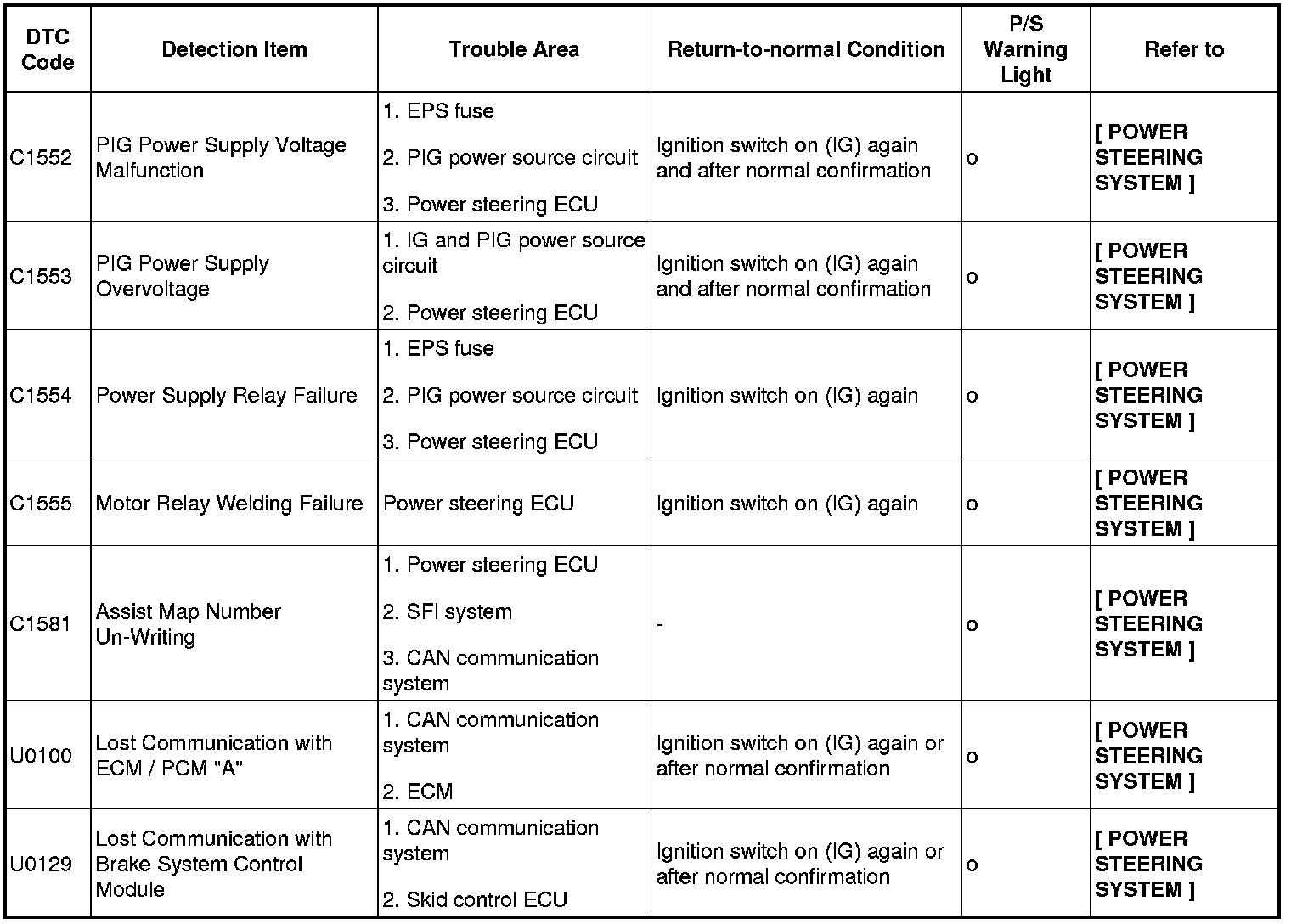

C1552 - C1581 / U0100 - U0129:

o: Warning light comes on
*1: Depending on some detection conditions, there is a case that the warning light does not come on.
