THEFT DETERRENT / KEYLESS ENTRY: SMART KEY SYSTEM (for Start Function): DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
Smart Key System

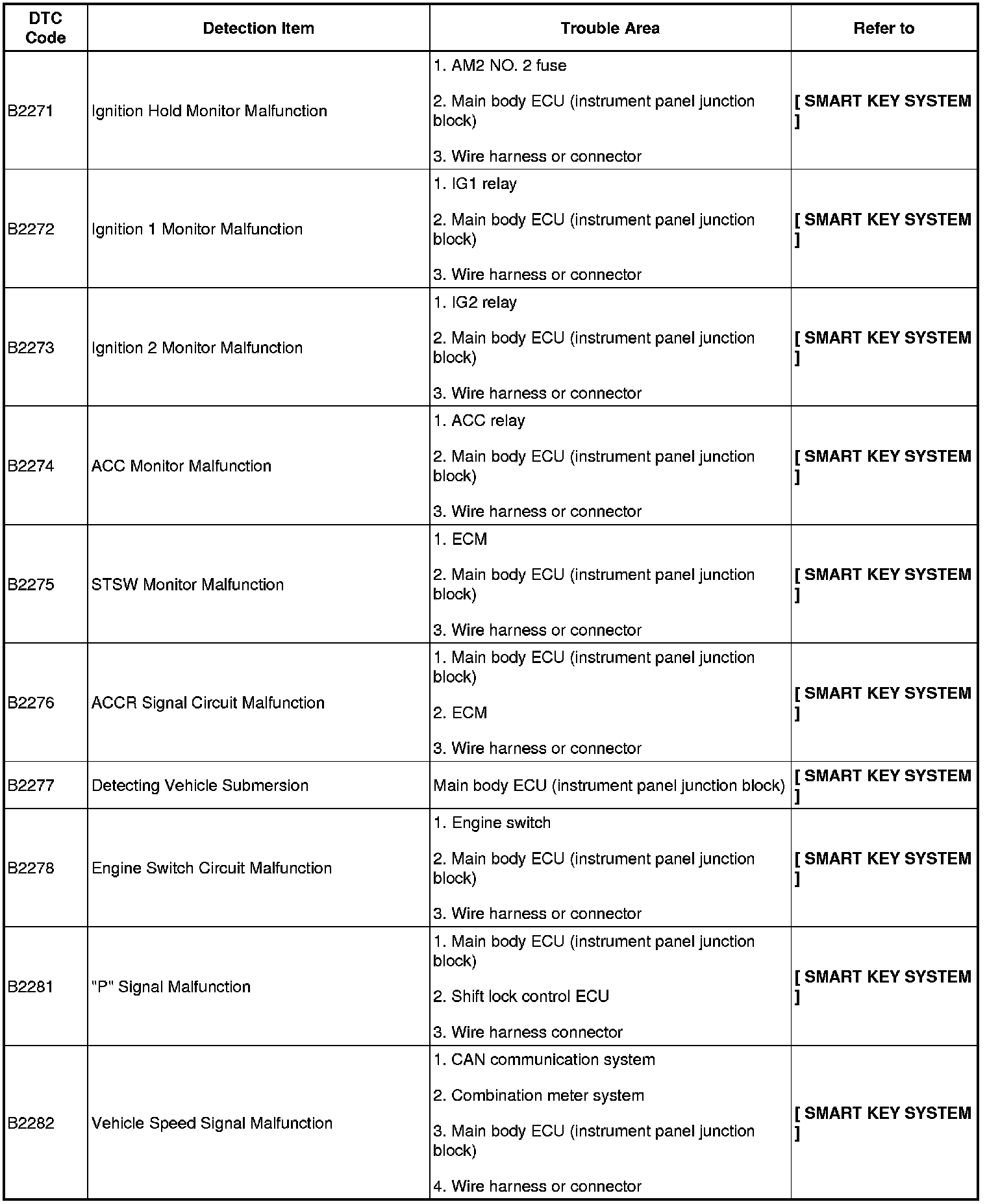

B2271 - B2282:

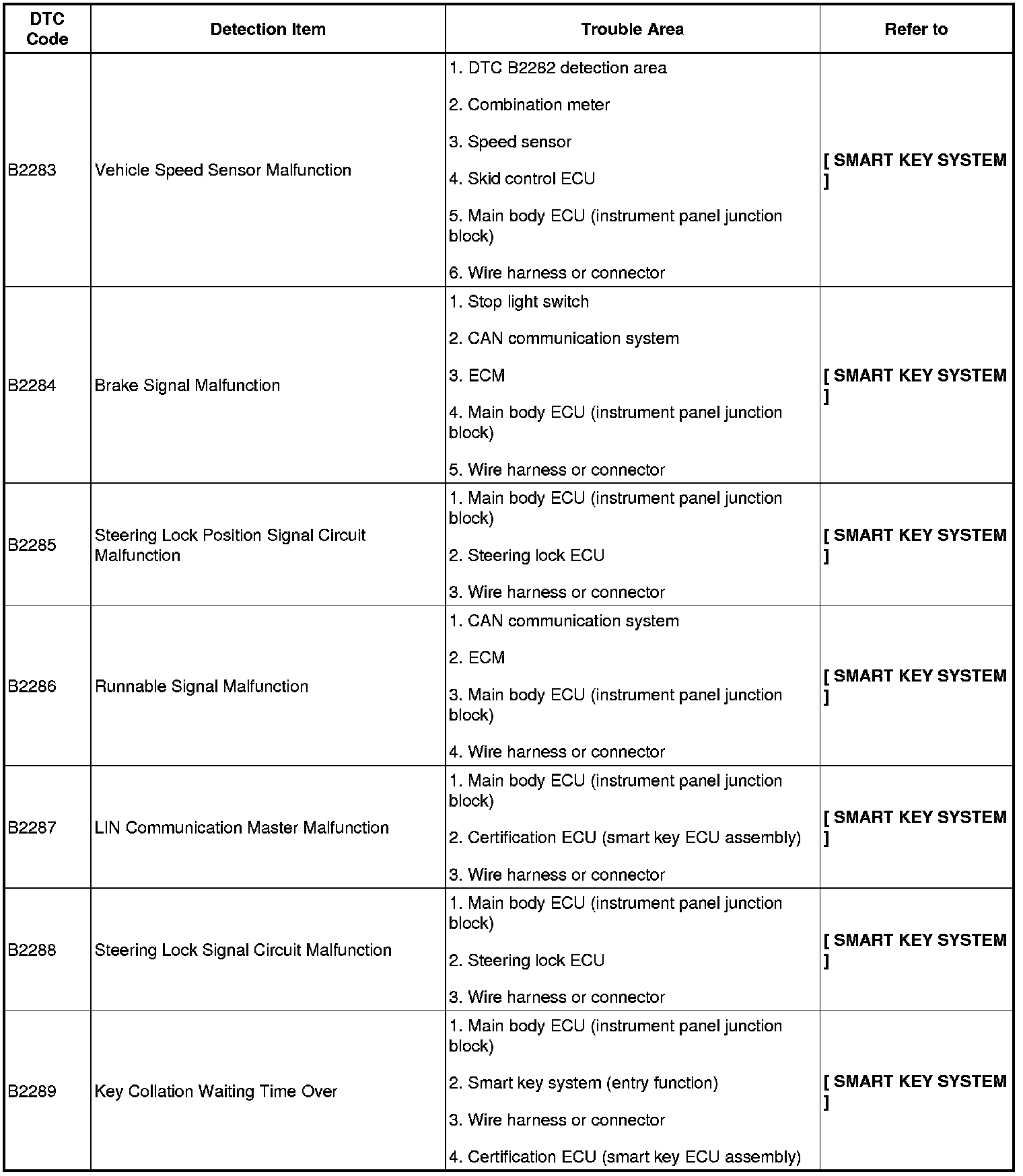

B2283 - B2289:
